Unlock Premium Finishes: Introducing the Hotronix® Power Platen™

For decorators chasing premium results, the Power Platen™ solves a long-standing problem—how to apply raised designs without flattening them. By introducing bottom heat, the adhesive activates from beneath while the top gently seals.

With this dual heating system, your logo bonds deeper into fabric fibers—ideal for advanced embellishments that need precision. Install it once, and your compatible Hotronix® or Stahls’® press becomes a powerhouse for dimensional work.

Removing the lower platen from the heat press.
The quick-change lever makes platen swaps effortless.
💡 Always connect the platen’s controller to its own 20 Amp circuit for stable power.)

Getting Started: What You’ll Need

Every pro finish begins with the right gear.

  • Compatible presses: Auto Clam, Air Fusion, Dual Air Fusion, or MAXX® Clam—all support the interchangeable quick-change system.
  • Accessories: Foam Cover Pad (available in multiple thicknesses) and thermal tape for alignment.

    • - Workspace: Set up on a Heat Press Caddy™ Stand to comfortably swap platens.

Installing a 6x6 Power Platen™.
A compact 6x6 size suits most dimensional logos.
⚠️ The controller draws its own power; plugging it into a shared outlet can cause failure.
Attaching the controller to the press stand.
Mount the independent controller for easy access.

If you want dependable hold, Stahls recommends their CAD-CUT® Adhesive backing for patches—making them easy to press and machine washable.

Connecting the power cable to the controller.
Ensure the locking ring secures the cable connection.

(Comment insight: Enthusiasts confirmed that CAD-CUT adhesives hold up well for washable use.)

This precision approach mirrors the best practices used with magnetic embroidery hoops—where consistent pressure and position make or break a result.

Step 1: Quick & Easy Installation

Start by removing the standard lower platen: unlock the lever, slide out the platen, and set it aside.

Powering on the controller.
A digital display confirms the controller is active.

Then drop the new Power Platen™ into place and secure the lever.

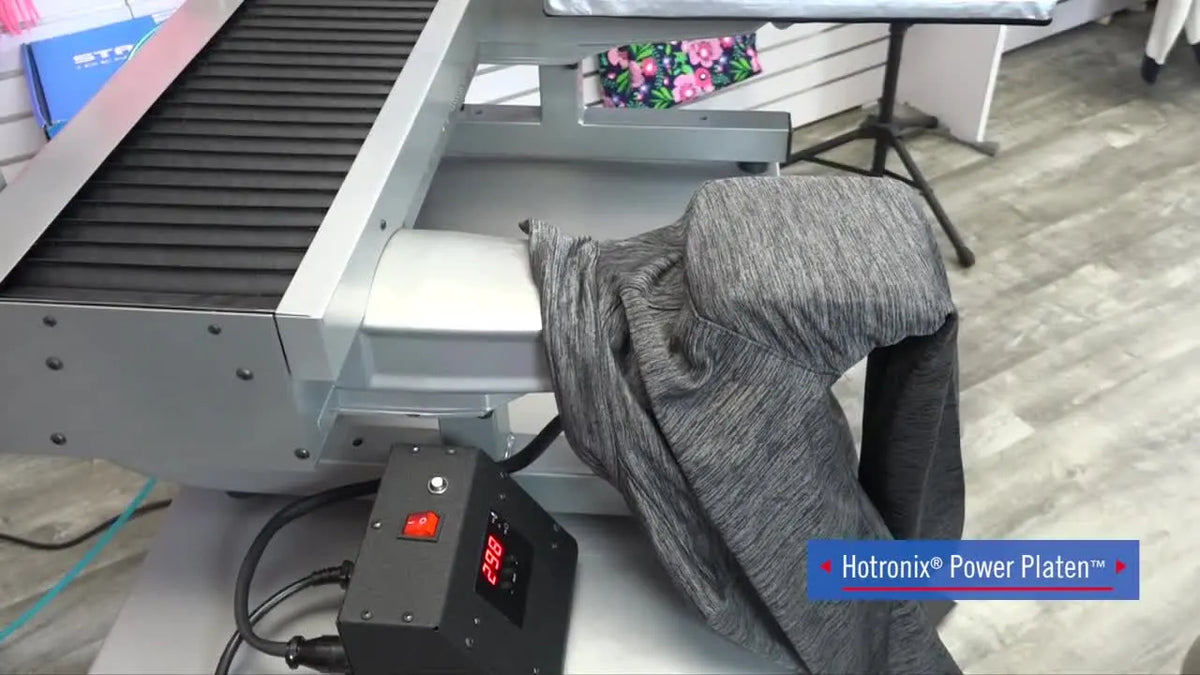

Threading a jacket onto the platen.
Load only a single garment layer for best results.

Mount the controller to your stand, connect the power cable, and flip the red switch. The digital display lights up as the unit warms.

Taping an embroidered patch to the garment.
Thermal tape keeps the patch secure before pressing.
✅ Once powered, confirm all cables are tight and no parts overheat. Secure connections prevent inconsistent heating.

(Safety note: surfaces get hot—use heat-resistant gloves if adjusting spans.)

The installation mirrors the plug-and-press simplicity found in modular tools like magnetic embroidery hoop systems—quick swaps, steady precision.

Step 2: The Perfect Application – Embroidered Patches

After preheating both top and bottom platens (280°F top / 320°F bottom), tape your patch precisely before loading.

Placing a foam pad over the patch.
A Foam Cover Pad protects the texture.

Using thermal tape on a flat table saves time and ensures crisp alignment.

💡 STAHLS’ experts advise prepping off-press. It avoids shift during threading. Their placement guide and Thermo Tape tool make repeat setups easy.

Thread the garment over the platen so only the target layer sits between plates.

Press closing over garment.
Apply 280°F top, 320°F bottom for 20 seconds at medium pressure.

Place a Foam Cover Pad on top to protect raised stitching and lock down the press for 20 seconds under medium pressure.

From the comments we learned that foam pads come in three standard thicknesses—1/8", 1/4", and 3/8"—offering flexibility based on logo height. Once cooled, peel tape and admire the texture.

Close-up of a Flexstyle™ emblem.
Flexstyle™ emblems offer metallic and textured finishes.

For decorators familiar with embroidery setups, this layering step gives similar satisfaction to hooping with magnetic hoops for embroidery machines, delivering alignment that feels professional with half the hassle.

Step 3: Elevating Your Brand with Flexstyle™

Flexstyle™ emblems show what’s possible when texture meets polish. These domed, metallic, or matte-finished badges turn garments into retail-grade pieces.

Flexstyle™ emblem ready for pressing.
Set up mirrors the embroidered patch process.

The pressing method mirrors patches exactly: load, split layers, cover with foam, and heat both sides.

Removing thermal tape from a cooled application.
Peel tape after cooling for a clean edge.

After cooling, lift the carrier film and reveal a smooth, embossed finish that grabs the light.

Peeling carrier from Flexstyle™ emblem.
Cold peel reveals a flawless bond.
✅ Verify all edges adhere evenly—unsealed corners can peel later.)

Pairing dimensional media with controlled bottom heat offers boutique quality beyond standard vinyl designs. Advanced embroiderers who've embraced magnetic embroidery frame accessories will recognize the same precision difference this technology provides.

Grow Your Business with High-Value Decorated Apparel

This simple platen swap opens premium markets—from corporate polos to luxury streetwear. Selling dimensional logos adds revenue without adding complexity: same press, smarter setup.

Consider promoting these as elevated finishes—a service upgrade worth a higher price tag.

Jacket with two finished dimensional logos.
Final result: both embroidered and Flexstyle™ logos applied perfectly.

Explore complementary techniques too. If you already run embroidery, combining heat-applied patches with custom stitched graphics can diversify offerings. Many professionals use magnetic embroidery hoops or snap hoop monster for brother when stitching thick emblems before pressing them on finished apparel.

When balancing diverse jobs—embroidery, vinyl, or heat transfers—the Power Platen™ acts like a bridge technology enabling multi-media creativity.

> From the comments: One viewer asked how to keep logos aligned; STAHLS’ directed them to their design size and placement e-book. Another needed Celsius temps—Google converters solve that in seconds.

Final Thoughts

The Hotronix® Power Platen™ proves that thoughtful engineering—dual-zone heating and modular hardware—can transform a standard heat press into a professional-grade workstation. Whether you’re applying classic embroidered patches, luxe Flexstyle™ emblems, or experimental textures, bottom heat unlocks consistency and confidence.

Integrate it into your shop and you’ll wonder how you ever managed without it.
