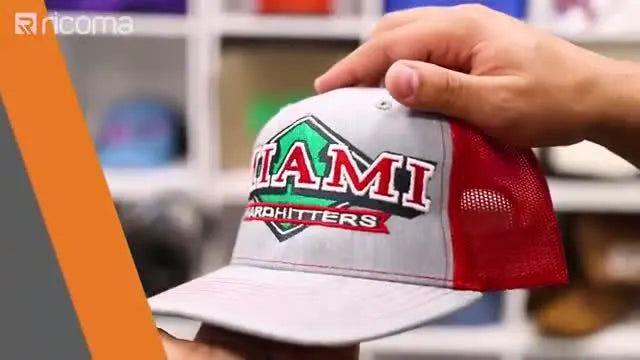

This comprehensive guide summarizes Embroidery Hub Ep. 20 by Ricoma Embroidery Machines, explaining how to embroider both the front and mesh side of a trucker cap in a single run—no re-hooping needed. It breaks down material setup, machine programming, and profit insights while highlighting real viewer questions and practical advice gathered from the community.
Table of Contents
- Why Embroidering on Mesh is a Hot Trend
- Essential Materials and Tools You'll Need
- The One-Run Hooping Trick for Front and Side Embroidery
- Machine Setup: Programming the Perfect Stitch-Out
- The Embroidery Process: From First Stitch to Last
- Breaking Down the Profit Potential
- From the Comments: Answers to Common Viewer Questions
Why Embroidering on Mesh is a Hot Trend
Personalized trucker caps are steering the embroidery world. Mesh panels offer breathability—and a unique challenge: getting stitches to sit neatly despite the open weave.
Standing Out from the Competition
Adding embroidery to mesh sides lets decorators showcase flair where others stop. It’s also a perfect testing ground for machine flexibility.
Adding Premium Value to Your Products
One run instead of two means faster production and steadier profit. Combined front-and-side logos give the impression of fully custom merchandise while saving hooping time.
For embroiderers comparing machine accessories, magnetic hoop systems like magnetic embroidery hoops for ricoma are great add-ons to stabilize caps during stitching.
Essential Materials and Tools You'll Need
Gather the right materials before you start. The tutorial used a Richardson 112 trucker cap, three sheets of tear-away stabilizer, and a water-soluble topping grade suited for mesh.
Choosing the Right Cap: The Richardson 112
The instructor chose a structured, mid-profile Richardson 112 for its reliable crown and mesh flexibility.
Stabilizers vs. Toppings: What to Use for Mesh
Three sheets of 2–3 oz tear-away stabilizer provide firm backing that remains easy to rip away later. Over the mesh section, use a water-soluble topping like Aqua Top Topping to stop thread from sinking.
If your workshop also handles other machine types, consider cross-compatible support hoops like magnetic hoops for embroidery machines, helpful when switching between different cap attachments.
Needles, Threads, and Other Accessories
Use 75/11 sharp point needles with 40-weight thread for crisp results. Binder clips, pins, and a regular cap hoop are simple but vital accessories.
The One-Run Hooping Trick for Front and Side Embroidery
This method’s cleverness lies in how the stabilizer is positioned and how the side panel remains taut.
Step-by-Step Hooping Guide
Insert the hoop into a hooping station, load stabilizer sheets, and slide them slightly toward the mesh side. Secure the cap by flipping the sweatband forward and clamping evenly.
Positioning Your Stabilizer for Success
By offsetting the stabilizer, both the front and the side rest on well-supported backing when stitched.
Skipping this trick leads to slack and distortion.
A proper hoop grip resembles modern designs like magnetic embroidery frames, which hold materials tightly with minimal shifting.
Ensuring a Smooth, Flat Mesh Surface
Stretch the mesh lightly and secure it with binder clips so it’s perfectly taut. This prevents motion when the machine turns the cap between front and side embroidery.
Machine Setup: Programming the Perfect Stitch-Out
The Ricoma MT-1501’s flexibility allows easy control of both panels in one program. The key is adding a color stop to activate the frame-out function.
Loading and Positioning Your Combined Design
Use embroidery software to load a file containing both logos spaced appropriately. Then select the cap hoop setting on the control panel, aligning with your physical hoop’s dimensions.
Need inspiration for managing multi-hoop projects? Duet systems like dime snap hoop illustrate how quick swapping can maintain precision in complex, multi-panel runs.
Using the 'Frame Out' Function for a Seamless Process
Before starting the side design, enable 'Frame Out' on the machine’s interface. When the first sequence ends, the frame moves forward automatically, letting you place topping easily.
Final Checks: Tracing Your Design
Always trace to ensure clearances on both panels. The Ricoma machine’s 270-degree cap rotation makes seamless transition possible between surfaces.
The Embroidery Process: From First Stitch to Last
With setup complete, you’re ready for showtime. Set the machine speed to around 800 stitches per minute and start with the front logo.
Stitching the Front Panel
The MT-1501 will complete the front quickly, then stop as programmed. You’ll hear a pause—your cue to apply the topping.
Applying the Water-Soluble Topping
Lay Aqua Top Topping or a similar water-soluble sheet over the mesh. Pin it gently but tightly.
Larger magnetic support systems, like magnetic embroidery hoop embroidery, can keep tricky materials steady when doing production runs on varied cap types.
Completing the Side Mesh Embroidery
Restart the machine to resume the run; it stitches right through the topping. When finished, remove the topping and stabilizer to reveal unified artwork that crosses panels seamlessly.
Once complete, tear the stabilizer and topping away gently. Water helps dissolve minor residue.
Breaking Down the Profit Potential
In the tutorial’s example, adding mesh-side customization helps upsell each hat by about $5. A completed two-panel piece can retail between $25–$30 depending on bulk pricing and client base.
Consider the added efficiency of techniques like this: fewer hoopings mean less machine downtime.
From the Comments: Answers to Common Viewer Questions
1. What topping should be used on mesh? Ricoma confirmed water-soluble topping, such as Aqua Top Topping or Madeira Badge film.
2. What weight stabilizer works best? Two to three ounces of tear-away backing is enough for structured caps.
3. Can frame-out be used with caps? Yes. Contrary to older training advice, it works as long as you program it correctly.
4. How do I stop needle breaks? Ensure the mesh is fully tightened, and check needle tension frequently. Fine-tune like you would when switching between magnetic hoop configurations across different machines.
5. Any thread recommendations? Polyester threads from Isacord or Madeira resist breakage better than rayon and handle mesh stitching cleanly.
Pro Tip
Create a bundled production workflow: while one hat runs on the MT-1501, prep the next cap. Time saved per project can be reinvested into digitizing or sales.
Quick Check
Always trace your design before running! Frame collisions are preventable with strict oversight.
Watch Out
Don’t stretch mesh too tightly—it can warp the panel and misalign the side logo.
Master this one-run method, and your next trucker cap line will look cleaner, faster, and more profitable—proving that even simple materials can look high-end when stitched smartly.
