Master Hat Embroidery: The HoopTech Gen 2 Guide for Brother & Baby Lock Machines

This in-depth guide translates the step-by-step process shown in the video “A Complete Guide to Using the HoopTech Gen 2 Hat Hoop on a Brother/Baby Lock 10-Needle Machine” into an easy-to-follow written reference. Whether you're embroidering structured trucker caps or unstructured floppy hats, you’ll learn how to set up the HoopTech Gen 2 system, use the override clip, rotate your design correctly, and leverage your machine’s live camera feature for pixel-perfect hat embroidery.

Educational commentary only. This page is an educational study note and commentary on the original creator’s work. All rights remain with the original creator; no re-upload or redistribution.

Please watch the original video on the creator’s channel and subscribe to support more tutorials—your one click helps fund clearer step-by-step demos, better camera angles, and real-world tests. Tap the Subscribe button below to cheer them on.

If you are the creator and would like us to adjust, add sources, or remove any part of this summary, please reach out via the site’s contact form and we’ll respond promptly.

Table of Contents
  1. What's in the Box: Unpacking Your HoopTech Gen 2
  2. Step 1: Setting Up the Hooping Station
  3. Step 2: The Perfect Hoop - Structured vs. Unstructured Hats
  4. Step 3: Preparing Your Brother/Baby Lock Machine
  5. Step 4: Digital Setup and Precise Placement
  6. Step 5: Final Checks Before You Sew
  7. From the Comments: Common Questions Answered

What's in the Box: Unpacking Your HoopTech Gen 2

Each kit arrives with two primary pieces: the Gen 2 frame itself and the override clip.

Presenter holding the HoopTech Gen 2 hat hoop.
Meet the HoopTech Gen 2 hat hoop, the sturdy frame at the heart of this setup.

Both are metal, well-built, and designed for long-term alignment accuracy. The override clip seems tiny but makes it possible for the machine to treat the driver as a flat hoop—essential to achieving close-to-bill stitching.

Close-up of override clip in hand.
This small override clip is critical for tricking the machine’s sensor.

The Gen 2 Hoop Frame

The HoopTech Gen 2 hat hoop’s double-arm frame slides neatly into matching slots on the hooping station. It’s solid enough to hold structured trucker caps yet precise enough for floppy unstructured ones.

The Essential Override Clip

While minute, this silver piece prevents the machine from auto-detecting the standard hat preset. Instead, it lets you unlock a wider field, helping you embroider slightly lower toward the brim.

If you invest in only one add-on, make it the T-Bar station

T-bar hooping station on workbench.
The T-bar hooping station stabilizes hats during hooping.

. It’s built like a levered mini-press that stretches the front panel of the cap smooth. Without it, hooping can feel like a wrestling match.

Step 1: Setting Up the Hooping Station

Mounting the Hoop on the T-Bar Station

Place the HoopTech Gen 2 hat hoop onto the T-bar base, aligning the locking slots

Placing the hat hoop onto the T-bar station.
Align and seat the metal hoop on the T-bar station.

. Push it down until it’s seated evenly on both sides — the goal is level contact with no wobble.

Securing the Stabilizer for a Wrinkle-Free Finish

Lay a precut stabilizer sheet and slip the edges beneath the metal clips until the surface feels drum-tight

Securing stabilizer under clips.
Slide the stabilizer into clips so it stays taut.

. Proper tension here prevents puckering later. Beginners using hooping station for brother embroidery machine models will appreciate the simplicity.

💡 keep spare stabilizer sheets nearby. Switching hats is faster when the next one’s already pre-cut.

Step 2: The Perfect Hoop – Structured vs. Unstructured Hats

Hooping a Floppy, Unstructured Hat

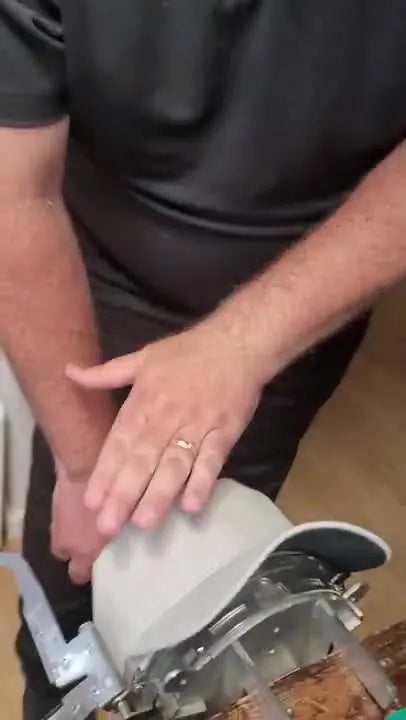

Pull the sweatband and internal seams up and away. Slide the cap onto the station so the front panel lies smoothly. Reach under, lift the T-bar, position the hat beneath it, and pull the bar down firmly

Pulling down the T-bar lever on unstructured hat.
Pull the lever to stretch the unstructured hat smooth.

. The front fabric tightens like a drumhead.

Hooping a Stiff, Structured Hat

Repeat the process with a trucker-style cap to show the system’s range

Hooped unstructured hat held up.
A neatly hooped unstructured hat, smooth and centered.

. Structured fronts stretch evenly when the lever locks.

Hooped structured trucker hat.
Structured hats stay taut too, using the same method.
✅ Run a finger across the front—if you feel ripples, re-seat the hat before locking.
⚠️ Never force the lever if resistance feels extreme; check that the hat seam clears the clamp path.

Step 3: Preparing Your Brother/Baby Lock Machine

Removing the Standard Flat Hoop Arm

Uninstall the flat A or B arm by loosening two thumbscrews and lifting straight up

Removing flat embroidery arm.
Take off the standard flat arm before installing the hat driver.

. This clears the field for the hat driver. Users of brother embroidery machine systems will recognize the mounting process.

Choosing the Correct Driver: Wide vs. Flat Brim

The HoopTech Gen 2 requires the wide hat hoop driver—compare the two side-by-side to avoid confusion

Comparing wide and flat brim hat assemblies.
Always use the wide hat driver (left) with the Gen 2 system.

. The smaller flat-brim version won’t fit correctly.

Installing the Wide Hat Hoop Driver and Override Clip

Slide the wide driver onto the carriage rails and line up the screw holes

Tightening the bottom screws on hat driver.
Secure bottom screws snugly—but don’t overtighten.

. Insert the override clip over the sensor post before tightening screws. Snug everything using the provided wrench but don’t overtighten

Installing the override clip on the sensor post.
Place the override clip onto the machine’s sensor post.

.

💡 Keep track of the override clip; without it, the system reverts to flat-hoop settings.

Step 4: Digital Setup and Precise Placement

The Crucial 180-Degree Design Rotation

After the mechanical install, load your design and rotate it 180 degrees on-screen

Rotating design on touchscreen 180 degrees.
Rotate your design 180 degrees before stitching.

. This step prevents upside-down stitching because the override clip changes orientation recognition.

✅ On your touchscreen preview, the design should appear inverted at this stage. Users of brother pr1055x or similar 10-needle models perform this within the “Edit” → “Rotate” menu.

Using the Live Camera for Perfect Centering

Mount the hooped hat onto the driver until it clicks

Mounting the hooped hat onto the driver.
Snap the hooped hat into the driver’s rollers.

. Activate the live camera, move the needle icon using arrow keys, and match it to the hat’s center seam

Aligning design center via live camera.
Use live camera and arrow keys for accurate centering.

. The overlay on-screen ensures proper alignment across curved surfaces.

If your machine lacks real-time view, its scanning camera still gives usable outlines. The Enterprise variant, for example, provides a static stitch field rather than active tracking—a difference noted by commenters.

Measuring and Setting the Distance from the Bill

Lay a thin tape measure along the hat front while viewing through the camera

Measuring embroidery distance using live camera.
Ensure the design sits about 3/4 inch from the bill.

. Adjust until the design’s lowest points sit around 3⁄4 inch from the bill. Attempting less may cause the hat to lift at the back.

Here’s where community experience shines: shifting the design slightly higher often cures pulling or roller pop-outs. As one user phrased it—“move it up just a notch and everything aligns.”

To keep second caps consistent, record the X- and Y-offsets in your machine’s memory. Owners using brother pr1050x hoops find this method saves re-measuring later.

Step 5: Final Checks Before You Sew

Perform a boundary trace to ensure the needle clears the brim edge. Watch for the driver movement; any scraping means the design sits too low. Tighten the bottom screws once more to secure stability, but always within gentle torque limits.

With tension balanced, you’re ready to start embroidering hats that look retail-ready. Even detailed logos stay crisp thanks to minimal flex from the tight front panel.

From the comments: Several embroiderers report success after adding a short power-cycle before embroidery so the machine re-centers automatically—a simple yet effective troubleshooting step.

From the Comments: Common Questions Answered

Why use the override clip? It bypasses the preset sensor and grants an extended embroidery field, allowing stitching nearer the bill. How close can I get? Roughly three-quarters of an inch is typical. Trying closer can cause collisions. Is the T-bar station optional? Yes, but skipping it makes hooping slower. Many pros call it the “magic” that makes Gen 2 shine. Does this work on both Brother and Baby Lock? Absolutely—methods are identical, only model labels differ. Users swapping between babylock hoops and their Brother 10-needle setups will feel right at home. * Any tips for structured caps? Keep the sweatband lifted and apply firm downward pressure with the T-bar to eliminate gaps. It prevents tilt in final stitching.

Wrap-Up

The HoopTech Gen 2 system bridges professional capability and user-friendly setup. With measured stability, design rotation control, and the visual precision of live camera positioning, you can achieve factory-level hat embroidery from your own studio. Whether you operate a hat hoop for brother embroidery machine or a baby lock magnetic hoop, the same logic applies: tension, alignment, and clear sight make all the difference.

If you’re expanding your toolkit, consider upgrading to magnetic embroidery hoops for brother embroidery machines or pairing with magnetic embroidery hoops for brother pr1055x to handle thicker materials without distortion. Each accessory layers new options onto your embroidery workflow, especially when combined with solid hooping technique as shown here.

Happy stitching!
