Quick Fix for the Bernina Gear Symbol Error (Main Drive Sync)
A complete hands-on guide to clearing the Bernina 'gear symbol'—also known as the main drive sync error—by properly removing, cleaning, and reinstalling the B9 hook. Based entirely on a step-by-step tutorial video, this post translates every key action into clear, confidence-boosting instructions for sewists of all levels.

Educational commentary only. This page is an educational study note and commentary on the original creator’s work. All rights remain with the original creator; no re-upload or redistribution.

Please watch the original video on the creator’s channel and subscribe to support more tutorials—your one click helps fund clearer step-by-step demos, better camera angles, and real-world tests. Tap the Subscribe button below to cheer them on.

If you are the creator and would like us to adjust, add sources, or remove any part of this summary, please reach out via the site’s contact form and we’ll respond promptly.

Table of Contents
  1. What is the Bernina 'Gear Symbol' Error?
  2. Before You Begin: A Quick Diagnostic Check
  3. Step 1: Accessing the B9 Hook Mechanism
  4. Step 2: Removing and Cleaning the Hook
  5. Step 3: The Secret to Reinstallation - The 6 O'Clock Alignment
  6. Step 4: Reinstalling the Hook and Reassembly
  7. Step 5: The Moment of Truth - Testing Your Machine
  8. From the Comments

What is the Bernina 'Gear Symbol' Error?

When your Bernina screen shows two small gears and disables stitching, it’s signaling a “main drive sync error.”

A hand opens the bobbin case door on the front of a white Bernina sewing machine.
Begin by opening the bobbin case door to gain access to the machine's hook area.

Essentially, the internal timing between the motor and hook system has been interrupted—usually by a minor thread jam or a hook seated slightly off position.

Understanding the Main Drive Sync Error

This error stops the machine from operating until you resolve the mechanical mismatch. Because most Bernina 4, 5, and 7 Series units share the B9 hook setup and jumbo bobbin, the procedure applies broadly. Even users of advanced systems pairing embroidery attachments like bernina magnetic embroidery hoop will benefit from a smooth, jam-free hook mechanism.

Common Causes of the Error

Most jams trace back to tangled thread near the hook race, or to failure to align the hook’s cutout with the painted marker at reassembly. Less often, forcing the handwheel or debris buildup under the hook area can trigger the same warning.

Before You Begin: A Quick Diagnostic Check

Power down the machine and open your workspace in good light. Remove any fabric or presser foot obstacles. Turn the handwheel toward you. If it moves smoothly, proceed. If it resists or locks, that’s a signal to stop and consult a Bernina technician. Professionals might even use accessories such as bernina snap hoop during diagnostic stitching.

⚠️ never rotate the wheel away from you; this is a common cause of needle–hook desynchronization.
A hand removes the black bobbin case from the sewing machine's hook area.
Take out the bobbin case to fully expose the hook mechanism underneath.

Step 1: Accessing the B9 Hook Mechanism

Open the bobbin door on the free arm and slide out the bobbin case.

A thumb presses a silver latch to the left inside the sewing machine's bobbin area.
Press the silver latch to the left and pull it down to release the hook's race cover.

This exposes the black race cover holding the hook assembly. Using this straightforward access method prepares you for deeper cleaning common to both quilting and embroidery maintenance sessions that may also involve your bernina magnetic hoop sizes.

Opening the Bobbin Door

Gently swing the front door open; you’ll feel it hinge downward.

Removing the Bobbin Case

Pull the case straight out, catching the handle at the top edge.

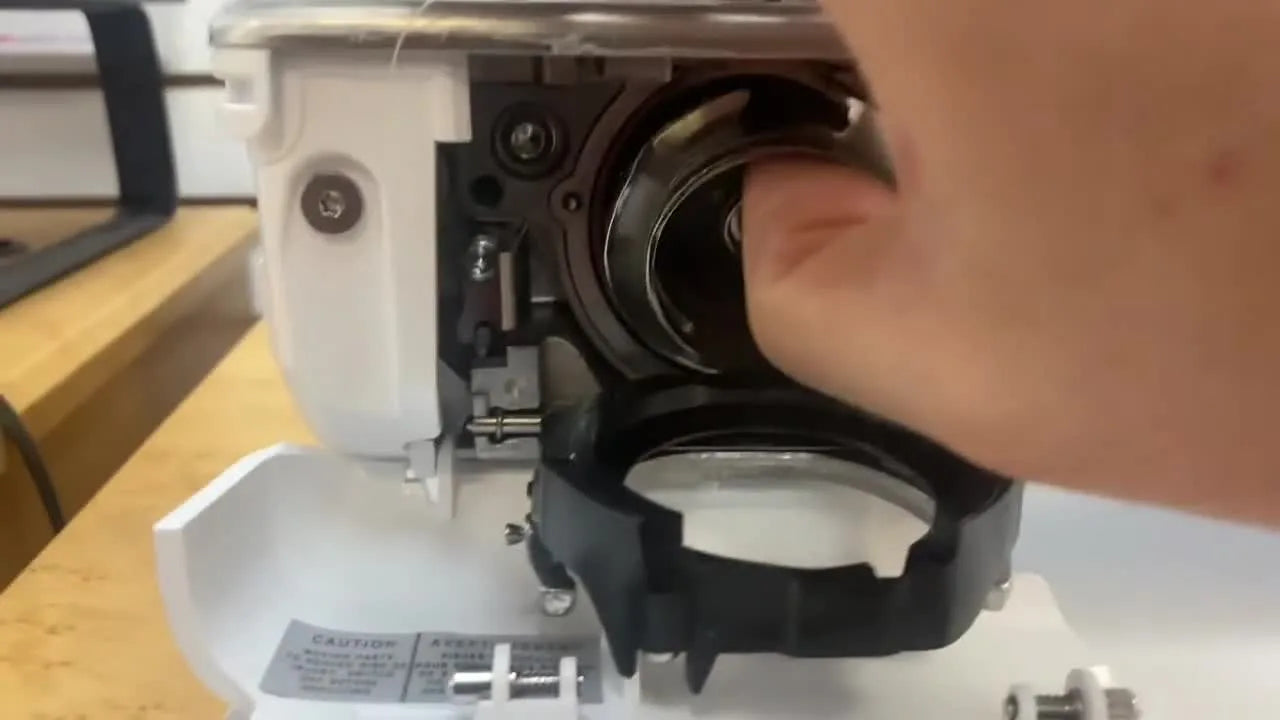

A hand pulls the metallic hook assembly straight out of the sewing machine.
Grasp the center of the hook and pull it directly out of the machine.

Take a moment here to note orientation for reassembly later.

💡 store your bobbin case on a clean cloth nearby to avoid lint contamination.

Step 2: Removing and Cleaning the Hook

Find the small silver latch just left of the hook. Press it left and pull down—the black race cover releases. The hook will now be visible for removal.

A hand turns the large handwheel on the side of the Bernina sewing machine.
After removing the hook, turn the handwheel to check if the machine's mechanism moves freely.

Unlatching the Race Cover

Pull the latch gently; excessive pressure isn’t required.

Inspecting and Cleaning the Hook Area

Carefully withdraw the hook straight out by its center pin. Look for thread fragments or lint bunches. Use the small cleaning brush included with the machine—viewers agreed it works better than canned air.

Cleaning lint from the hook race using a brush.
Gently remove any lint or thread using a small brush.

From the comments: one helpful suggestion warned against using compressed air, since it can push lint deeper into unseen gears. Instead, the static brush included with your Bernina toolkit attracts lint safely.

If the handwheel now turns freely, proceed; otherwise, the issue might require service. Consider that your maintenance routine—just like keeping your magnetic hoops for bernina embroidery machines dust-free—extends machine life.

Step 3: The Secret to Reinstallation – The 6 O’Clock Alignment

This is the heart of the entire repair. Inside the open hook area, locate the small painted dot—it’s either white or red depending on your model.

A finger points to a small painted white circle inside the empty hook race of the sewing machine.
Identify the painted alignment circle inside the hook race.

Finding the Painted Alignment Marker

Turn the handwheel slowly until this dot lines up precisely at the bottom of the race, in the 6 o’clock position.

The painted circle inside the hook race is positioned perfectly at the bottom (6 o'clock position).
Turn the handwheel until the painted circle is precisely at the 6 o'clock position.

Positioning the Hook Race Correctly

This setting ensures your hook will magnetically seat flush with the drive. Misalignment here is the number one reason the gear symbol reappears. Accessories like magnetic embroidery hoops for bernina rely on perfect motion coordination—the same principle applies inside your machine’s timing components.

Step 4: Reinstalling the Hook and Reassembly

Hold the hook in your hand and find the circular cutout on its back. That cutout must align with the painted marker you set at 6 o’clock.

A close-up view of the back of the hook, showing a small circular cutout in the black plastic.
On the back of the hook, locate the circular cutout for alignment.

Gently push the hook in—it should snap into position magnetically.

A hand carefully inserts the hook back into the machine, aligning the bottom part first.
Reinstall the hook by aligning its cutout with the painted circle at 6 o'clock.

Aligning the Hook’s Cutout

Never force the hook. If it doesn’t click, pull it out and realign. The magnet will naturally draw it in once correctly positioned.

Securing the Mechanism

Rotate the handwheel fully; the hook should stay seated.

The reinstalled hook, showing the white painted circle visible through the hook's alignment cutout.
Confirm proper installation by visually checking the painted circle alignment.

Then swing the race cover back up and lock it by pushing the latch rightward.

A thumb pushes the silver latch back to the right, locking the hook race cover in place.
Secure the hook by closing the race cover and locking the latch.

Final Reassembly Steps

Insert the bobbin case—it should click into place—and close the door.

A hand inserts the black bobbin case back into the reassembled hook area.
Reinsert the bobbin case into the machine after securing the hook.
✅ turn the handwheel another full turn to confirm everything spins smoothly. When handled right, your Bernina will feel as fluid as setting up an alignment tool like the dime snap hoop monster bernina for embroidery calibration.

Step 5: The Moment of Truth – Testing Your Machine

Switch on the power. The startup screen should appear without the gear symbol.

The Bernina machine's screen shows the welcome screen, with no gear error symbol visible.
Turn the machine on to verify the gear error is gone.

Slide a test fabric beneath the presser foot and sew several stitches. You’re looking for steady motion and even tension.

The Bernina B740 sewing machine stitching smoothly on a piece of pink fabric.
Perform a test sew to confirm smooth operation.

If the gear icon reappears, reopen and repeat the alignment check—most often, it’s a slight misplacement of the hook cutout.

Result: a smooth-running Bernina, ready for both garment repair and intricate work done under a snap hoop for bernina.

From the Comments

Viewers unanimously praised how approachable this procedure is—many celebrated their “Boom! problem solved” moment after alignment. A frequent win was finally understanding how critical that painted circle at 6 o’clock truly is. Another highlight was the reminder to clean lint manually rather than blast it with air pressure.

A few also noted that tone matters; for some, the casual “boom” narration brought energy, while others preferred a steadier pace. Either way, the consensus: the step-by-step visuals make success nearly guaranteed.

Community takeaway: regular cleaning and gentle handling extend your machine’s life—principles that apply whether you sew free-motion with a magnetic embroidery hoops setup or straight-stitch daily. Consistency wins over complexity every time.
