Introduction: Solving the Dreaded Embroidery Unit Grind
A loud grind at the edge of your embroidery field is the first clue your calibration stop has crumbled. This unobtrusive piece tells the machine where its motion should stop. With it missing, the drive motor keeps pushing—and that striking noise follows.
Replacing it brings back the precise harmony your Viking was built for.
What is a Calibration Stop?
A small molded plastic bumper on the internal cog of the embroidery arm. It signals the limit of movement, protecting both the mechanism and sensor alignment.
Symptoms of a Failed Stop
If your arm stalls, jitters, or can’t find center on power-up, that’s your sign. Some crafters compare the sound to a skipping gear train. Always stop immediately to prevent damage.
Essential Tools and Prep Work

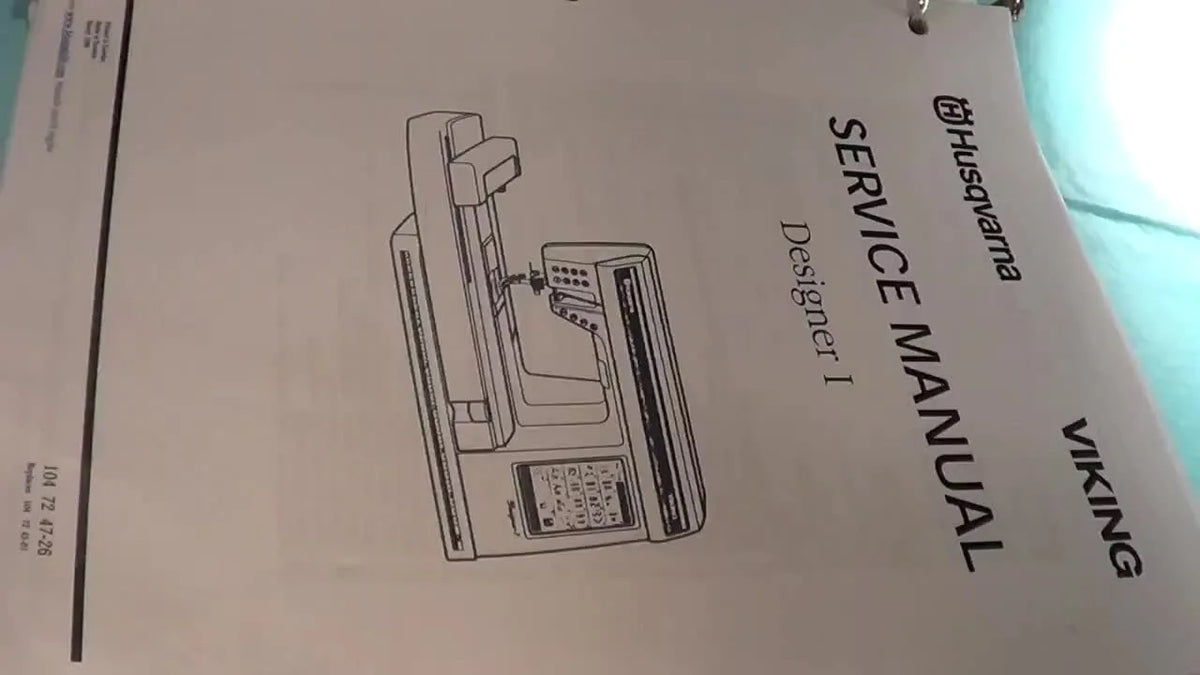

Good lighting and patience go a long way. Set up on a flat, lint-free surface before you begin. You’ll also need your Husqvarna Viking Designer I Service Manual—its Appendix P shows each part’s location.
Have ready: screwdriver, dental pick, and measuring tape. A replacement plastic calibration stop and lock washer are must-haves.
Step 1: Opening the Embroidery Unit
Unplug everything and ensure the sewing machine is off. The back panel hides three screws; remove them carefully. Then pry apart the top cover by releasing small joints along the sides. The cover lifts to reveal the drive motor and belt system.
Step 2: Replacing the Calibration Stop
Inside lies the compact motion assembly controlling hoop travel. Begin by using a dental pick to pop off the firmly seated lock washer without bending it.
Lift the large wheel and tensioned belt off its dowel. Beneath sits the broken remnant of the calibration stop—now just dust.
Slide the new stop down the small cog’s post, pressing until it seats flush at the base.
Finally, stretch the belt back across its wheel and push the wheel down until everything clicks home. Working slowly prevents belt twist or misalignment.
Each of these restoration steps also translates neatly to other brands; for instance, some owners of magnetic hoop for husqvarna viking systems perform similar careful part seating when tuning hoop arms.
Step 3: Manual Calibration for Perfect Centering
Before reassembly, ensure the hoop arm sits exactly mid-way on its track. Measure from each side of the rail to the hoop holder—equal distances confirm alignment; in the video demonstration, about 5½ inches each side was ideal.
Rotate the drive wheel gently until both sides read the same. That re-centers the mechanical “zero” point your machine expects.
Even traditional accessories like husqvarna embroidery hoops rely on this exact calibration for consistent stitching registration.
Step 4: Syncing with the Machine: Electronic Calibration
After the covers snap back on
, slide the unit onto your Designer I with power switched off.
Hold down the Reverse and Pivot buttons while turning the machine on—this opens the hidden service menu.
From there, choose the calibration routine. The machine will sweep the arm, find its edges, and return to center while the screen displays progress.
Listen for steady motion—no clunks, just smooth operation.
Run the cycle twice if you’ve just replaced major mechanical parts, then power-cycle to exit the service mode.
Keeping your unit fine-tuned ensures better results across all your embroidery frames—even those for other ecosystems like janome embroidery machine or brother embroidery machine models, which share similar calibration logic.
Troubleshooting Checks
- Still hearing grinding? Double-verify the stop fully seated on the cog.
- Hoop arm hesitant? A pinched belt may need slight repositioning.
- Uneven centering? Re-measure both sides; tiny differences matter.
Replacing this stop gives your classic Viking another decade of precise stitching. Align your hoop, trust your measurements, and enjoy the hum of a smooth calibration cycle.
For comparative insight, modern systems with magnetic embroidery hoops achieve alignment digitally, but understanding this mechanical process builds invaluable intuition about movement limits.
