RIDGID 300 Complete Threading Machine: Step-by-Step Masterclass

Unboxing Your RIDGID 300: What's Included?

The RIDGID 300 Complete ships complete with the essentials: the 300 Power Drive, the 1206 Stand, the 311 Carriage featuring its 360 Cutter and 341 Reamer, and an 811A Universal Die Head.

Universal die sets (½-¾ in. and 1-2 in.) are included alongside the 418 Oiler, a gallon of thread cutting oil, and the No. 32 Transporter.

Setting up feels like laying out an embroidery station—the kind of care you'd show aligning magnetic embroidery hoops for brother ensures your threading tools match the job.

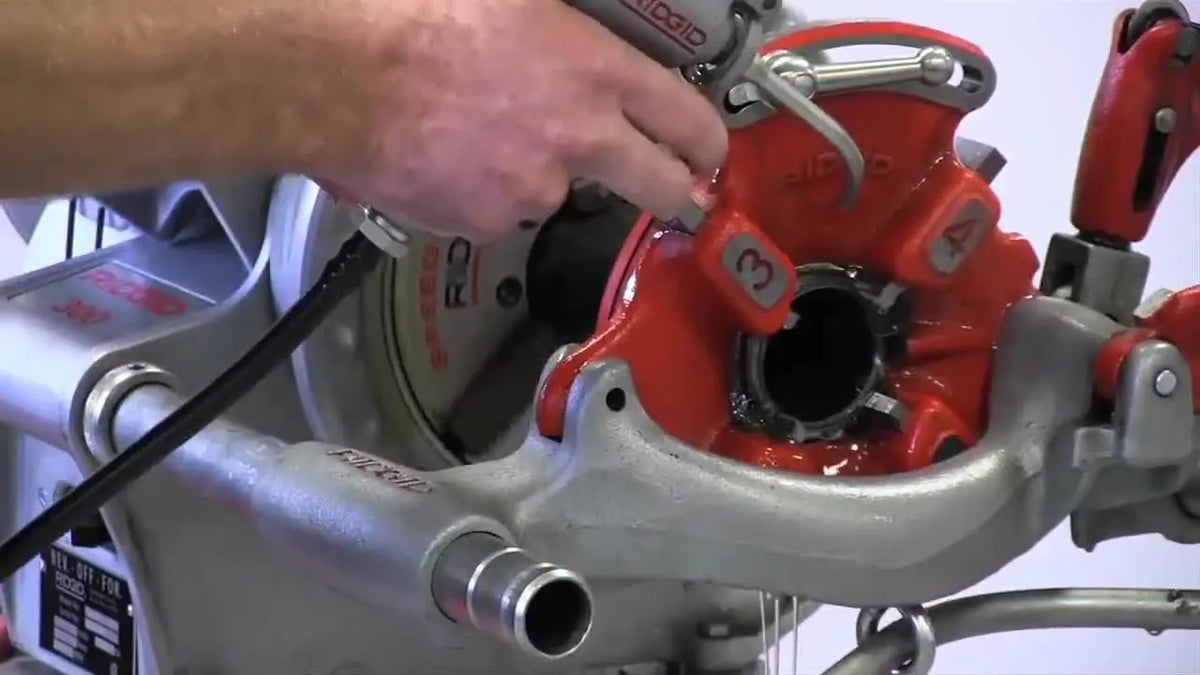

Step 1: Preparing the 811A Die Head

The die head houses four numbered die pockets matching four die segments. To prepare, loosen the clamp lever and hinge away the stop tab.

Slide the throw-out lever to open the die pockets, then match die #1 through #4 to their corresponding numbered pockets. Insert each until it reaches the "insert-to-line" mark.

As with aligning magnetic embroidery hoops for brother on a machine hooping station, precision in seating each die ensures flawless repetition later.

Step 2: Assembling the Carriage on the Power Drive

Before mounting, confirm the retaining-ring assemblies on the Power Drive’s arms are tight. A small Allen key works for adjustment.

With the rings secure and arms extended, slide the 311 Carriage along them until snug. Attach the centering-collar assembly, tighten the thumb screw, then seat the 811A Die Head—its post locks into the carriage with a reassuring click.

Think of this coupling like joining barudan magnetic embroidery hoop components—each piece must align smoothly but firmly.

Step 3: Securely Mounting Your Pipe

Before any pipe enters the jaws, the power drive must be switched off and unplugged—a non-negotiable safety rule. Slide the pipe through the front chuck, close the rear centering guide, and tighten the front jaws.

Using the hammer chuck, strike several solid blows to secure the grip.

A balanced, centered hold prevents vibration, much like adjusting fabric tension evenly on a babylock magnetic embroidery hoop to avoid slippage mid-stitch.

The 3-Step Process: Cut, Ream, and Thread

With your pipe locked and power connected, you’re ready for controlled motion: cutting, reaming, and threading—the core of the trade.

Cutting

Bring the cutter down to your mark and engage the footswitch. Maintain about a ¼-turn increase in pressure per pipe revolution until the cut completes.

Reaming

Press the reamer into the rotating pipe until burrs disappear and the inner edge feels smooth.

The maneuver resembles trimming excess backing from inside a hooped fabric—a clean finish defines professional quality.

Threading

Set the die head to the appropriate pipe size—often 2 inches for demonstration—and lock the throw-out lever to “closed.”

Start the machine, engage the die head, and flood the cut with oil from the 418 Oiler for continuous lubrication.

Maintain steady feed pressure until threads reach full depth, then lift the throw-out lever to disengage.

Keeping dies lubricated parallels maintaining magnetic hoops for embroidery—consistent flow protects precision components.

Job Site Mobility: Using the No. 32 Transporter

Once threading is done, remove the carriage and oiler, wrap the power cord, and fasten the No. 32 Transporter by clamping its shaft into the chuck.

With the transporter engaged, tilt the machine gently forward onto its wheels, fold the 1206 stand using the tray lever, and secure the legs with the built-in chain.

Lastly, stow the footswitch around the rear leg to prevent strain on its cable.

Rolling this heavy setup safely feels as controlled as moving a multi-head embroidery unit with bai magnetic embroidery hoop attachments—balance, lock, and secure.

Pro Tips and Quick Checks

• Lubrication: Always keep oil flowing during threading; dry runs shorten die life.
• Pressure: Use slow, measured tightening on the cutter handle—¼ turn per rotation is standard.
• Inspection: Threads should appear glossy and uniform, not burnt or rough.
• Storage: Clean off oil and chips after use; fold and chain the stand before transport.
• Safety: Safety glasses are a must, and veteran pros recommend hearing protection too.

Just as precise hoop placement ensures embroidery accuracy, organized machine care keeps your power threader producing “textbook” threads year after year. For those designing in textiles or metal, magnetic embroidery hoop embroidery devices and pipe dies alike demand routine calibration.

From the Comments: Field Wisdom and FAQs

A few popular threads (pun intended) from the RIDGID community stand out:

• Oil Re-Use: Experienced fitters confirm you can reuse cutting oil until it stops pumping smoothly—then simply top up.
• Speed Control: The machine runs at a single fixed speed; consistency matters more than rpm variety.
• Safety Gear: Noise sparked debate—some dismissed it, but most agree hearing protection pays long-term dividends.
• Learning Path: New helpers admitted steep learning curves; pairing with a journeyman or formal training was strongly advised.
• Camera Feedback: Multiple viewers wanted closer shots of hand placements—a good reminder for trainers filming tutorials.

Operating a threading machine or adjusting janome embroidery machine hoops both reward patience. Mastering the rhythm means safer hands, longer-lasting gear, and cleaner results.

Final Thread

The RIDGID 300 Complete isn’t just a machine—it’s a reliable partner for construction pros who value precision and repeatability. Whether you’re forming water-tight steel joints or perfecting a stitch in fabric held by magnetic embroidery hoops, deliberate setup and respect for the craft are universal.

When you close that die head lever or snap a magnetic hoop into place, the muscle memory is the same: align, secure, execute.
