Introduction to Barudan MK8 Trimmers
The MK8 trimmer system, used across Barudan BEKY and BEKT embroidery heads, is a mechanical workhorse. It uses a moving knife that slides and retracts to cleanly cut threads at the end of each trim cycle.
What makes it prone to drift? Over time, thread debris can compact under the covers or behind the drive shaft, pushing the movable knife slightly out of alignment.
Why Your Trimmer Might Be Out of Adjustment

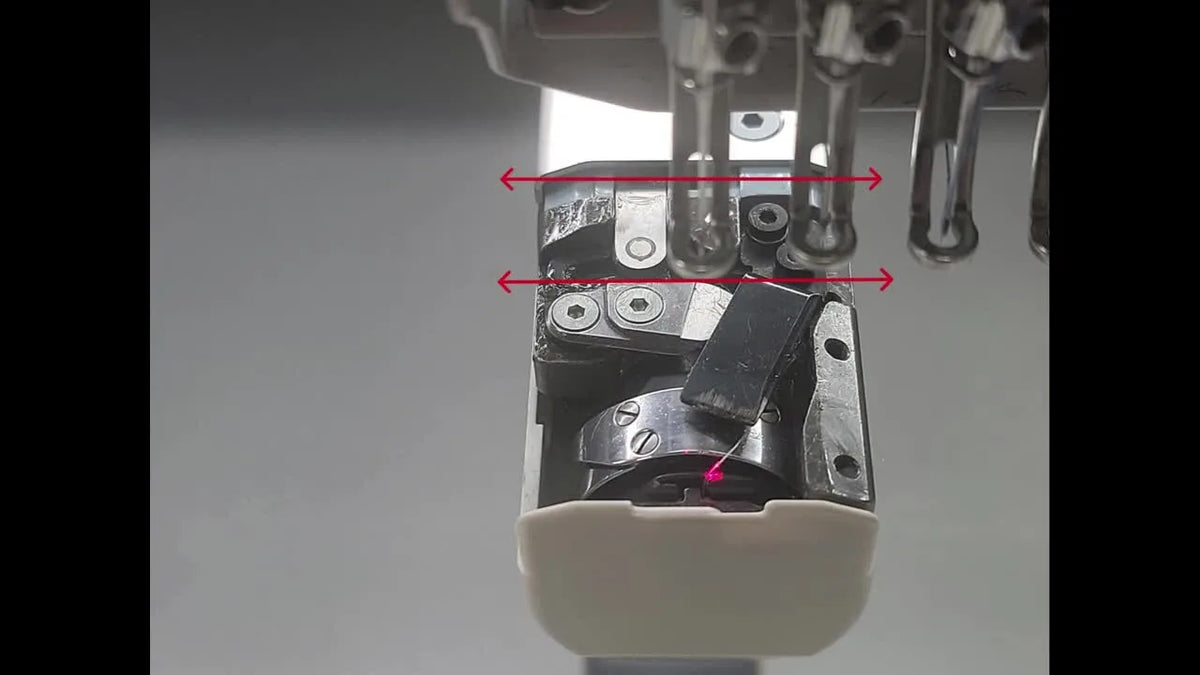

When trims leave wisps of uncut thread—or when the blade doesn’t seem to close fully—you’re likely looking at a parallel alignment issue. The movable knife should line up precisely with the chrome back cover when seen from the front.
A slight tilt or angle means the trimmer is out of adjustment.
Left unchecked, it won’t cut properly, leading to hanging threads and messy finishes.
Recognizing Misalignment
If you see a visible slope or mis-parallel blade, the problem is confirmed. In an embroidery setting like a barudan embroidery machine hoops setup, accurate cuts save thread and time.
Step-by-Step MK8 Trimmer Reset Guide
Ready to reset your system? The process can be done confidently with simple shop tools.
Accessing the Trimmer Mechanism
Start by removing the front cover while the machine is out of drive. This reveals the core mechanism.
Clean away any tangled threads or debris using a soft brush—your biggest enemy is compaction that nudges the knife off track.
Move around to the rear, remove the chrome cover, and locate the Allen bolt securing the trimmer drive shaft.
Loosening and Reseating the Drive Shaft
Insert your Allen key and carefully loosen the tight bolt at the back.
It might resist; apply firm but controlled pressure.
Once loose, push the drive shaft backward until it seats.
Tighten the bolt again—but avoid overtightening.
This position returns the movable knife to its factory alignment, ensuring it sits parallel to the fixed blade.
Verifying Alignment and Reassembly
Return to the front and visually confirm the blades are again aligned.
Small front Allen screws on the fixed blade should also be snug—double-check these with a screwdriver.
Slide the front cover back on and tighten the right screw first, then the left.
Now run a brief test cycle to observe if threads cut cleanly. If they do, your reset is successful.
In industrial multi-head setups similar to those used with barudan magnetic embroidery hoops, consistent trimmer response ensures uniform stitching quality across all heads.
Maintaining Your Trimmers for Optimal Performance
Alignment issues usually start small. Regular cleaning sessions dramatically extend the life of MK8 trimmer parts.
During longer embroidery runs—or when operating systems similar in workflow to magnetic hoops for embroidery setups—pause occasionally to clear away compacted threads. Opening covers using the trim and clean buttons and brushing the knife base keeps the system smooth.
Importance of Regular Cleaning
Even a thin layer of thread can cause a minor shift. Every one percent of misalignment compounds over hundreds of cuts. Cleaning also prevents fatigue in bolts and drive shafts, which can otherwise drift again.
Technicians using modular machines or barudan magnetic embroidery hoop accessories should treat trimmer upkeep as routinely as hoop or frame maintenance.
When to Contact Technical Support
Even with routine care, there are times replacement or deeper calibration may be needed. Southern Exposure Technical Services and Barudan’s U.S. support line (available weekdays) can walk you through advanced diagnostics.
One viewer asked whether older Mk5 trimmers would get their own guide, and the channel confirmed that a follow-up tutorial is on its way.
> From the comments: Users appreciated clear step visuals and requested older-model coverage—feedback the creators are already acting on.
If you manage mixed fleets—say, a bai embroidery machine alongside Barudan heads—the mechanical logic of drive shaft alignment remains similar. Still, use the correct manufacturer procedure for each.
Routine care keeps your trims crisp and your embroidery downtime low. Whether you run a shop with barudan hoops or experiment with alternative systems like magnetic embroidery hoops, mastering the MK8 reset gives your production a professional edge.
Stay methodical, stay clean, and keep those blades precisely parallel.
