Understanding Built-in Fonts on Your Brother Luminaire
The Brother Luminaire comes loaded with editable keyboard-style fonts ideal for names, monograms, or quick text embellishments. Terry begins by selecting the ABC category right on the touch screen
. This is the foundational step before modifying spacing or size.
Accessing Font Categories

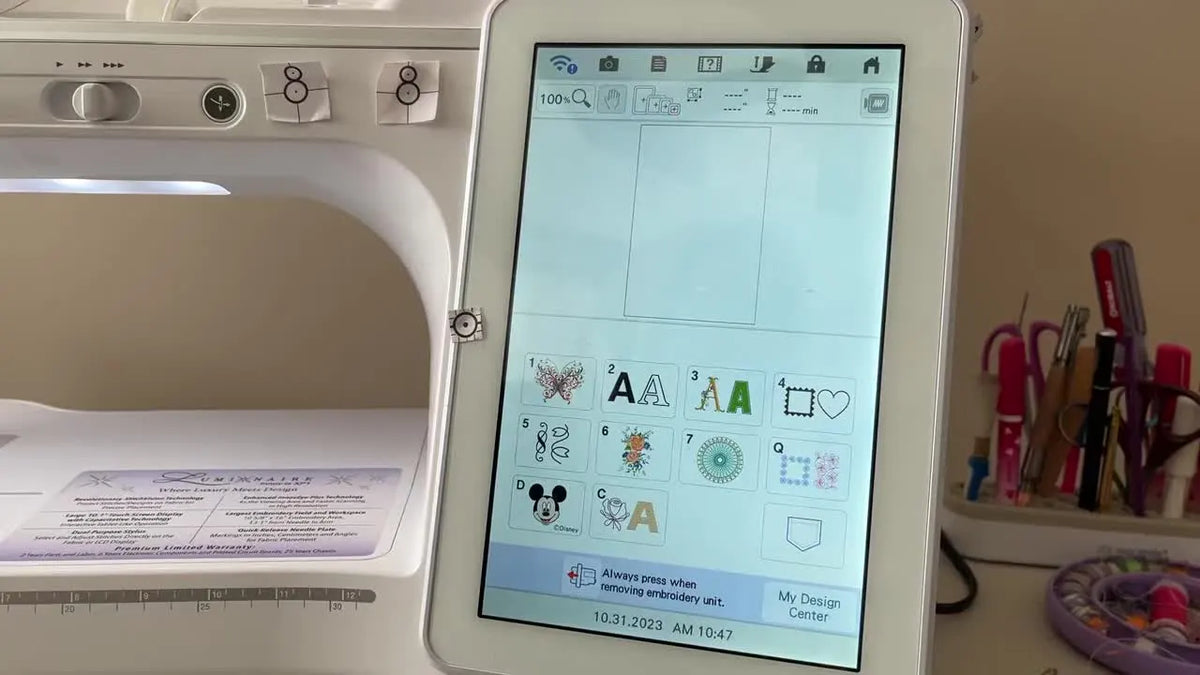

On your home screen, tap the built-in font icon, then select one of the alphabet groups—Terry chooses ABC. The machine displays the keyboard and preview pane, ready for input
. It’s simple yet powerful, perfect even for newcomers using tools like the brother embroidery machine.
Typing and Initial Setup
Using the on-screen keyboard, Terry enters “ABC,” confirming it’s visible in the design area
. Each letter can be clicked or deleted independently, allowing precise control when composing short words, initials, or logos.
Customizing Built-in Text: Spacing and Color
Letter spacing gives embroidery text its rhythm. Changing it ensures balance and readability.
Fine-tuning Character Spacing
From the text editing tools, Terry opens the Spacing option and increases the distance between each character
. This visual tweak makes designs breathe better—especially helpful before resizing.
Choosing Your Thread Colors
After spacing comes color
. Terry changes all threads to red using the three-spool icon
. The screen immediately refreshes the preview, confirming consistent coloration.
How to Resize Built-in Fonts (The Right Way!)
Why the “Size” Button is Greyed Out
If you attempt standard resizing via the main Edit > Size button, it’s grayed out. That’s because machine keyboard fonts aren’t vector-based like embroidery shapes—they rely on pre-defined font data
. Terry highlights this limitation so you don’t waste time troubleshooting.
Using Text-Specific Resizing Tools
To resize, choose the T (Text) icon, then the size arrows at the bottom of the screen
. Keep tapping until the limit tone sounds. In this example, the font grows from roughly 1.28 inches high to nearly 1.91 inches, automatically recalculating under-the-hood stitch patterns.
When Terry confirms the adjustment, the machine displays the dimension change and new stitch count—about 1521 to 2227 stitches
. A responsive recalculation like this helps maintain even fill coverage without distortion.
Impact of Resizing on Stitch Count
Each size increase naturally raises your stitch count. Keep an eye on it for hoop compatibility—especially if you’re working with larger hoops such as the magnetic hoops for brother luminaire which simplify design placement when using larger text blocks.
Adjusting Stitch Density for Perfect Results
What is Stitch Density?
Density controls how tightly each stitch overlaps the next. Higher density yields a bolder, more filled design. Terry demonstrates using the Density icon to make subtle increases
.
When and How to Change It
For soft fabrics, decreasing density prevents puckering. For rougher weaves or heavy canvas, increasing it ensures solid coverage. As Terry notes, evaluate results with quick sample cards first. Consider pairing dense fonts with steady hooping—using a supportive brother magnetic frame prevents movement mid-stitch.
Working with Third-Party Embroidery Designs vs. Built-in Fonts
Distinguishing Designs from Keyboard Fonts
Design-based “fonts” are just individual embroidery design files of letters, unlike the typeable built-in sets. Terry shows where to find them under Add > Category 7
. Each letter appears as a single entity, not editable text.
Imported PES designs don’t automatically rescale stitch count when resized—unless you use the specialized design resize mode that recalculates stitches. If you’ve experienced freezes using the enlarge or density button, you’re likely attempting to resize a frozen stitch map instead of recalculating threads.
Resizing Designs with Stitch Recalculation
By selecting the “resize with stitch recalculation” option, Terry safely changes a decorative “C” from 8.24" high to 7.00", with balanced density maintained
. The resizer actively re-stitches rather than stretching thread lines, preserving the clean satin finish.
Users dealing with large designs can stabilize their results by using solid hooping accessories like magnetic embroidery hoops for brother pr680w, especially when paired with heavier fabrics that need consistent tension.
Tips for Successful Embroidery Lettering
Always Test on Scrap Fabric
Before committing to a final item, stitch sample cards using the same material and stabilizer. This rule applies whether you’re editing built-in fonts or integrating third-party lettering packs. Terry recommends it as a safeguard against surprises.
A user in the comments feared embroidering nylon bags—Terry advised a medium-weight cutaway stabilizer. It’s a reminder that the right foundation determines results more than fancy fonts ever could.
Leverage Your Machine’s Features
Don’t overlook built-in preview tools, design trace, and hoop area checks. Combining these with a secure magnetic hoops for brother embroidery machines ensures real alignment accuracy, especially when lettering across multiple lines or objects.
From the Comments: Real Questions, Real Fixes
Community discussion under Terry’s video provided outstanding peer-to-peer insights:
- Design Enlargement Issues: Viewer confusion about frozen machines during design scaling was cleared up—built-in fonts resize within the text tool, while imported PES designs require the recalculation mode or software pre-resizing.
- Older File Compatibility: Re-export older design files in a newer PES version to prevent stalling or broken needles; some spools also have notches that can catch thread.
- Stabilizer Choice: For nylon and slick fabrics, a medium-weight cutaway is a reassuring default.
These comments collectively underline one truth—knowledge of how designs are constructed saves both thread and frustration.
From here, your lettering projects can shift from experimental to exceptional. Master these resizing and density principles once, and every future monogram will feel effortless.
