Our expert breakdown of Redline 1501.com’s video shows how to safely replace a broken reciprocator on your embroidery machine. You’ll find every key move—from removing the sewing head to reinstalling the felts—clearly explained and visually supported.
Table of Contents
Understanding the Reciprocator and Common Failures
A broken reciprocator can stop production cold. In the video, the technician explains that a common cause is when the presser foot crashes into the embroidery hoop — an impact that easily snaps this small yet vital part.

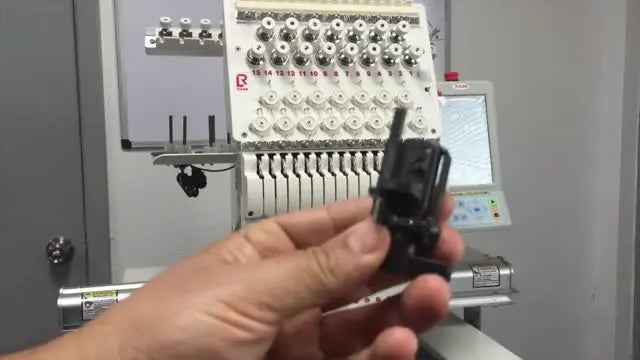

What is a reciprocator? It’s the small drive piece that converts rotary motion into the up-and-down movement of your needle bar. When it breaks, your machine can’t sew, no matter how perfect your tension or hoop placement.
Before starting, remove all threads from the machine. Emptying those paths frees your workspace and prevents tangles.
Including advanced hooping accessories like magnetic embroidery hoops in your studio setup can also reduce presser-foot collisions when hoop changes go fast.
Disassembling Your Redline Embroidery Machine
Removing Covers and Cables
Start by removing the spool cover. Press at the top and pull gently forward to release it. The technician demonstrates using patience over force.
Next, disconnect the thread break sensor and head light cables. Keep a firm grip on each screw to prevent it from falling into the machine cavity.
Detaching the Tension Box
Using a 3 mm Allen wrench, remove four screws that hold the tension box. Be gentle with the sensor cable beneath.
When cables start to resemble a puzzle, label each with tape for quicker reassembly—a neat trick for anyone who juggles different models like the brother embroidery machine or a Redline in the same workspace.
Accessing the Sewing Head
Once the tension box and cover are off, the sewing head itself can be detached by removing two Allen screws. Pull the entire assembly outward.
The Heart of the Repair: Replacing the Reciprocator
Exposing the Reciprocator
Two smaller covers protect the reciprocator. Remove them using a pallet screwdriver.
Behind those plates lies the core of the drive system—watch carefully how the felt and bearing align.
Careful Removal and Installation
Insert a 2.5 mm Allen wrench into the opening to loosen the screw securing the reciprocator bar. Pull the bar upward, minding the tiny bearing and felt.
With those removed, the reciprocator slides out easily.
Align the new reciprocator carefully. Its flat side must face left, and the connector rod needs to seat cleanly.
Key Details: Bearings, Felts, and Tightening
After inserting the reciprocator bar, reinstall the bearing and felt in the same order. Tighten the bar screw gently—just snug, never forced.
Choosing quality parts helps longevity, but maintaining balanced hoop setup matters too—especially if you switch between frames like magnetic hoops for embroidery machines and tubular hoops.
Reassembling Your Embroidery Machine
Securing Reciprocator Covers
Return both covers, but lift them slightly upward before tightening so a small gap remains beneath. That clearance prevents the color-change system from binding.
Reinstalling the Sewing Head and Covers
Slide the sewing head back in place, making sure the take-up levers enter the rail correctly. If installation resists, the guide plate under the head may need a slight loosen-and-tighten adjustment.
This step reunites many moving parts, similar in delicacy to servicing a bai embroidery machine or a multi-needle Brother setup.
Next, secure the needle bar case cover, ensuring washers are installed on the screws before snugging them with the 3 mm wrench.
Final Connections and Checks
Reconnect the thread break sensor and light cable. Tighten their retaining screw just enough to hold, no more.
Lastly, reinstall the front spool cover until it snaps in place.
Run a simple color-change test by handrotating the wheel to confirm smooth motion before powering up.
Troubleshooting Installation and Maintenance Tips
Ensuring Proper Spacing When reinstalling, that tiny cover gap makes all the difference; too tight, and the reciprocator’s movement binds. Use consistent visual spacing across heads if maintaining a multi-machine shop.
Avoiding Overtightening Each screw’s thread is delicate. If a screw feels tight before fully seated, back it out, realign, and try again. Simple awareness prevents cracked parts—a universal rule from Redline to tajima embroidery machine hoops rigs.
General Maintenance Practices Regular dusting of the sewing head and a dab of machine-approved oil around the reciprocator axis help extend service life. Create a small maintenance log to track each head’s disassembly history. It’s a habit embroidery professionals adopt, whether operating a smart 15-needle like ricoma embroidery hoops series or this trusty Redline.
Keep spare felts, bearings, and a magnetic parts tray ready for next time—you’ll thank yourself mid-repair.
Conclusion: Smooth Stitches Ahead
Replacing a broken reciprocator brings a Redline embroidery machine back to full stride. By understanding component alignment, respecting torque limits, and preparing your workspace intentionally, you transform what once was a feared failure into a confident maintenance win.
And remember: thoughtful accessories—such as magnetic embroidery hoop, barudan magnetic hoops, or janome magnetic embroidery hoops—can make hooping and repairs safer, keeping both your equipment and designs in perfect sync.
Machine maintenance isn’t just repair—it’s craft care. Keep learning, keep stitching.
