This comprehensive guide walks you through the process of balancing upper and bobbin case tension on a Singer Featherweight sewing machine. Learn how to measure precise tension in grams, make controlled adjustments, and prevent uneven stitches. Perfect for quilters and Featherweight enthusiasts aiming for flawless, balanced seams every time.
Table of Contents
Understanding Sewing Machine Tension
The Singer Featherweight’s charm lies not only in its compact body but also in its precision. The video begins by explaining that perfect tension results from harmony between the upper and lower threads working in unison.
Why is Tension So Important?
Even the finest fabric and thread can look sloppy if tension fails. As Carmen notes, tension determines how seamlessly threads interlock between fabric layers. While different accessories—such as the magnetic embroidery hoops for brother—help position your workpieces securely, tension ensures your seam quality stands out.
The Two Types of Tension: Upper and Lower
Upper tension is controlled by discs compressing as you lower the presser foot; lower tension relies on the bobbin’s tiny external spring. The two must ‘meet in the middle,’ locking stitches between layers so neither side shows excess thread.
Factors Beyond Tension Affecting Your Stitch
Quality needles, smooth thread, and a lint-free machine matter. The video even flashes a Singer Service Manual, reminding viewers that good maintenance equals reliable tension.
Measuring and Adjusting Bobbin Case Tension
Carmen recommends starting with the bobbin case. Rather than guessing via a “drop test,” use a bobbin tension meter for precise readings.
The Limitations of the 'Drop Test'
Though traditional, the drop test can mislead. Each person tugs differently, leading to inconsistent settings—and inconsistent stitches too.

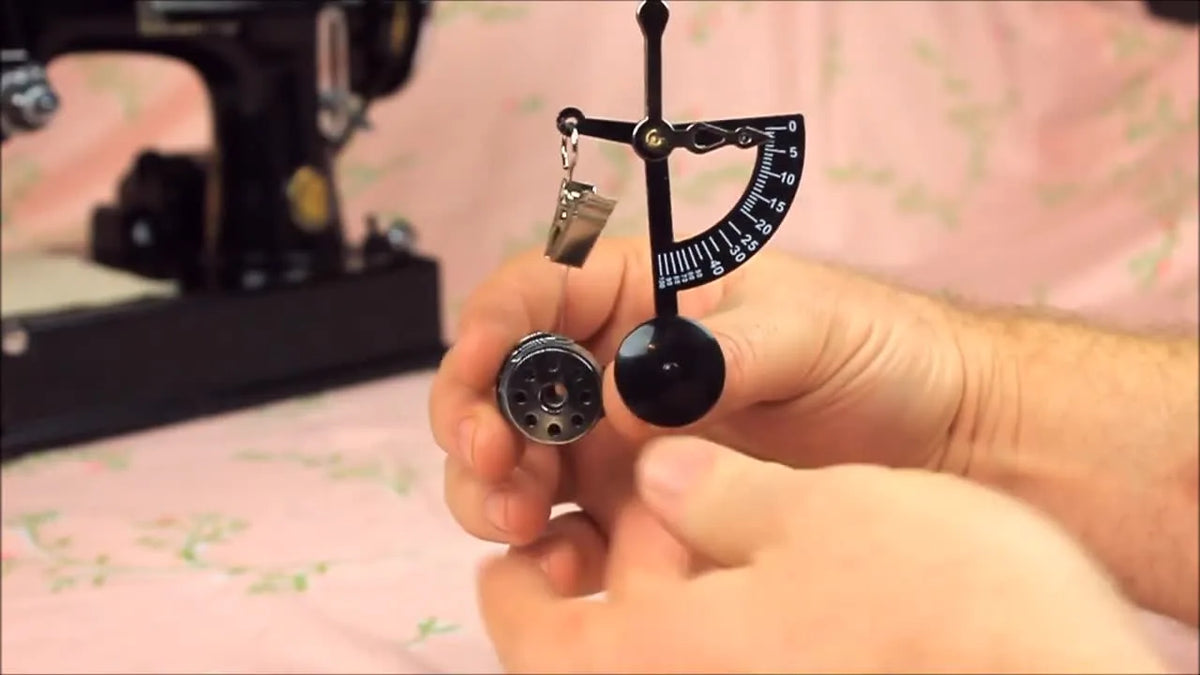

Introducing the Bobbin Tension Meter
This small tool clips onto your bobbin thread and measures tension in grams as you pull gently until the bobbin spins. On a Singer Featherweight, aim for 22–23 grams. This sweet spot represents balanced lower tension. For accuracy similar to modern embroidery work using a magnetic embroidery hoop for brother pr1055x, measurement consistency is everything.
Instead of costly professional gauges, this device gives at-home sewers identical precision. As illustrated, avoid touching the bobbin or spring during the reading for a true result.
Step-by-Step Bobbin Case Adjustment for Featherweights
If your meter reads too light (say, 15 grams), gently tighten the tiny tension screw with a small screwdriver—clockwise, just about one-eighth turn. Too tight? Loosen counterclockwise. Recheck after each tiny twist until you see that 22–23 gram reading. Overdoing it may damage your spring, so subtlety is essential.
Troubleshooting and Calibrating Upper Tension
Once the bobbin case is perfect, shift your focus upward. The thread path, spool type, and tension dial all play together here.
Identifying Loose vs. Tight Upper Stitches
The video shows that loops on the underside reveal loose upper tension—tighten it. If bobbin thread pokes through on top, the top tension is too tight. The goal is a lock right in the fabric’s center.
Adjusting Your Upper Tension for a Perfect Lock
Small, gradual dial turns yield big differences. When the stitch looks balanced top and bottom, don’t fret about the dial’s number just yet.
Calibrating Your Upper Tension Dial to '4'
Now that everything sews beautifully, it’s time to set your dial. Press in the numbered disk, turn until “4” sits at the top, and release. Calibration at this neutral point lets you tweak easily for varying threads later. Professional embroiderers using systems like magnetic embroidery hoops embroidery recognize the same principle—always return to a known baseline.
Solving Thread Flow Challenges with Modern Spools
Today’s quilting threads often arrive on large cross-wound spools or cones, which the Featherweight wasn’t built to handle. Their weight and shape can yank the thread unevenly, causing jerky feed and skipped stitches.
The Problem with Large Thread Spools on Vintage Machines
Jerky thread motion disturbs the even pressure needed for balanced tension. It’s like using a hoop that doesn’t quite fit—everything jitters.
The Thread Stand Solution
The cure? A simple thread stand specific to your Featherweight. It lifts the thread vertically, letting it glide effortlessly into the tension discs. With that in place, you’ll stitch more steadily—much like the even control embroidery hooping station magnetic embroidery hoop users value in embroidery setups.
Common Tension Troubleshooting Tips
If the tension meter needle bounces instead of settling, dirt may lurk beneath the spring. Clean lint, check bobbin size, and eliminate bent spools. For advanced users who enjoy custom accessories, precise mechanical alignment ensures better results than even top-tier magnetic embroidery hoops for janome 500e.
Achieving Perfect Stitches Every Time
Balanced tension transforms vintage sewing into modern precision. Clean mechanics, measured adjustments, and smooth thread flow guarantee longevity for both machine and maker. The bobbin tension meter from The Singer Featherweight Shop stands as the unsung hero of uniform seams.
Whether you quilt daily or restore these classics, maintaining calculated balance saves frustration later—and inspires trust in every line of stitching. Just as embroidery professionals fine-tune their rigs with dime magnetic hoop, you too can perfect your setup through care, patience, and proper calibration.
From here, enjoy your Featherweight at its finest—quiet, precise, and perfectly balanced for the next project.
