Mastering Ricoma Embroidery Machine Threading: A Step-by-Step Guide

This in-depth guide walks you through every stage of threading a Ricoma embroidery machine—from choosing threads to verifying proper tensioning. Based on a detailed instructional video, you’ll learn to handle multiple spool types, navigate tensioners and levers, and complete precise needle threading for perfect embroidery results.

Educational commentary only. This page is an educational study note and commentary on the original creator’s work. All rights remain with the original creator; no re-upload or redistribution.

Please watch the original video on the creator’s channel and subscribe to support more tutorials—your one click helps fund clearer step-by-step demos, better camera angles, and real-world tests. Tap the Subscribe button below to cheer them on.

If you are the creator and would like us to adjust, add sources, or remove any part of this summary, please reach out via the site’s contact form and we’ll respond promptly.

Table of Contents
  1. Understanding Your Ricoma Machine's Threading System
  2. Initial Steps: Upper Threading Path
  3. Mastering the Lower Tensioners
  4. Navigating the Check Spring and Take-Up Lever
  5. Finalizing the Needle Threading
  6. Optional: Automated Thread Trimming
  7. Verifying Your Threading

Understanding Your Ricoma Machine's Threading System

The Ricoma embroidery machine handles a wide range of threads: polyester, rayon, cotton, and acrylic. The video opens by demonstrating these side by side—each with a different sheen, stretch, and tolerance for speed

Presenter showing various embroidery threads and spools.
A clear comparison of polyester, rayon, cotton, and acrylic threads alongside multiple spool types.

. If you’re planning projects with metallic or specialty threads, be sure to check manufacturer recommendations first.

Types of Embroidery Thread

Polyester dominates for durability, while rayon offers that signature brilliant finish. Cotton and acrylic add diversity for specific textures. No matter your preference, the Ricoma’s pathway accommodates them all. When experimenting with different brands or finishes, seasoned operators sometimes compare tension feel against accessory tools such as magnetic embroidery hoop for ricoma to understand fabric resistance.

Spool Types and Compatibility

The presenter also showcases the variations of spool put-ups—from compact home embroidery spools to king and mini king cones. Each mounts seamlessly when directed through the machine’s rear spool rack. No additional adapters are required.

Hands threading green thread through small eyelet above tensioner.
Thread passing through the upper eyelet is the first true contact point for tension control.
💡 You only need to perform a complete manual threading once. Every color change afterwards simply ties onto the previous thread and pulls through the line.

Initial Steps: Upper Threading Path

Careful placement through the first eyelet determines everything downstream. Starting at the small upper eyelet, the thread slides to the right of the top tensioner. Maintain slight tension to prevent tangling

Hands wrapping thread around slit of threading insert tool.
The threading insert helps guide thread cleanly through long tubes without tangles.

. Thread awareness is crucial—use two fingers to keep even pressure without tugging.

Using the Threading Insert and Tube

Next comes the threading insert—a slender aid included with your accessories. Wrap your thread around the notch of the insert and push it through the clear tube until it exits below

Inserting threading tool with thread into clear tube.
Feeding the threading insert through the tube ensures a consistent threading path.

. Reattach the tube, remove slack, and admire how straightforward this step becomes with the correct tool.

⚠️ Forcing the thread too quickly through the tube can cause looping. Push smoothly, not sharply.

If you often switch threads for large jobs or use multiple machines like a bai embroidery machine, investing in extra threading inserts can save time between runs.

Mastering the Lower Tensioners

Now the thread journeys through the clip guide and into the heart of the tensioning system. This arrangement ensures each needle feeds precisely the right amount for clean stitching lines.

Threading Odd-Numbered Needles

For odd needles, pull the front disc of the tensioner forward, guiding the thread around its post and notch. This movement establishes a predictable grip that keeps the thread smooth during fast stitching cycles

Hand pressing clip guide to insert thread underneath.
The clip guide secures the thread properly, preventing unwanted slack.

.

A brief visual inspection—checking that the thread sits flush in the disc groove—prevents future tension irregularities

Pulling tensioner disc outward to slip thread.
Proper threading of the lower tensioner ensures smooth even stitching.

.

Threading Even-Numbered Needles

Even needles use a mirrored but slightly more complex route: right side of the upper post, under, then clockwise around the roller disc

Close-up showing thread seated in tensioner notch.
A correctly seated thread sits neatly in the disc notch over the post.

. Maintain rhythm across all needles for uniform feed tension

Thread guided over roller disc on even-numbered needle.
Thread routing differs slightly for even needles, looping clockwise over the roller disc.

.

✅ Does the thread exit on the disc’s lower left side? If not, retrace carefully. The correction now saves minutes later.

Operators juggling diverse equipment—from Ricoma to barudan embroidery machine hoops setups—note uniform thread tension is the universal foundation of precision.

As the thread moves beneath the lower clip guide

Hands pressing lower clip guide to secure thread.
Lower clip guides keep the bottom tensioning aligned.

, it reaches the crucial check spring area—a miniature mechanic that regulates tension bounce.

Proper Placement for Tension Control

Lift the lever to open threading mode and slip the thread through the circular spring channel

Lifting check spring lever to threading position.
Raising the lever prepares the check spring for threading.

. Watch it slide perfectly into the center. This check-spring alignment ensures steady tension through every stitch.

Guiding thread through round check spring.
Passing the thread through the check spring keeps tension responsive to fabric weight.
💡 Verify correct motion by raising and lowering the lever gently—smooth travel indicates good seat.

Adjusting for Fabric Weight

When shifting from thin cotton to heavy denim, adjust spring height accordingly: lower for thick materials to accommodate drag, higher for light materials that demand finer tension control. These micro adjustments, similar to calibrating magnetic hoops for embroidery machines, improve consistency when working across fabric bases.

Finalizing the Needle Threading

With the take-up lever threaded and the line descending through ceramic eyelets

Thread pulled through take-up lever and ceramic eyelets.
A clear route through the take-up lever and eyelets positions the thread just above the needle area.

, the final precision act begins.

Guiding to the Needle Eye

Slip thread behind the tiny guide above the needle—using a scissor tip can help, as shown

Scissor point guiding thread behind thread guide near needle.
A simple trick using scissors helps tuck thread behind the guide with precision.

. This step organizes thread before the needle, reducing unwanted looping or fray.

Through the Presser Foot

Pass thread through the needle’s front eye and below the presser foot, leaving a 2–3 inch tail to the rear

Thread passing through eye of needle and presser foot.
The final pass through the needle eye and presser foot completes the threading path.

. This leaves everything secured and ready for movement.

If you handle multiple stations or switch between brands like magnetic hoops for bai embroidery machine and Ricoma’s multi-needle models, keep thread guides labeled per color for clarity.

Optional: Automated Thread Trimming

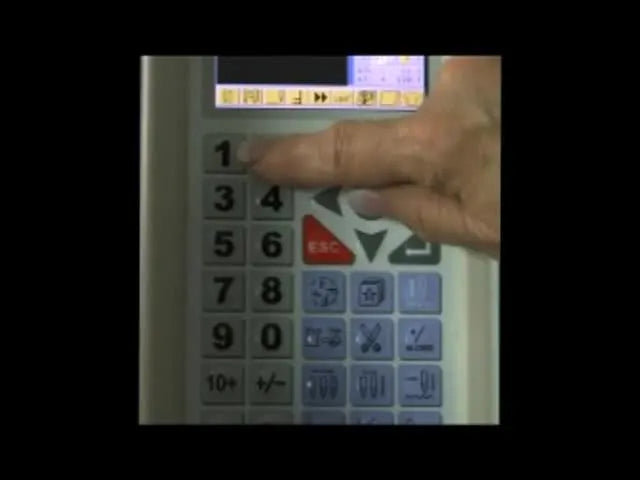

Ricoma’s control panel lets you trim thread tails electronically. Select the desired needle number, tap the scissors icon, and the system retracts and clips

Thread trimmed and held neatly by small wire.
Using automated trimming prevents tails from interfering with the initial stitch.

. The trimmed tail remains neatly held by a small wire near the needle bar.

Benefits of Automated Trimming

This smart function eliminates stray tails that might tangle in fast runs

. While trimming isn’t required, it reduces manual snipping, creating a more streamlined workflow reminiscent of automation in magnetic embroidery hoops for barudan setups.

Verifying Your Threading

With everything in place, stand back and review the front panel

Front view of fully threaded Ricoma embroidery machine with guide overlay.
Complete front overview illustrating the verified thread path ready for a test stitch.

. Compare each thread path against your reference illustration

Full Ricoma machine threaded with multiple colored threads.
A final inspection image showing perfect threading alignment across all needle bars.

. Every correctly threaded needle should align visually with the sample flow line.

From the Comments: Though no user questions accompanied the clip, many embroidery communities stress one common tip—document your perfect thread alignment once verified. A smartphone photo saves troubleshooting time anytime a new thread is introduced.

Final Note: Proper threading might look daunting, yet every detail—from tension disc to check spring—is designed logically. Once mastered, rethreading any Ricoma becomes a 10-minute routine rather than a full afternoon task. When combined with compatible tools such as magnetic embroidery hoop ricoma or ricoma embroidery hoops, you’ll establish a professional-level setup that produces reliable, flawless stitches on any project.

Happy stitching—and may every needle run true!
