Learn how to correct hook timing on a Happy Voyager embroidery machine to eliminate skipped stitches and restore precise stitch quality. This technician-level walkthrough covers removal, setup, alignment, and final verification of your machine’s timing at 25 degrees.
Table of Contents
Understanding Your Happy Voyager Embroidery Machine
The Happy Voyager HCS-1201-30 is a 12-needle commercial embroidery setup built to handle complex color sequences with consistency. In the video, subtle misalignment in the stitch pattern exposed that its needle and hook were not synchronized.
That small lag between needle descent and hook pick-up translates into missed loops or uneven outlines—classic timing errors. Whether you run a home workspace or maintain equipment professionally, learning basic mechanical alignment pays back in cleaner work.
Essential Preparations Before Adjustment
Start by identifying your exact model—look for the HCS-1201-30 plate on the front right corner.
Once confirmed, clear your workstation and gather a flat screwdriver, an L-shape driver, and patience. Removing the top plate exposes the needle bar and hook interface vital for visual checks.
Setting the Base Timing Angle (25 Degrees)
When ready, power on the Happy Voyager—press “OK” so it cycles through its homing motion.
With the machine still, the presser foot lowered, identify the rear timing dial. Using a wrench or socket, rotate until the indicator rests precisely at 25°.
A stable 25° is the heart of machine synchronization. From that exact angle, all subsequent hook adjustments center. Anyone cross-referencing between brands will note that while Brother, Janome, and Tajima models have comparable principles, the Voyager’s 25° mark is its sweet spot. In mixed studios where operators jump between brands—perhaps using brother embroidery machine alongside Happy—maintaining individual reference charts helps minimize mix-ups.
Precise Hook Alignment: The Heart of Timing Adjustment

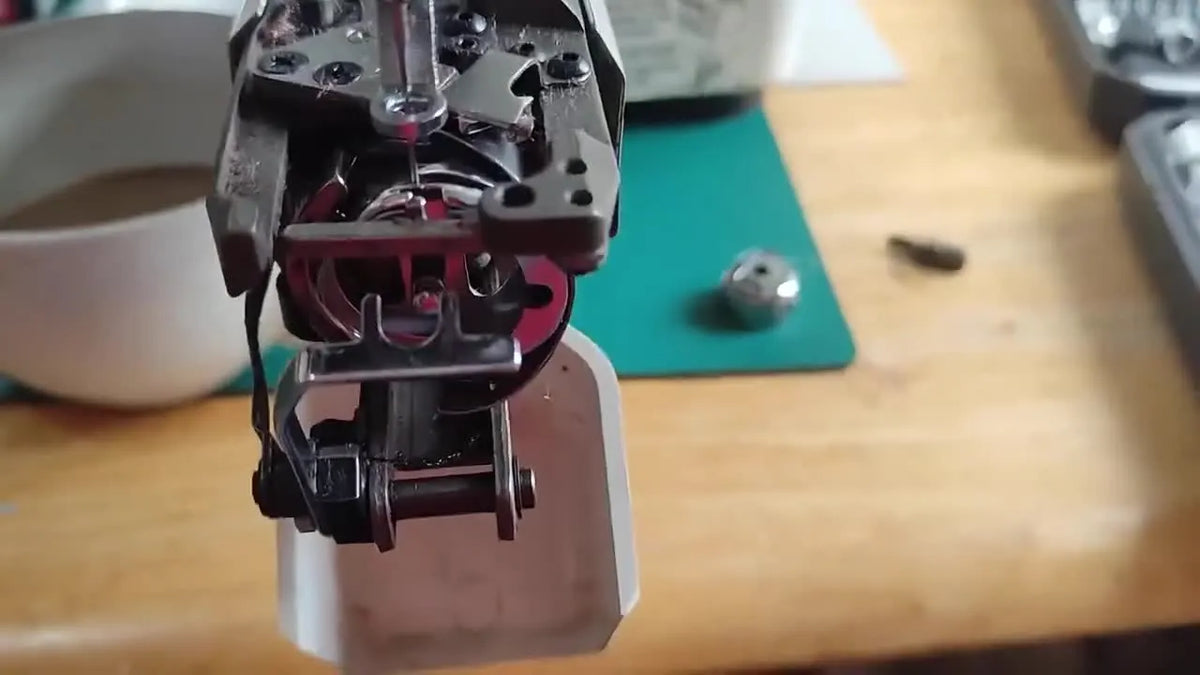

Back at 25°, examine your needle from the front—see how the hook’s “triangle” edge sits slightly ahead of the needle?
It must instead hover directly behind the needle’s hollow.
To achieve this, loosen three primary bolts on the hook assembly.
Once their tension relaxes, the assembly can rotate fractionally.
With bolts loose, check again that the dial hasn’t drifted off 25°. Realign the hook by sight until its tip almost touches the back curve of the needle.
Proper tension creates what technicians call the “paper-thin” gap: minimal distance perfect for thread capture yet free from contact friction.
One commenter praised this step for its clarity, noting as a visual learner it “helped tremendously.” That reinforcement echoes the importance of showing—not just telling—mechanical tolerances.
From the comments
A viewer asked how to remove the covers safely. The video didn’t fully detail screw mapping, so keep track manually; lay screws out left-to-right in removal order. Another asked the purchase price, and the creator mentioned about £900—an honest reflection of buying used gear. Such transparency encourages dialogue across different machine communities—from Ricoma to Babylock—each applying similar hook-needle fundamentals even if adjustment angles differ. So, whether you’re alternating between a Voyager and a babylock magnetic embroidery hoop system, awareness of build variation keeps expectations grounded.
Securing Your Adjustments
Once satisfied with the front alignment, tighten the three bolts evenly, ensuring none twist the housing off-center.
Turn the power back on and let the auto-homing function cycle. If the onboard system throws a temporary fault, simply reset with “Down Shift + Auto.” This clears any positional confusion after mechanical changes.
Recheck: dial at 25°, hook still hugging the needle, no scraping sounds. The embroidery should now run quietly and stitch precisely.
If everything operates smoothly, reinstall the top plate—alignment verified, noise level reduced, and performance restored.
Troubleshooting and Maintenance Tips
If homing errors persist, double-check the rear sensor area; minor shaft shifts can desync readings. Power down, reset the angle manually to 25°, and repeat the auto-start.
Routine maintenance saves future headaches: keep lint cleared, oil the hook race sparingly, and ensure your workshop’s environment stays dust-free. Regular checks on timing—especially after needle strikes or dense stitch sessions—prevent repeat disassembly.
Many multi-brand studios juggle different setups, so comparing tension readings between a Happy Voyager and a tajima embroidery machine hoops framework, or using magnetic embroidery hoops across both, can reveal cross-machine nuances. Pay attention to clamp pressure and hoop weight; heavier hoops slightly tug lower-grade stands, affecting vertical deflection.
To visualize best practices, try outlining your thread pathway from top guide to bobbin in sketch or photo form. A magnetic embroidery frame system works well for stabilizing cloth during timing tests, reducing vibration that disturbs readings.
From the comments: Multiple users expressed relief finding a clear, step-by-step visual method. One technician shared plans to adjust several machines after watching, confirming how such tutorials empower small embroidery shops.
To close, remember: maintaining hook timing may seem intricate, but it’s the heartbeat of consistent embroidery. Invest the time once, and you’ll gain many calm production runs free of skips and snags.
For advanced users who also maintain Barudan lines, note that applying similar tolerances while using barudan embroidery machine hoops can unify workflow consistency across platforms.
Precision might take an hour the first attempt. Next time, it’ll feel like choreography. Keep calm, move slowly, and celebrate each smooth test stitch—the hallmark of true machine harmony.
