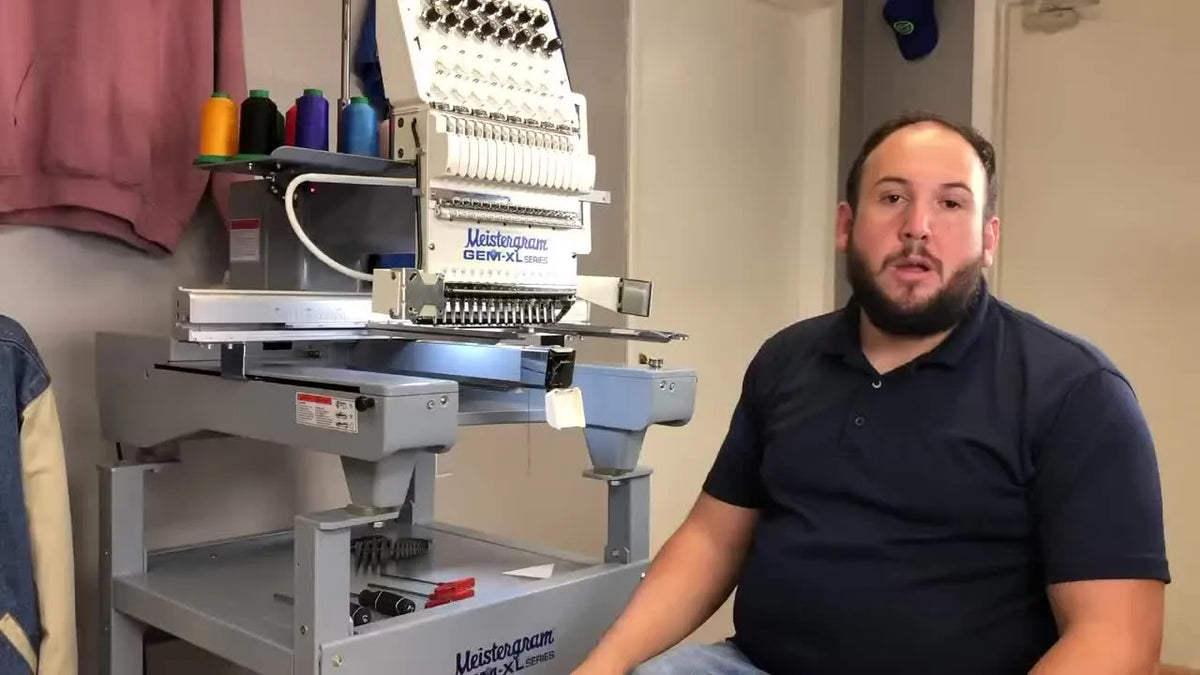

For technicians maintaining multi-needle embroidery equipment, precise alignment makes all the difference between crisp stitches and constant troubleshooting. This guide breaks down the exact sequence Hector demonstrates for the Meistergram GEM-XL Series—clarifying why the needle bar height matters and how to restore perfect synchronization.
Understanding Needle Bar Adjustment: Why and When?
A needle bar carries the needle in a rhythmic rise and fall that forms every stitch. Over time, minor collisions or reciprocator wear can nudge the bar off its designated spot—resulting in skips or unsteady loops.
What you’ll learn:
- How to identify when bar height adjustment is necessary.
- Safe disassembly for access to clamps.
- Accurate positioning at 180° and 0° degrees.
- Testing functionality before final reassembly.
Maintaining consistent alignment is crucial, whether you're tuning a long-serving Meistergram or setting up another professional model like a brother embroidery machine. Fine mechanical alignment pays off in even tension and clean thread motion.
Preparation: Accessing the Needle Bar Clamps
Before touching any adjustment screws, power down and ensure plenty of workspace illumination. A medium Phillips screwdriver is the first tool in play. Remove the two screws securing the faceplate, followed by the take-up lever covers.
Keep hardware organized to prevent dropped screws inside the chassis—a small tray works perfectly. Once covers are off, the upper and lower needle bar clamps become visible. These are your pivot points for precision tuning.
When restoring covers later, remember Hector’s safety reminder not to overtighten plastics—they crack easily.
Setting the Lowest Depth Point (180 Degrees)
Adjustment begins with locating the lowest depth point—the stage where the needle travels furthest downward before reversing. Lock needle bar number one in place, then rotate the main access knob counter-clockwise.
You’ll feel resistance begin to change at the dead spot. Rocking slightly back and forth helps confirm that moment of stillness. On this model, 180° represents that depth point. Match it via the degree wheel window.
Adjusting the Lower Needle Bar Height (6mm Gap)
With the bar anchored at 180°, loosen the lower clamp using a 3 mm hex wrench. A factory gauge can show spacing between the needle tip and rotary hook shaft—but if it’s missing, a 6 mm hex key works brilliantly as a proxy.
Lay the wrench’s flat edge horizontally across the shaft. Adjust until the needle just grazes the metal—gentle contact only. This tactile feedback equals roughly a 6 mm gap, delivering the sweet spot where needle, hook, and reciprocity align.
If unwanted vibration shows up later, revisit this stage first—it often solves half of stitching problems.
Calibrating the Upper Needle Bar Clamp (0 Degrees)
Next, turn the main access knob until the degree wheel reads 0°—this designates the needle’s apex.
Loosen the upper clamp screw, nudge the bar upward until it lightly presses into the top cushion, then retighten. That upper clamp defines how the reciprocator captures the bar.
Why it matters: Too high, and the needle won’t travel; too low, and the reciprocator may snap. Setting the upper limit restores cleaner motion paths comparable to the engineered consistency you’d expect when using industrial accessories such as magnetic hoops for embroidery machines.
Final Checks and Reassembly
Before calling it done, return the main axis to its home position—on the Meistergram, that’s 100°. Press the '100 position' key, confirm the prompt, and run a trim test. The needle bar should execute two complete, shake-free cycles.
When you thread up again, a clean descent and smooth pull-through mean the job succeeded.
Next step: Timing the rotary hook. That procedure ensures the hook tip passes precisely behind the needle scarf—explored in Meistergram’s following tutorial.
If you operate different machine lines, the principle of mechanical timing remains the same. The same measurement discipline aids anyone aligning magnetic hoops for brother embroidery machines or upgrading from classic frames to modular variants like magnetic embroidery hoop starter kit.
From the Comments: Real-World Tips & Common Issues
Q: What if some needles aren’t sewing? Inconsistent needle motion typically indicates uneven height. Check that every needle bar sits to the same depth before tightening clamps.
Q: My needle hits the plate—what went wrong? The 6 mm spacing may have closed too much, or your bar descended past the 180° mark. Reset carefully using the same steps above.
Q: The presser foot stays too high—why? If the bar won’t descend fully, check for misaligned upper clamp or mechanical resistance in the take-up drive. Cleaning or recalibrating both often resolves it.
Community debate: Some viewers discussed whether letting the needle touch the 6 mm key risks damage. Hector clarified that the needle merely scratches the surface—it’s a sign of precision, not force. This hands-on insight underscores why gentle tactile feedback outperforms guesswork measurement.
For professionals switching among brands—say, from Meistergram to bai embroidery machine or ricoma embroidery hoops installations—the same caution applies: measure, don’t force.
Wrap-up This clear, step-driven order—remove covers, lock bar, set 180°, fine-tune 6 mm gap, establish 0°, test, reassemble—restores any Meistergram GEM-XL to trustworthy performance. By embracing tactile accuracy, you extend machine life and boost embroidery confidence no matter your equipment fleet.
Happy calibrating—and may each stitch land perfectly centered.
