Understanding Two-Layer 3D Puff Embroidery
Before needle hits fabric, it helps to appreciate how layering foam transforms a regular satin stitch into a high-relief finish. The concept is simple: apply one foam layer, stitch, then repeat with another for extra height and texture.
That layered structure makes designs stand proud on headwear—especially on structured caps where shape is king. Each pass compresses and cuts foam with pinpoint precision—an effect achievable even on compact multi-needle machines like a brother embroidery machine.
What is 3D Puff Embroidery?
3D puff embroidery involves stitching a design so dense that it trims and sinks foam beneath the thread, leaving the stitched surface domed. Correct stitch density is crucial; the recommended 0.18 mm manual spacing allows neat foam cutting.
Benefits of Two-Layer Puff
The double-stack method adds hierarchy and visual complexity—ideal for lettering or bold graphic motifs. The result feels substantial yet lightweight. Those who enjoy cap customization, such as with the Richardson 168 model used in the video, will find this approach rewarding.
Designing Your 3D Puff Masterpiece
The creator starts in embroidery design software, showing the file’s three critical parts: base fill, first puff, and final puff layers.
Ensuring capped ends on every stroke is non-negotiable. Leaving any end open invites foam spillage and uneven surfaces—a point reinforced in both the video and viewer feedback threads.
A viewer asked who handles the digitizing; the answer: the creator often does his own and collaborates with professionals like Vitor Digitizing.
For large designs, stable frames matter. Some users find magnetic hoops for brother embroidery machines reduce hoop burn and keep dense foam pieces steady during multiple stops.
Key Design Settings (Satin Stitches, Spacing)
The tutorial confirms satin stitches with center-run underlays throughout the design. That configuration ensures cutting efficiency and tight surface integrity.
Importance of Capped Ends
Capped ends seal the foam neatly under thread edges. Skipping this detail can ruin the 3D illusion entirely.
Setting Up Your Embroidery Machine
Once the file is refined, the next step is transferring it to the machine via USB.
A few menu taps later, thread colors are assigned—green for fill, black for both puff stages. Stops are then programmed so the machine pauses exactly where foam must be added.
This is also where orientation matters: designs rotate 180° to match the upside-down positioning of the cap driver.
Proper hoop selection can reduce material slippage. If you work on another model, consider the magnetic embroidery hoop for brother pr1055x or similar magnetic clamps for repeated hat jobs.
Loading the Design and Cap
The Richardson 168 flat-bill cap slides tightly into the cap driver.
Alignment is everything—too low, and your design collides with the brim.
Programming Thread Stops for Foam Insertion
Stops save you from frantic mid-run interventions. Two are added here: one after the green base, the second after the first black puff.
The Embroidery Process: Stitching and Foam Application
With setup complete, the machine traces to confirm placement, then begins the green fill.
Stitching the Fill Layer
This base provides the foundation—dense enough to hide foam color variations beneath. A smooth, tight fill supports even foam compression.
First Foam Layer & Stitching

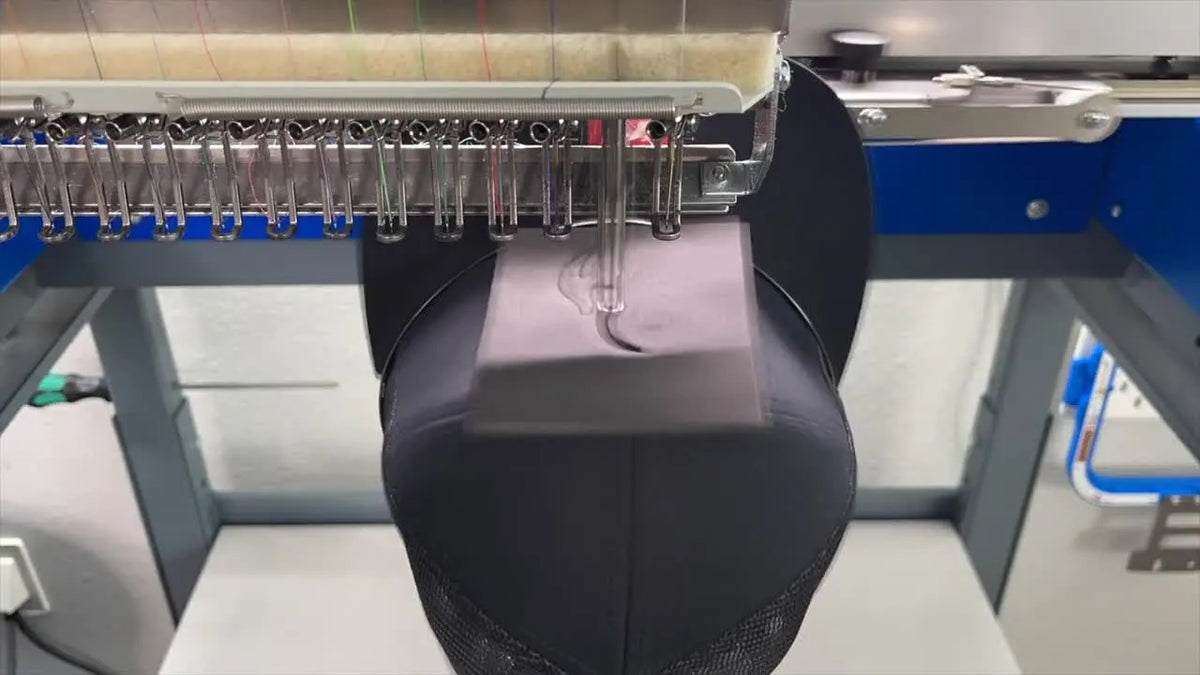

At the first automatic stop, the first black foam layer goes on.
The creator presses it crisply against the stitches before resuming. At this point, a dime magnetic hoop system could provide steadier hold on thick caps if your existing frame lacks firmness.
Second Foam Layer & Final Stitching
When that round completes, another piece of foam sits atop the first for extra depth.
The machine finishes with the same black thread, cutting both foams perfectly where designed. This step defines the two-tier puff effect.
A compact unit like the barudan embroidery machine hoops family can handle similar multi-layer designs, ensuring accurate re-hooping and minimal movement.
Finishing Touches: Removing Foam and Refining Edges
Fresh off the machine comes the satisfying peel.
Large chunks lift easily; smaller bits near fine lettering need patience.
The Satisfying Foam Peel
Pull gently along stitch direction. Forceful tearing risks lifting threads. Keeping tweezers or a tool close saves time later.
Using the 3D Puff Pro Tool
The specialized tip gets into crevices to hook out stubborn foam.
Viewers praised this step for its detail—the creator mentioned this 3DPuffPro tool streamlines cleanup considerably.
Heat Gun Application for a Perfect Finish
Finally, the Wagner variable-temp heat gun makes its cameo.
Run it briefly over the design—just long enough to shrink and seal foam fibers. Avoid direct, prolonged heat to prevent melt. One viewer asked about temperature; medium-high with max fan was confirmed.
At this point, the puff’s silhouette snaps into sharp relief—clean edges, crisp curvature.
Pro Tips for Flawless 3D Puff Embroidery
Troubleshooting Common Issues
- Foam protruding: Revisit capped ends and check density.
- Misalignment: Confirm centering before stitching; use trace.
- Melted foam: Keep gun moving quickly.
Watch out for staying too long in one zone—the chemical structure of foam deforms easily.
When testing alternative setups, many home embroiderers experiment using baby lock magnetic hoop systems; their firm surface tension mirrors industrial hold strength without heavy clamps.
Recommended Tools and Materials
- 3D Puff Pro tool for edge detail
- Variable-temperature heat gun
- Richardson 168 cap or similar structured model
- High-quality satin thread
- Calibrated multi-needle embroidery system
Those moving into production-scale cap work might pair their multi-needle units with magnetic hoops for bai embroidery machine—sturdy frames that manage thicker media securely through repeated stitches.
