Getting Started with PE Design 10: Setup Essentials
Before creativity kicks in, configuration matters. Opening PE Design 10 welcomes you with choices: start new or refine an older design. You’ll need the Brother USB dongle plugged in for full functionality.
Understanding the Software & Hardware
The software pairs seamlessly with Brother embroidery machines. A nestled companion piece is the memory card, which slides into your dongle—essential for transferring completed PES files. Crafters in comment sections note this simplicity as a lifesaver compared with more complex systems. One wrote that it “saved their investment” because previous software felt impossible.
Setting Your Hoop Size and Fabric Type
Whether you’re using a 4x4-inch hoop on an SE400 or a 5x7 setup, matching digital settings to physical gear prevents frustration later.
Denim’s highlighted as a useful base fabric—not only tough but familiar—great for bag patches or jeans embellishments.
Don’t forget to check the embedded stabilizer suggestions.
Digitizing Your First Graphic: The Auto-Punch Feature

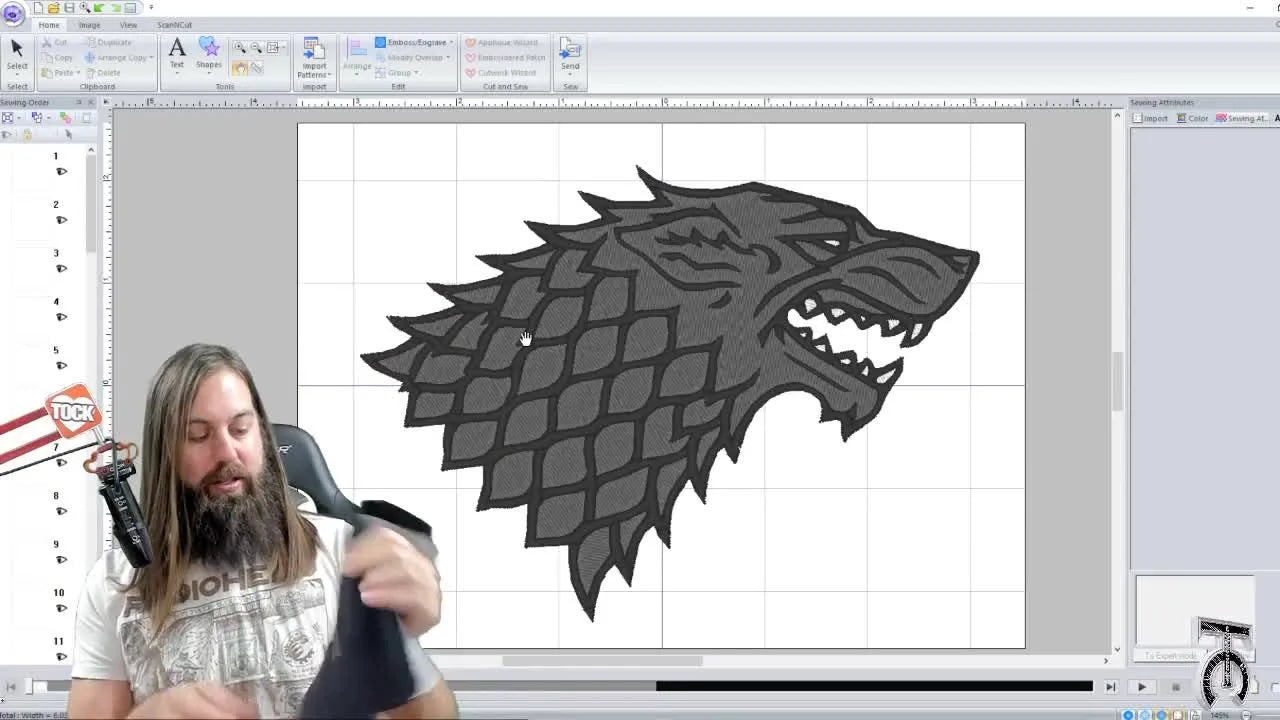

At roughly two minutes into the tutorial, Tock imports an image of the Game of Thrones Stark sigil to demonstrate auto-punch. The feature reads tone and color to translate pixels into stitches.
Importing Your Image and Masking
Explore the ‘Image’ tab → ‘Auto Punch.’ The mask stage defines boundaries; full rectangle masks are common, but custom shapes create variety. Users curious about acceptable file types asked in comments—confirmed best results come from JPG or opaque PNG images.
Adjusting Colors, Noise, and Sensitivity
Set maximum colors (here: three—black, white, gray). Noise reduction zeroes out to lock every pixel, and segment sensitivity on “high” ensures fine details remain crisp. The clear checkerboard indicates transparency removed successfully.
A balanced color setup translates directly to your embroidery machine, letting its sensors follow digitized order precisely. Beginners often test small shapes first to learn how each algorithm responds.
The Importance of a Clear Background
The transparent backdrop guarantees no accidental fill pass behind main artwork. As shown in fullscreen, the wolf’s jaw detailing remains bright white—exactly as envisioned. A clean starting file saves hours of repair later.
To achieve the same alignment when hooping, some artists attach designs using reusable magnetic accessories—consider sturdy magnetic hoops for brother embroidery machines that simplify re-hooping between runs.
Refining Your Embroidery: Manual Edits and Stitch Control
Once auto-punch has built the basic map, real creative control begins. Tock ungrouped the shapes to edit gray and black regions independently.
Ungrouping Elements for Precise Modification
Right-click → Ungroup separates distinct color blocks. This enables independent texture adjustments and cleaner transitions on curving shapes like the Stark wolf’s jaw.
Mastering Fill and Satin Stitches
Each texture tells its own story: fill stitches cover broad areas with consistent density; satin stitches stretch threads over narrow outlines for shine. Switching gray zones to fill eliminates unwanted striping.
Conversely, dark outlines often look best as satin to emphasize edges.
> From the comments: Many newcomers found this swap clarifying—one even realized their “fur going the wrong way” came from incorrect stitch type assignment!
Controlling Stitch Direction for Uniformity
The ‘Sewing Attributes’ panel allows manual direction adjustment. Tock fixed uneven shading by setting all gray areas to 135 degrees, creating smooth diagonals that mimic real fur texture.
This nuanced control resonates with advanced users who seek realism—especially when moving into portrait or logo work.
Advanced Digitization Techniques
After the Stark patch, the video broadens horizons: transforming photos, inventing shapes, and leveraging creative texture tools.
Transforming Photos with Photo Stitch
Select Photo Stitch for portraits or scenic images.
You’ll disable page color (“Do not sew”) and opt for fine stitches with shorter run length for detail. Adjusting brightness and color count enhances realism. It’s normal if the preview looks messy—final stitches blend far better.
Crafting Custom Shapes, Text, and Free-Form Designs
Through the ‘Shapes’ tab, users can design red rectangles, apply gold zigzag borders, and add vivid blue text—“Sewing is Cool.”
Try altering fill stitches or border types for tone variation.
Feeling adventurous? Trace or sketch freely with the drawing tool; your stylized squiggles instantly convert to embroidery paths.
This segment inspires those who “like to start from scratch,” echoing a viewer who commented the same.
> Creative twist: For larger names or patterned edges, specialized hoop accessories such as mighty hoop brother help keep fabrics taut through heavier stitch passes.
Using Programmable Fill for Unique Textures
Textures add life without changing thread colors. The ‘Programmable Fill’ menu provides multiple patterns to overlay onto existing fills. Tock demonstrated this on his logo, turning plain sections into lively stitched surfaces.
Many makers compared this to digital brushes—each pattern gives volume and direction, transforming simple fields into conversation pieces.
Optimizing Your Design: Density, Order, and Patch Creation
Adjusting Stitch Order for Layering Success
Layer order determines visual depth. The software’s timeline lets you reorder easily, placing base colors underneath outlines. Following this ensures smooth continuity on intricate logos.
Increasing Stitch Density for Polished Results
Tock raised stitch density on purple logo edges, showing instant improvement in clarity and edge fidelity.
The trick lies in moderation—too dense strains needles, too sparse risks see-through surfaces.
Creating Patches with the Embroidered Patch Wizard
Another highlight—the “Embroidered Patch Wizard.” It automates satin borders and insert cut lines around any shape. Efficiency soars when multiple patches share outlines.
Pair this with temporary spray adhesive or the precision of brother hoopnetic magnetic sash frame for repeat accuracy. Many commenters loved seeing this step turned into just a few clicks.
Final Steps: Preview, Save, and Transfer
Preview your final run by hitting “Play.” The bottom status bar animates the stitch sequence across all colors, letting you verify every transition.
When satisfied, save in PES format—ideal for Brother machines. Need another brand? Simply export to DST or others supported. Use a memory card and “Write to Card” to send it via dongle to your machine.
> From the comments: Several creators solved save issues once they plugged in their dongle; the trial disables save/export.
Many enthusiasts have taken these steps further—embroidering on denim jackets, bags, and even cosplay patches featuring crisp borders and bold satin edges. Invested users note that the techniques translate perfectly to upgraded hardware like the brother persona prs100 hoops for small-run businesses.
A sample embroidered Stark sigil patch concludes the tutorial in shining silver and black—true to the source art’s spirit.
Closing Thoughts
Digitizing is equal parts science and instinct. From setting up PE Design 10 to adding textures or fine-tuning density, it’s about building confidence. As Tock says mid-video, once your preview looks right, your machine will follow suit. Whether you’re experimenting with heirloom photos or quirky typography, this knowledge unlocks your embroidery’s full storytelling power.
If you’re eager to dive deeper, the channel contains updates on PE Design 11 and advice for managing hoop tension with innovative gear like magnetic hoop for brother embroidery machine. And remember—every great design begins with a single pixel mapped into a single stitch.
