Tanya Owens Designs demonstrates how to create blended fills in SINGER PSW Deluxe using the Degrade feature. The tutorial explains how density, stitch angle, and layer order affect embroidery color transitions, ending with a refined, professional-looking result.
Table of Contents
Understanding Color Blending in Embroidery
Embroidery color blending is about letting one hue fade gracefully into another. In PSW Deluxe, this is accomplished through the Degrade feature—by adjusting stitch density across a chosen area so lighter sections allow underlying colors to peek through.
This tutorial demonstrates the overlay of orange and yellow blocks, illustrating how opposite stitch directions create the optical illusion of a continuous gradient.
What is Color Blending?
Blended fills rely on alternating stitch angles. When the top layer faces 180° opposite the base, thread reflections mix, producing a third tone not present in either spool.
The Role of Degrade in PSW Deluxe
The Degrade feature acts like a digital dimmer for density—it progressively spaces stitches within one object.
Selecting this option in Embroidery Settings is what gives each color its soft edge. Keep in mind, stitches are thread, not paint; blending finesse requires size and spacing.
For hobbyists experimenting with advanced hoop systems—say magnetic embroidery hoops that hold fabric securely—consistent tension plays a subtle part in even stitch laydown.
Importance of Stitch Angles and Density
Angle contrast is crucial. Tanya recommends the first layer at 0° and the second at 180°, ensuring the stitch paths cross naturally, not stack mechanically.
When density sits between 3.5 and 5.0, coverage balances color and texture.
Essential Concepts for Quality Blends
Smooth gradients begin long before you click Stitch It. Understanding size, stitch length, and boundaries keeps colors from clashing.
Stitch Length and Shape Size Considerations
Short stitches tend to produce choppy results. Make your blended shapes large—letters over one inch tall yield smoother transitions.
A stable hooping setup, such as magnetic embroidery hoops for brother pr1055x, helps preserve that scale without fabric puckering.
Optimal Density for Background Coverage
Proper density doesn’t just affect color—it determines texture and durability. A higher numerical value widens gaps between stitches, letting the base shade breathe.
Why Outlining Your Blends Matters
A subtle satin outline acts like a picture frame. It hides raw edges where color layers meet and refines the final artwork.
Choosing the Right Tools in PSW Deluxe
PSW Deluxe provides numerous drawing tools. Among them, the Freeform, Ellipse, and Lettering options respond best to Degrade adjustments.
Recommended Tools for Blending
The Ellipse Tool is used in this project because its curves emphasize gradient flow.
Tools like Column also support layered fills but demand advanced control over direction lines.
When testing new designs on multi-needle hardware, creators using barudan embroidery machine hoops or similar frames will find that stable hoop pressure maintains consistent overlap.
Using Hyperfont for Lettering Blends
Textual gradients look stunning when each letter becomes its own block. Generate new lettering through Hyperfont, then apply individual Degrade settings per glyph for creative typography.
Step-by-Step: Creating a Blended Ellipse
Tanya’s demonstration packs science into simplicity. Follow these exact adjustments for repeatable results.
Setting Up the First Degraded Layer
- Select the Ellipse Tool and draw a shape.
- Use 'Normal Fill' and pick orange.
- In Embroidery Settings, set Density to 4.5, Stitch Angle to 0°, and enable Degrade.
- Choose Step Satin, deselect Jagged Edge, apply, then stitch.
The screen now shows an orange ellipse whose density fades from bottom to top.
If you often juggle multiple fabric samples, leveraging secure clamps like snap hoop monster for babylock ensures the test swatches stay perfectly aligned during stitch simulations.
Copying, Pasting, and Aligning Layers
Exit digitizing mode, duplicate the ellipse, and align the copy precisely atop the original. Use gridlines for perfect overlap.
A loose fit can distort perception of the gradient; precise alignment is what transforms a dual-tone into a real blend.
Adjusting the Top Layer for Blend Effect
Change the duplicate’s color to yellow. Enter Edit mode, flip Stitch Angle to 180°, disable the underlay, enable the Satin Outline (width 20), and apply.
Think of this step as color choreography—the reversed angle weaves the two fills together naturally.
For those exploring industrial setups, compatible holding frames such as magnetic hoops for brother embroidery machines can stabilize larger patterns while maintaining identical registration between multiple tests.
Achieving the Perfect Color Gradient

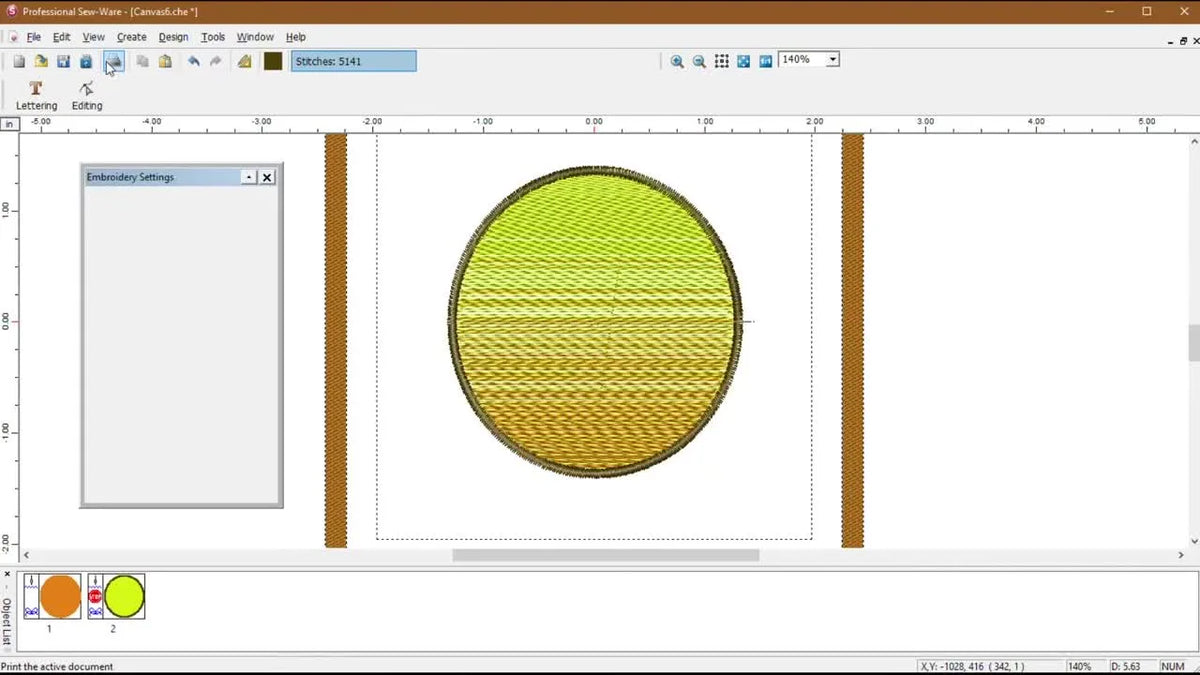

Once both layers overlap, the blend appears vivid yet natural: yellow transitions into rich orange across the ellipse.
Flipping Stitch Angles for Optimal Blending
Always keep angles exact opposites—0° vs. 180°. This alignment prevents moiré lines and creates silky transitions that appear hand-painted.
Users experimenting beyond PSW Deluxe can still emulate these digital fundamentals on modern Brother or Janome platforms, with proper tension control using gadgets like baby lock magnetic hoop.
Adding a Finishing Outline
Finally, applying a brown satin border unifies the design. It conceals edge inconsistencies and offers a professional sheen. As Tanya notes, “Outlines make blends look intentional rather than accidental.”
Tips for Mastering Color Blending
Mastering gradients requires equal parts patience and repetition.
Practice Makes Perfect: Software and Stitch-Outs
Preview effects digitally, then test-stitch on real fabric—the dual process reveals how light affects thread reflection. Practice helps identify if densities require tweaks.
If you plan multiple samplers, durable frames like magnetic embroidery hoops reduce hoop distortion between runs.
Further Resources for Color Theory in Embroidery
Color blending with threads borrows heavily from classic art theory. Understanding complementary hues rewards you with subtler transitions, even when using limited spool libraries. Tanya’s written Digitizing with PSW Deluxe Embroidery Software offers deeper exploration into digitized color management. Beginners might also test their skills on compact sets compatible with magnetic embroidery frame systems to standardize test results.
Takeaway: Color blending isn’t magic—it’s math, art, and mechanical precision in harmony. Once you grasp density and directional interplay, PSW Deluxe turns every gradient into embroidery poetry.
