Transforming Flat Embroidery: The Power of Depth
The horse motif introduces how a single-direction fill can appear flat, while varied stitches create contour and energy.
The video reveals how even with fewer stitches, thoughtful stitch types bring more life to a design. Seasoned embroiderers know that adding dimension is not about quantity—it’s about technique. A precise stitch roadmap minimizes thread breaks and creates artistry.
Understanding Flat vs. Dimensional Designs
Flat designs use uniform fill stitches resembling printed silhouettes, common in logos. The detailed version relies on targeted variation: short stitches emphasize curves, long rails define shine, and alternated angles evoke musculature under the surface.
The Role of Stitch Types in Creating Depth
Satin and run stitches act like light and shadow. A satin stroke along a contour mimics highlights, while run outlines provide anchors. Whether working with a Magnetic Embroidery Hoop or standard frame, understanding that stitch direction defines form is key. Many modern embroiderers pair EL’s features with accessories such as magnetic hoops for embroidery machines to maintain a secure hold during precision detailing.
Setting Up Your Workspace in EL Software
The first step is all about preparation. In the software, a new design file becomes your canvas.
Import the flat reference image as a backdrop using the backdrop icon. Once loaded, access the Properties window to resize; this video scales to 2.5 inches square for a chest logo application.
Disable the grid for a clear view, and centralize the image. A clutter-free layout directly influences accuracy as you plot points and visualize overlaps.
Essential Software Settings: Smart Join & Snap to Anchors
Enable Smart Join to ensure each stitched object seamlessly connects without jump trims.
The tutor then disables Snap to Anchors for freehand precision—useful when drawing organic forms like hair or tails. For artisans using heavy fabric clamps such as magnetic embroidery hoops for brother or similar, Smart Join becomes even more vital—it helps keep momentum flowing when large hoop adjustments are limited.
Digitizing Techniques for Enhanced Detail
A detailed embroidery demands calculated strokes, not random fills. The video focuses on balancing artistry and efficiency.
Mastering Classic Satin: Point-Counterpoint for Angles
The Classic Satin tool is the backbone of texture building. It uses point-counterpoint clicks to shape stitches and simultaneously define angles.
Linking each area using Smart Join minimizes trimming and ensures continuous motion. As the tail gains form, every strand overlaps slightly to simulate natural layering.
For hobbyists using multi-needle machines, supportive magnet frames like magnetic embroidery frames can help preserve registration while practicing these small-radius stitches.
Utilizing the Run Tool for Seamless Connections
The Run tool (keyboard “1”) connects parts without visible threads.
Think of it as embroidery’s subway system—quick routes under main lines, invisible once satin covers them. This simple technique prevents jump stitches and saves time, particularly when moving between limbs and mane sections.
Applying Satin Stitch for Complex Shapes and Manual Inclinations
When larger or irregular sections appear—such as the horse’s body—switch to the full Satin tool.
Unlike Classic Satin, it lets you define the shape first and set inclinations afterward using drag points. These inclination strokes act like guide arrows for thread shine.
To stabilize wide satins, creators sometimes pair structured hoops like magnetic embroidery hoops for tajima—perfect for balancing thick fabrics with precision orientation.
From Software to Stitch: Preparing for Embroidery
After tracing every contour and refining stitch angles, it’s time to wrap up and visualize both designs side by side.
Finalizing Your Digitized Design
Toggle off the backdrop and recolor all elements black for final comparison.
Copy and paste the detailed version next to the original. The contrast is striking: identical dimensions, yet one pulses with life.
Use the Select All command or Ctrl+A for unified color adjustments. This ensures the output matches real-world thread tones.
For production enrichment, a hoop such as magnetic hoop for brother pe800 supports even tension when preview-stitching fine satin details before mass runs.
Saving in Multiple Formats (JDX, DST, PES, JEF, HUS)
Save twice: first in JDX (editable, object-based); then export to machine formats.
This preserves editable data while ensuring embroidery compatibility. As commenters clarified, JDX functions similarly to EMB in Wilcom—it retains properties for future refinement.
The Embroidered Result: Flat vs. Dimensional Horse

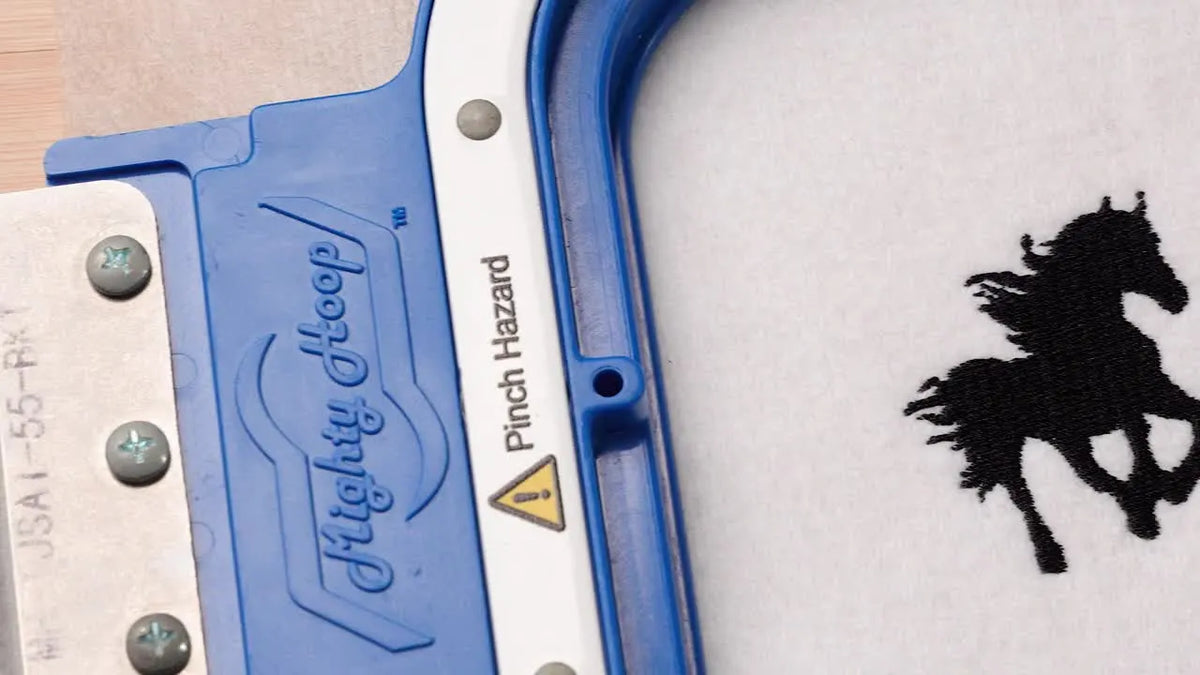

Once stitched on white fabric, the difference is undeniable. Both designs used the same thread and machine, yet the enhanced version looks sculpted, even tactile.
Visual Comparison of Texture and Detail
The flat version relies on uniform horizontal fills, while the detailed model layers satin contours across the horse’s muscles. This interplay of sheen mimics light modeling, creating organic curves on cotton.
When testing similar depth effects on other machines—such as a bai embroidery machine or compact domestic unit—remember that hoop tension and thread pathing influence how light falls across satins.
Surprising Stitch Count Differences
Fewer stitches, richer result. The revived design used about 700 fewer stitches than the flat original. That’s the paradox of intelligent digitizing: efficiency amplifies beauty.
From the comments: Viewers praised the use of red during digitizing (easier visibility) and requested tutorials on the flat design process too.
Advanced Tip: The Importance of Underlay
Underlay stitches act as scaffolding beneath satin and fill. The creator adds a parallel underlay—an extra zigzag layer to stabilize fabric and enrich surface shine. Without it, wide satins may flatten or pucker.
Adding depth is not about adding thread; it’s about controlling thread behavior. With deliberate planning and angle strategy, dimensional embroidery becomes an expressive art form.
From the Comments
Questions ranged from software settings to file formats: One viewer asked why use JDX—turns out it’s EL’s editable equivalent of EMB. Another wondered how to view width during digitizing—Classic Satin shows it by default. * Enthusiasts look forward to 3D foam tutorials in future lessons.
These insights show how an engaged community enriches every project—proof that embroidery learning thrives on shared curiosity.
Whether you’re practicing on a home hoop or an industrial rig, this exercise underscores a timeless principle: depth comes from intention, not complexity. Sharpen your visualization, refine your angles, and watch your flat stitches rise to life.
