Follow along with this complete guide based on Bernina Jeff’s walkthrough of the Bernina 770 QE Plus. You’ll learn how to properly calibrate your hoop using the correct purple template, and how to make the most of the foot recognition system added in the Plus upgrade. Perfect for owners transitioning from a 770 to the 770 QE Plus.
Table of Contents
Welcome to Your Upgraded Bernina 770 QE Plus!
The Bernina 770 QE Plus is a refined powerhouse for those who love precision. With its expanded screen interface and smarter calibration tools, it invites you to interact with the machine in a new way.
Understanding the New Features
The Plus edition mirrors much of the beloved 770 interface but introduces the large touchscreen as its centerpiece, giving you clearer icons and quicker access to settings.
If you previously owned the standard 770, your workflow remains familiar—only now it’s more visual and guided.
The Importance of Setup After Upgrade
A new firmware install or machine upgrade can slightly alter the calibration memory. Calibrating the embroidery hoop establishes a baseline for accuracy, letting your stitches land where they should. Even a millimeter off can shift a motif—particularly when designs reach the edge of the hoop’s field.
Step-by-Step Embroidery Hoop Calibration
Getting consistent embroidery results starts here.
Why Calibration Matters for Embroidery
When the embroidery hoop and machine aren’t perfectly synchronized, your design’s center drifts. A clean calibration ensures the needle knows the hoop’s geometry exactly—top to bottom, left to right. Think of it as tuning your instrument before playing.
Choosing the Right Template: Purple vs. Orange
Jeff emphasizes one rule above all: always use the purple template. The older orange one was built for legacy Berninas like the 440 and 430.
If used here, the machine will sense the wrong dimensions, misreading the hoop’s true center.
Precision Alignment: Needle to Template
Navigate to Settings → Embroidery Features → Hoop Calibration.
Follow the prompt to lower feed dogs, attach the hoop, then insert the purple grid. Make sure the “Bernina” label on the template reads right-side up.
Two small gray triangles inside the hoop should face each other—indicators that the frame is locked correctly.
Using the screen’s buttons, nudge the needle until it sits dead center of the grid’s middle hole.
Then tap the green checkmark to register the calibration.
For those comparing systems like the Bernina, broader options such as magnetic embroidery hoops for bernina provide compatible ways to manage hoop stability across projects.
Mastering Bernina's Foot Recognition System
After calibration, Jeff turns to one of the Plus model’s most discussed features: foot recognition.
How Foot Recognition Works on the 770 QE Plus

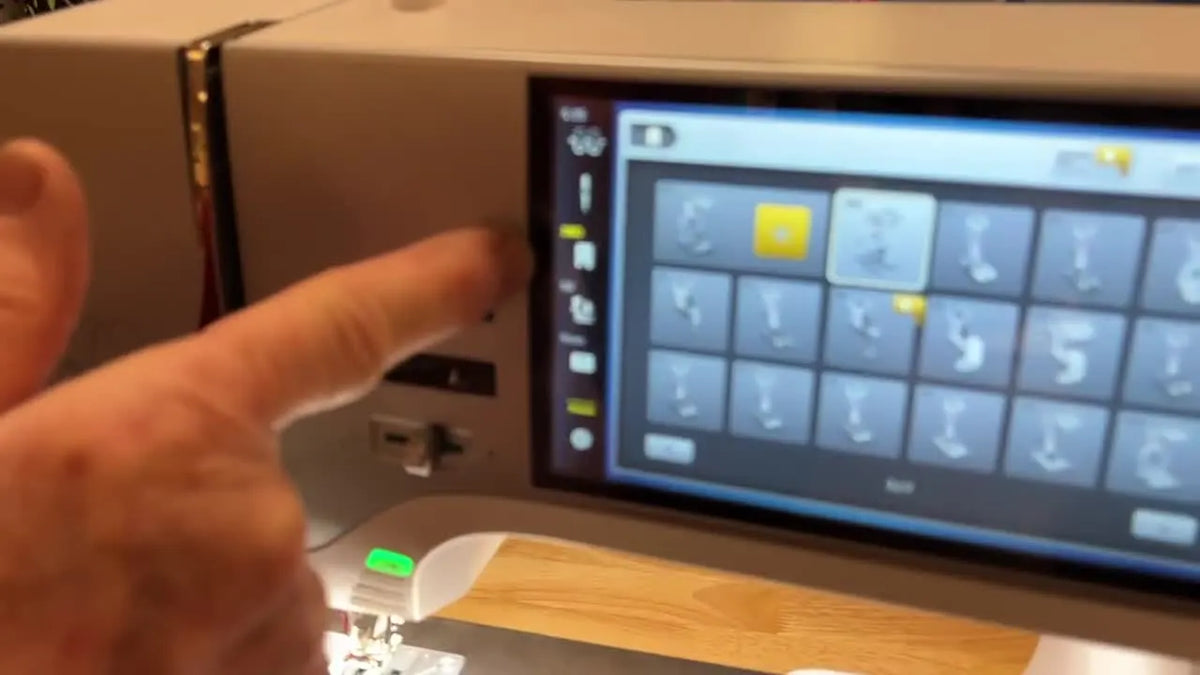

Unlike earlier models, the Plus requires the user to manually select which presser foot is attached. Mount the foot, then open the icon list on-screen. Choose the exact foot number—say, 20D or 1C—to sync the physical attachment to the digital setting.
When sewing, if these mismatch, the machine won’t start and shows a visual warning. It’s a smart little safeguard that saves broken needles. For comparison, accessory makers also develop alternatives like bernina magnetic hoop that complement modular field setups.
Selecting the Correct Presser Foot on Screen
Switching between embroidery and sewing means toggling between specialized feet. For a 20D, lower the dual-feed mechanism; for a 1C, keep it up. Then select the matching icon.
If you forget, the screen issues a polite alert.
Once you confirm the correction, you’re clear to sew again.
Troubleshooting Foot Recognition Warnings
When you encounter persistent pop-ups, recheck two elements: that the right foot number is selected, and that the feed dogs are raised or lowered according to mode. Incorrect configuration often masquerades as a recognition fault.
While Bernina precision is standout, similar manual foot confirmations appear on machines from other lines—systems used on brother embroidery machine models, for example, aim to replicate this safety logic.
Quick Tips for Efficient Foot Selection
Scrolling through page after page of presser feet wastes studio time.
Using the Numeric Keypad for Foot Search
Look for the magnifying glass icon paired with numbers 0–9. Tap it, input the foot number—say “97”—and jump right to that page. For frequent swaps between patchwork and quarter-inch feet, this is a lifesaver.
Accessory caddies—universally adapted in many brands—mirror this search-worthy logic so even when you’re switching from a 57D to 97D, system recognition stays smooth.
Some artists use productivity setups combining Bernina feet and add-on frames such as dime snap hoop monster bernina that help them position fabrics faster.
Understanding 'D' Feet and Dual Feed Engagement
Whenever you use a 'D' foot (like the 20D or 97D), lower the dual feed mechanism with the foot raised to its highest position. This ensures the mechanism meshes precisely in the rear slot.
If you admire the precision feed concept, note that modular options—like magnetic hoops for bernina embroidery machines—extend similar engagement stability during embroidery rather than feed.
Maintaining Your Bernina: Beyond the Basics
Experts recommend recalibrating whenever your machine undergoes an update or you notice design drift. Routine calibration maintains confidence that your digital pattern matches its real-world results.
Lowering feed dogs for embroidery and raising them for sewing soon becomes second nature.
Additionally, Jeff showcases the numeric search for foot types such as 57 and 97—perfect not just for time savings but to verify that each accessory fits the correct job. Pairing this mindful tech use with quality add-ons—like dime magnetic embroidery hoops for brother or magnetic embroidery hoops for janome when working across multiple machines—builds universal habits of precision.
> From the studio bench: Keep a sticky note taped near your Bernina: “Select your foot!”—it remedies more calls to tech support than you’d imagine.
Frequently Asked Questions
Why should I calibrate after upgrading? Every firmware shift resets certain internal positions. Calibration redefines the machine’s sense of center.
Which template is correct? Always the purple one. The orange variant is reserved for older Bernina 440 or 430 series.
I’m seeing warnings when sewing. What now? Confirm the displayed foot matches the one attached. If you’re still in embroidery mode, raise those feed dogs.
How do I find foot 97 faster? Use the numeric keypad—searching saves you seven pages of manual scrolling.
For a reliable calibration workflow, remember: correct tools, deliberate steps, and the discipline to double-check alignment. These basics separate clunky setups from professional-grade results.
And finally, if you’re ever scaling your studio, the consistency lessons here transfer. Magnetic hooping systems—from magnetic embroidery hoops to magnetic embroidery hoops—share the same foundation: calibration, recognition, and precision.
Happy stitching!
