From Vector to Stitch: Your BasePac 10 Digitizing Handbook

Introduction to Vector Data in BasePac 10

BasePac 10 lets you reuse vector files from design programs inside your embroidery workflow. Britta starts by importing a spaceship DXF and demonstrates how each line retains its geometry — meaning you no longer trace shapes manually.

Vector importing saves enormous time for technical illustration and logo work. It’s especially helpful when transferring artwork between different embroidery setups such as those on multi-needle machines or setups using magnetic embroidery hoops.

Why use Vector Data for Embroidery?

Precision and consistency lead every stitch. Vector paths capture anchor-to-anchor data, ensuring that curves and edges match the original artwork. Unlike hand tracing, vectors preserve scale and proportion across repeated projects.

Supported Vector File Types

DXF is Britta’s go-to because nearly any graphics suite can export it. BasePac 10 also reads Adobe Illustrator files up to version 8 — perfect when you’re transitioning older artwork.

Preparing Your Workspace and Importing Data

Britta begins by opening a new design, then choosing File › Import › Vector Data. Setting one key parameter — the DXF-unit size to 1 mm — makes sure your imported drawing doesn’t shrink or balloon unexpectedly.

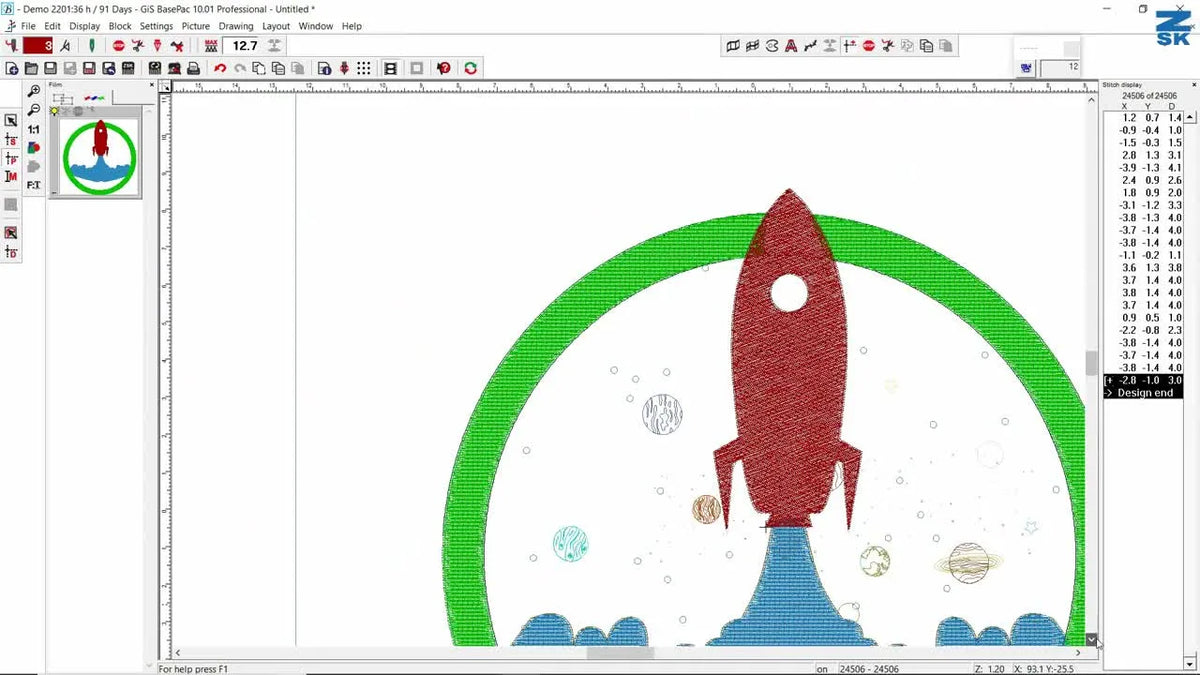

A crisp preview confirms the import scaling before moving into design mode. The spaceship outline now sits ready on the BasePac canvas, neatly centered and to scale.

Starting a New Design

One habit worth adopting: name and save the project just after import. Keeping organized versions protects edits if your vector data later changes. Consider color-coding thread layers, especially when testing out fill patterns on composite sections. When comparing different hoop systems like magnetic embroidery hoops, consistent layer naming also simplifies multi-machine setups.

Importing DXF and AI Files (and Important Settings)

The single most critical import setting is that DXF unit. Set it to 1 mm to match the original drawing dimensions. Forget that, and stitch density may jump off-scale.

The Core of Digitizing: Using the Drawing Tool

Once the design’s on screen, Britta activates Punching / Coordinate Mode. This unlocks full control over each point placement.

She then selects Insert Manual Stitches with Complex Fill, turning static lines into stitchable surfaces.

The star of the process is the Use drawing tool — accessible via the toolbar or the X key — which lets you click directly on imported lines to adopt them as stitch edges.

Selecting Lines and Understanding Curve Direction

Click once on a vector line to highlight it; click a second time to define a starting point. Small arrows immediately reveal the direction data embedded in the line. That direction defines how the stitches will flow.

If those arrows run opposite to your intended stitch orientation, simply trigger Reverse curve from the contextual menu or right-click shortcut.

Reversing Curves for Optimal Stitch Flow

When Britta reverses a curve, BasePac 10 keeps the geometric accuracy but flips the running order so fills follow a natural embroidery movement. This control resembles optimizing stitch travel for industrial frames such as magnetic hoops for embroidery machines, where predictable direction prevents thread pull or distortion.

Creating Complex Fills with Precision

After outlining with Use drawing tool, Britta double-clicks to mark corners and closes the shape automatically — no manual node tracing necessary. A red path appears to confirm the capture.

Next, she picks the Stitch Direction tool, clicks two anchor points to define stitch flow, and lets the software calculate. One tap of Enter renders a beautiful blue-filled section — the rocket’s flames.

Step-by-Step Outline Creation

Every vector segment you include reduces layout guesswork. You can chain segments by repeatedly pressing the Use drawing tool icon — a practice widely adopted across embroidery categories, from fashion panels to signage. This same efficiency benefits users managing hardware like magnetic embroidery hoop embroidery fixtures that rely on exact registration between designs.

Defining Stitch Direction for Visual Impact

Britta shows how slight angle shifts can create depth. Defining the correct direction also reduces gaps when the shape borders another. Consistent directionality minimizes thread-on-thread buildup, allowing denser fill areas to stitch smoothly without puckering.

Advanced Digitizing: Holes and Division Lines

With foundational fills completed, Britta turns to the rocket body — a larger form requiring an internal cut-out and structural separations. She adds a quick fixing stitch, switches colors for clarity, and begins digitizing the main body.

To insert an internal opening, she selects Create Hole and uses Use drawing tool on an inner oval vector — BasePac 10 automatically recognizes it as a void space.

Next comes the Division Line tool. Each click on a straight vector inserts a stitch break that splits fill angles or densities.

This approach enhances realism — especially valuable for larger hoops like embroidery hooping station magnetic hoops, where long stitch paths benefit from subtle directional variations.

Britta stresses one caveat: re-click the Use drawing tool after each division to stop them from connecting. The payoff is a clean result with an intact perimeter, single hole, and neat diagonal divisions.

Tips for Success with Vector Digitizing

Practice truly matters here. Britta advises patience while clicking small adjacent lines — those direction arrows can point both ways, and it’s easy to miss a segment. When that happens, Reverse curve is your best friend.

She also notes that imported designers often use different coordinate origins. Try working from the central axis outward, adjusting stitch directions symmetrically.

Patience and Practice are Key

Repeat these techniques on simpler forms until linking lines feels second nature. Experimenting on scrap fabric stabilized in a dime magnetic hoop or similar system helps simulate production runs without resetting the machine every iteration.

Mastering Line Selection and Direction

Each click becomes faster with muscle memory. Over time you’ll instinctively predict when to reverse a curve and when to let the software follow existing direction. As Britta puts it, the combination of line logic and stitch strategy unlocks the full power of BasePac 10.

From the Comments: Automation and Technical Embroidery

One viewer asked about automating backtacks and scripting repetitive vector shapes for industrial tasks. While the tutorial itself doesn’t cover scripting, Britta replied that ZSK’s EPCwin software might fit technical embroidery needs and invited direct contact for deeper advice.

That exchange underscores a broader point: technical users can pair BasePac 10 with complementary systems to handle production-scale automation — particularly useful when expanding into multi-head setups or integrating with hardware families like zsk hoops and other precision-fit fixtures.

Quick Check

Confirm DXF unit = 1 mm before importing. Use Use drawing tool instead of tracing manually. Watch line arrows for direction; reverse when needed. Define stitch direction immediately after closing each shape. * Save versions often — it’s easy to iterate without losing progress.

Britta closes by reminding digitizers that mastery comes through repetition and attention to vector flow. Whether you’re crafting artful logos or engineering precise technical forms, these foundations in BasePac 10 support professional-grade results every time.
