Set up Inkscape and InkStitch on your Mac and learn the foundations of free embroidery digitizing. This detailed walkthrough shows you every step—from installation and troubleshooting on macOS Catalina/Big Sur to tracing, layering, and exporting your design as a PES file ready for stitching. Ideal for creative beginners ready to bring digital art to fabric.
Table of Contents
Getting Started with Inkscape and InkStitch
Inkscape is a vector design program beloved for its open-source flexibility. The team starts right at inkscape.org—download, drag the icon into Applications, and open.
When you open it the first time, you’ll approve a small security notice. Your blank artboard means success and you’re now ready to extend Inkscape’s abilities with InkStitch.
Installing InkStitch isn’t difficult: visit inkstitch.org, click Install, choose macOS, and unzip the download.

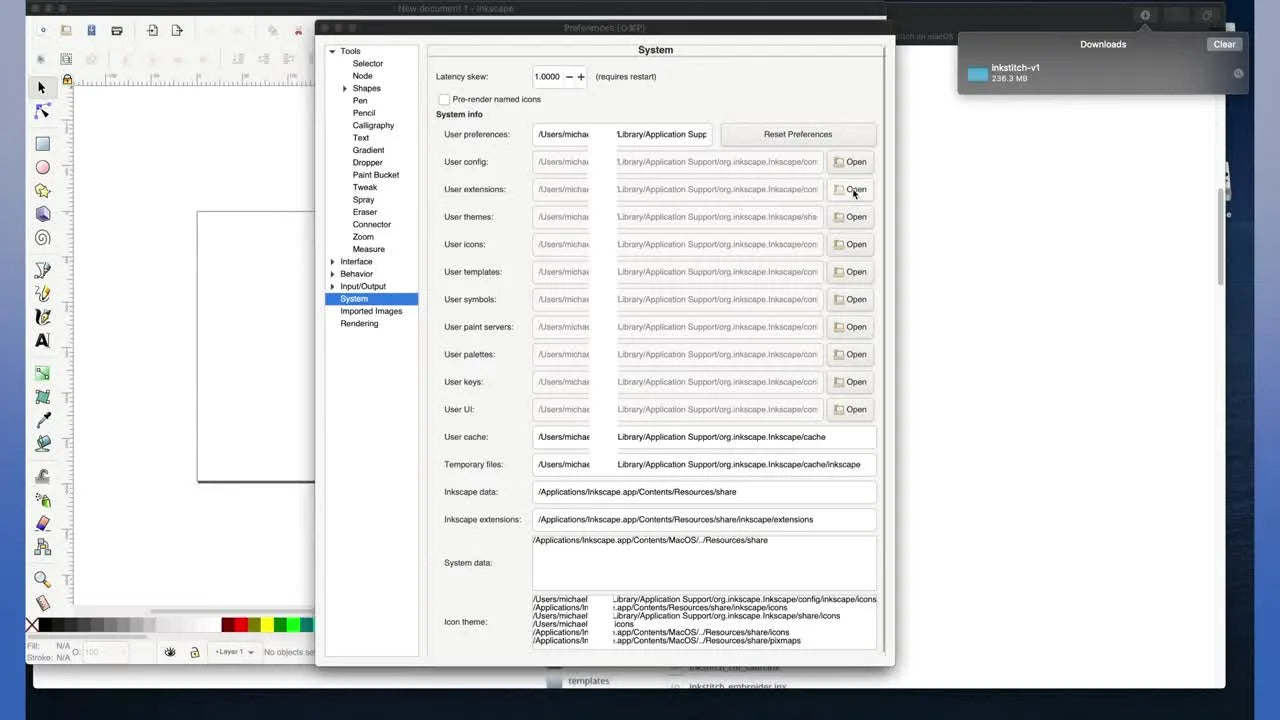

You’ll then move those files into Inkscape’s user extensions folder.
If you plan to stitch with a modern machine such as a Brother model, you can later test your output on real fabric using compatible accessories like magnetic hoop for brother pe800.
Troubleshooting InkStitch on macOS
Catalina and Big Sur introduced stricter software signing, so InkStitch may appear “greyed-out.” The workaround? Copy the small code snippet provided on the InkStitch site into Terminal.
After pressing Enter, restart Inkscape. When you reopen it, you should see all InkStitch menu items fully active under Extensions > Ink/Stitch—that’s your success checkpoint.
Quick Check
If InkStitch Param still won’t open, confirm that the command pointed to your true extension folder. Missing that path is the number-one issue.
Setting Up Your Workspace with Custom Templates
Now that both tools cooperate, shape your digital canvas to match your physical hoop. Under File > Document Properties you can set display units, page size, and even enable a checkerboard background for clarity.
Many embroiderers set width and height to mimic common hoops—4×4 inches or 5×7 inches. Saving this setup as a named template means you’ll always open the same stitchable layout next time.
If you use specialized frames like magnetic hoops for brother embroidery machines, designing to the exact dimensions prevents cropped or misplaced stitches in production.
Watch Out
Templates differ slightly depending on hoop brand. Measure your sew field carefully before saving defaults.
Designing Your First Embroidery Pattern
With your hoop environment ready, import an image—here, a simple bunny outline. Use File > Import to bring in PNG or JPG artwork.
Rename Layer 1 to Import and scale while holding Control to preserve proportions. Then create a new Tracing layer on top and grab the Bezier Tool to sketch along the image edges.
The node editor lets you fine-tune curves and corners. Many beginners liken it to drawing with string on paper.
Once the main shape feels right, copy it. One version will serve as your fill (bottom layer), the other as a satin border (top layer). Remove the fill on the border copy, give it a colorful stroke—say 3 mm—and move each into separate layers.
Layer order matters: InkStitch stitches layers from bottom up. Keeping fill beneath satin ensures clean outlines. Beginners working with compact single-needle machines such as the brother vr embroidery machine often find this organization critical to auto-tie-offs.
From the Comments
Viewers asked how to isolate fill layers after copying outlines. The creators explained selecting “no fill” (X on color palette) for the top copy, applying a stroke via Shift-click, and moving it to a new layer. Simple but powerful.
Digitizing and Exporting Your Design
Select the entire drawing and go to Extensions > Ink/Stitch > Params. A preview window simulates the running and satin stitches, giving you adjustable sliders for spacing and density.
Test your design with Simulate > Realistic Preview—it shows exactly how thread will travel.
When satisfied, go to Embroider > Save As, choose PES, and name the file.
Watch Out
If an error pops up during Params loading, check for open or overlapping paths. Redrawing tight corners fixes most issues. Remember, InkStitch reads continuous vectors as stitching guides.
Pro Tip
Those upgrading to larger multi-needle systems—like using mighty hoops for brother pr1055x—can frame multiple color sections at once. Scaling your design to larger hoops in Inkscape before exporting saves re-hooping time.
From Screen to Stitch: Embroidering Your Design
Copy the PES file to a thumb drive, plug it into your embroidery machine, and select the design.
Prepare fabric in a hoop with stabilizer, maybe using magnetic versions for easier alignment such as brother magnetic embroidery frames. Start stitching and sit back—your digital bunny becomes real threadwork.
After unhooping, you’ll see tidy fill texture and a neat satin edge. The creators kept default InkStitch parameters, proving that clean results don’t require intricate tweaking.
Final Thoughts
The biggest takeaway: organize by layers. Build from fill to top-stitch, save templates matching your brother embroidery machine hoops, and verify every setting in the preview before exporting. Once mastered, the same workflow applies to both simple icons and full-scale monograms.
Many viewers commented that despite quick pacing, the video helped them realize digitizing doesn’t demand thousand-dollar software—it just requires understanding structure. Learning these basics with open-source tools is a liberating first step for any embroidery artist.
Ready to stitch your own art? Download the free guide linked above and keep experimenting until your next masterpiece loops perfectly through the needle.
