Mastering Color Assignment on Brother PR600/PR620 Embroidery Machines

This in-depth guide summarizes Steve Trammell’s tutorial on assigning embroidery thread colors on Brother PR600/PR620 machines. You’ll learn three efficient methods—Magic Wand, Swap Tool, and Anchoring—so your designs sew continuously without manual color changes.

Educational commentary only. This page is an educational study note and commentary on the original creator’s work. All rights remain with the original creator; no re-upload or redistribution.

Please watch the original video on the creator’s channel and subscribe to support more tutorials—your one click helps fund clearer step-by-step demos, better camera angles, and real-world tests. Tap the Subscribe button below to cheer them on.

If you are the creator and would like us to adjust, add sources, or remove any part of this summary, please reach out via the site’s contact form and we’ll respond promptly.

Table of Contents
  1. Understanding Color Assignment on Your Brother PR600/PR620
  2. Method 1: The Magic Wand for Single-Color Designs
  3. Method 2: Using the Swap Tool for Multi-Color Designs
  4. Method 3: Advanced Color Management with Settings (Page 3)
  5. Choosing the Right Method for Your Project
  6. Troubleshooting Common Color Assignment Issues
  7. From the Comments: Community Tips

Understanding Color Assignment on Your Brother PR600/PR620

Video title screen showing 'How to assign colors to a design on the Brother 6 needle portables'.
The video opens with a title card introducing the tutorial’s focus.

Color assignment is the invisible choreography behind perfect, uninterrupted embroidery. The Brother PR600 series lets you map your design’s digital colors to physical threads, saving time and preserving design accuracy. Whether working with small motifs or large multi-color patterns, dialing in these settings guarantees smoother production.

Speaker Steve Trammell introducing himself and the video's topic.
Steve Trammell greets viewers and outlines the problem this guide solves.

Why is this crucial? Because when colors don’t match, the machine halts between segments to prompt manual changes—a creativity killer for production runs. Using tools like the Magic Wand and Swap Tool ensures your design sews straight through.

A common support question involves how accessory frames interact with color placement. Many users pair color assignment sessions with upgrading accessories like magnetic hoops for brother embroidery machines for better material stability during adjustment.

Method 1: The Magic Wand for Single-Color Designs

Hand pointing to a design selection menu on the embroidery machine's screen.
Selecting the design 'RWB' before reassignment begins.

When dealing with one-color logos or monograms, the Magic Wand is your quickest path. Just select your design—Steve uses “RWB” as an example—and check which needle the system has assigned by default.

Embroidery machine screen displaying the 'RWB' design with default green color on needle 1.
The 'RWB' design initially shows green on Needle 1.

Say it defaults to Needle 1, threaded green, but you’d rather use yellow on Needle 3. Tapping the wand icon and entering “3” reassigns the work instantly.

Side view of the Brother PR620 embroidery machine showing various colored threads on the needles.
Thread arrangement on the six needles, ready for reassignment.
💡 Keep a printed needle/color chart nearby. This helps when you’re reusing thread spools between jobs.
Hand using the touchscreen to change the needle assignment from '1' to '3' with the magic wand tool.
Using the Magic Wand tool to move the color assignment to Needle 3.

From here, your single-color design will run without prompting for a color change. If you often alternate small projects, you might consider compatible upgrades like magnetic embroidery hoops for brother pr680w for faster hooping alignment.

Method 2: Using the Swap Tool for Multi-Color Designs

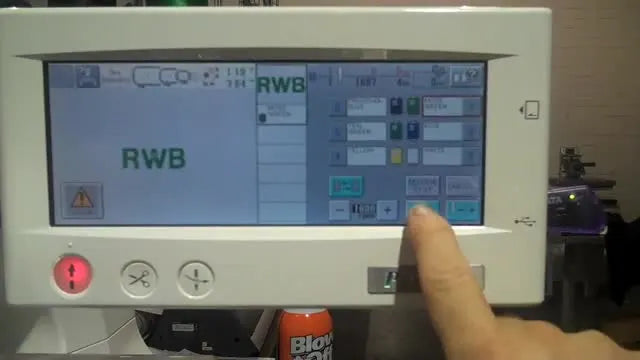

Multi-color 'RWB' design on screen, showing default needle assignments for red, white, and blue.
The 'RWB' design shows three colors before swapping begins.

Multi-color designs create more chances for confusion. In Steve’s demonstration, the “RWB”—Red, White, and Blue—design defaulted to needles 1, 3, and 2. But on his physical setup, red lives on Needle 6, white on 5, and blue on 4.

Close-up of physical threads on machine needles showing color mismatch.
The physical thread colors differ from the design order—time to swap.

That mismatch can ruin an embroidered flag! The fix: go into the sewing screen and launch the Swap Tool.

Hand interacting with the swap tool interface on the machine's screen.
Accessing the swap tool to realign needle colors.

In the swap interface, Steve makes each correction: Needle 6 replaces 1, Needle 5 replaces 3, and Needle 4 replaces 2. The swap arrows confirm every exchange.

Screen showing the swap tool in action, with needle 6 being assigned to position 1.
Swapping red to Needle 6 to match physical thread setup.
✅ Once the mapping matches your real threads, the preview bar should read 6-5-4 for RWB—precisely your physical sequence.

The Swap Tool is available on PR600/620 and, in similar form, on related multi-needle models. If you’re exploring companion machines, magnetic embroidery hoop for brother pr650 can also streamline hoop changes in the same workspace.

Method 3: Advanced Color Management with Settings (Page 3)

Hand navigating to 'Page 3' in the machine settings menu.
Finding 'Page 3' for permanent color anchoring.

Checkpoint for power users: head to your settings menu, Page 3. Here, you define which colors permanently belong to which needles. Steve sets Needle 1 as green, 6 as red, 5 as white, 4 as blue, and 2 as black.

Hand selecting a green color from a palette and anchoring it to Needle 1.
Anchoring Needle 1 to a green thread on 'Page 3'.

When you press “SET,” an anchor icon appears beside that needle—showing its color is locked. These presets persist across sessions.

⚠️ the PR600 limits you to five anchored colors. One needle remains a “floater” for unique colors in different designs.
Machine screen showing 5 needles with anchor icons.
Five anchored needles displayed on-screen—showing the limit.

If your projects include vibrant textile layers or frequent hoop swaps, matching stable hardware like brother pr1055x hoops helps keep color registration accurate across pieces.

Hand assigning specific colors to 'AABC' design.
Coloring 'AABC' letters with anchored threads.

Once anchored, loading a new design (like “AABC”) will automatically align to those needles by color name—black, yellow, leaf green, red—requiring no tedious reentry.

Final screen showing correct mapping between design colors and needles.
Final confirmation: colors map correctly after anchoring.

Result: the design preview instantly shows proper color mapping, and your sew-out begins without interruption.

Anchor wisely, and even production of small runs can feel like working with an industrial powerhouse accompanied by precision accessories such as brother pr magnetic hoop.

Quick Check

If your machine warns about over-anchoring, remember: remove one anchor using the “RESET” function in Settings Page 3. Retest by loading a fresh design from memory.

Choosing the Right Method for Your Project

When should you rely on each tool?

  • Magic Wand – For simple, one-thread tasks. Great when testing a new motif.
  • Swap Tool – Perfect for designs you know well that have multiple colors but predictable sequence.
  • Anchoring – Ideal for consistent production lines or when several designs share the same thread set.
💡 mark needles physically with small color labels to correspond with anchored hues—small workflow tweaks like these can rival the efficiency of advanced gear such as brother hoopnetic magnetic sash frame.

Troubleshooting Common Color Assignment Issues

Sewing result shown on screen.
Seamless color mapping during final stitching.

Some users notice their floating needle color resets or duplicates. The reason: only anchored threads maintain their state. To fix it, un-anchor a rarely used color, reassign, then anchor it again.

If you change project types often, switch 'Name of Color' back to 'Brand' mode; it prompts a clean sync on reload.

Another hiccup: persistent anchors from past designs. You can remove them through the settings’ “RESET” option. It’s safe and doesn’t erase stored patterns.

Need a broader workspace for aligning such fixes? Users upgrading to brother 10x10 magnetic hoop find it easier to visualize alignment during troubleshooting.

From the Comments: Community Tips

Embroidery fans loved Steve’s clarity. Many said this lesson demystified the PR600’s process when manuals hadn’t. One viewer, wrestling with unanchored needles, raised a question on how to fix a color repeat—an issue worth following up directly with dealer support or online guides.

Others highlighted the ease of using applique colors correctly after another commenter explained those icons indicate placement and cut lines—useful knowledge when working with cutters or composite embroidery shapes.

Many new owners thanked Steve for showing real-screen examples. As he demonstrates, once you tame the software side of embroidery, hardware upgrades like brother embroidery machine or magnetic embroidery hoop simply extend your creative reach.

Keep exploring combinations of smart software practice and steady hardware control. Whether you use default hoops or premium attachments like magnetic embroidery hoops for brother for quicker turnaround, mastering color assignment ensures your artistry never hits pause.
