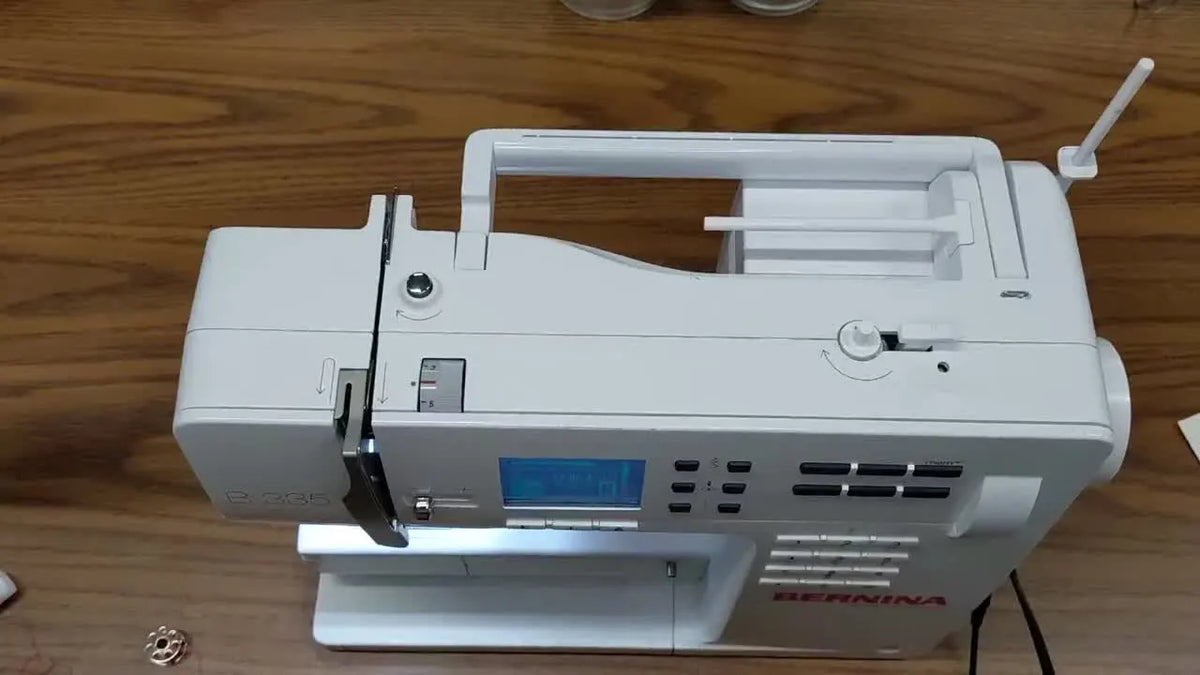

Follow this hands-on guide to threading your Bernina B 335 sewing machine the right way—top to bobbin. Whether you’re a new owner or refreshing your technique, we’ll walk through each motion from placing the spool to pulling up both threads so your stitches start smooth every time.
Table of Contents
Understanding Your Bernina B 335: Top and Bottom Threading
The Bernina B 335 has two vital thread systems—top and bottom. Together they form the lockstitch that keeps your projects secure. Recognizing how these threads travel through the machine makes every troubleshooting step easier. Think of it as the roadmap to your stitches.
A fun parallel: setting up your thread paths feels a lot like inserting accessories for embroidery framing systems such as bernina magnetic hoops. Both demand precision and verify that every guide clicks into place before operation.
Why both threads are crucial
Your upper thread handles the visible line of stitches, while the lower bobbin thread locks it from beneath. Skipping even a single thread guide can throw off tension or cause nests underneath your fabric.
Overview of machine parts involved
Key areas include the spool pin, tension discs, take-up lever, needle guides, and the bobbin case assembly. These parts form a logical sequence; once you visualize their order, threading feels automatic.
Step-by-Step Guide to Top Threading
The video anchors on methodical motions—slow enough for beginners but precise enough to re-train seasoned sewers.
Placing the Spool and Engaging Guides
Start with your spool of thread unspooling from the back. Flip up the spool pin if it’s folded down and seat the spool firmly. This ensures the thread feeds smoothly and tension stays true.
Next, hook the thread over the rear guide. You’ll feel it catch—a simple tactile cue that you’re on the correct path.
Mastering the Thread Take-Up Lever
Follow the printed arrows: down the right groove, then up the left. Turn the handwheel toward you to raise the take-up lever to its highest point. Slip the thread upward and around the lever, making sure it clicks in securely.
Once engaged, run the thread back down along the left channel.
Needle Threading: Tips for Success
Before heading through the needle, guide the thread behind the two small metal guards above it—first right, then left. Trim any frayed ends to make threading smooth.
Slide the trimmed tip through the needle eye from front to back, then slip the thread through the slit at the side of the presser foot, letting it rest between the foot and the stitch plate.
For many sewists accustomed to embroidery units, this precision echoes locking down new attachments like the dime snap hoop monster bernina. It’s the same principle—alignment equals reliability.
Conquering the Bobbin: Preparation and Insertion
Bottom threading determines how consistently the machine forms each stitch underside.
Familiarizing Yourself with the Bobbin and Case
Hold the bobbin case by its lever; note the finger that always points up. The open “donut” shape houses the bobbin.
The “9” Rule: Correct Bobbin Orientation
Hold your bobbin so its thread tail makes it look like the number 9—circle with the tail on the right. Slip it into the case and pinch both pieces to prevent spin.
If your bobbin feels reversed or spins loosely, re-orient it. This simple visual cue saves time compared with trial-and-error adjustments.
To mirror proper pathing, lead the thread through the narrow slit and pull it under the tension plate until it locks into the small popsicle-shaped hole.
For those exploring modular attachments like magnetic hoop for bernina, the concept of alignment and a gentle click to confirm placement should feel familiar here.
Securing the Bobbin Case in the Machine
Keep the finger pointing straight up, then push the entire case into the compartment until it clicks. This audible click signals security.
Bringing It All Together: Drawing Up the Bobbin Thread
You’re almost ready to sew. Hold the top thread firmly while turning the handwheel toward you; the rising needle catches the lower loop. Use a pin to pull that loop through the stitch plate.
Both threads should now sit together between the presser foot and stitch plate. Pull them toward the back.
The Dance of Top and Bottom Threads
This moment when both threads join is your indicator of successful setup—like the final alignment before closing an embroidery frame. The small resistive tug you feel proves tension is balanced, ensuring clean stitches.
If the bottom thread doesn’t appear, examine your threading path again. Nine times out of ten, a missed guide or reversed bobbin orientation causes the issue.
Troubleshooting a Stubborn Loop
Still no loop? Keep the top thread tight and rotate the handwheel a full cycle. Sometimes tugging gently on the top thread while the needle rises helps the hook grab the bobbin line.
For advanced embroidery users, the patience required here mirrors setting magnets on magnetic hoops for bernina embroidery machines. Gentle repetition—not force—achieves the proper hold.
Final Checks and Best Practices
Pull both threads behind the presser foot before sewing; it keeps them from knotting in your fabric’s first stitch. Always test on a scrap fabric piece first to confirm the stitch looks balanced.
Like positioning frames such as bernina snap hoop, successful sewing begins with mindful setup.
The Importance of Practice Swatches
Testing on scraps prevents heartbreak on finished pieces—you’ll hear this repeated often by instructors because it works. Adjust, test, then sew your final fabric with confidence.
Common Threading Problems and Quick Fixes
Skips, loops, or uneven tension usually come back to one thing: threading. If a project acts up, remove both threads, raise the presser foot, and start again. Eliminating guesswork saves frustration.
From the workshop: Experienced sewists compare this methodical process to aligning modular setups such as magnetic embroidery hoops for embroidery. Small steps ensure major reliability.
Once you’ve followed this thread path end to end, your Bernina B 335 is certified ready for stitching bliss.
