Understanding Your Redline Hoops
Redline embroidery machines rely on precise measurements to achieve uniform stitching. Each hoop—from the large A Oval to the 9cm frame—corresponds to a specific area on-screen. The video emphasizes using millimeters for accurate calibration, transforming lengths like 30cm into 300mm for entry consistency.
Centimeters vs. Millimeters
Many machines display hoop size in centimeters. However, Embrilliance software requires millimeters. Converting these values ensures you match the machine’s actual frame area with on-screen design boundaries. Such conversion consistency helps prevent costly misplacement errors seen in large designs.
(Example: 15cm becomes 150mm.)
For enthusiasts working with other machine brands, this principle remains universal—even when configuring magnetic embroidery hoops for brother.
The Importance of Press Foot Clearance
Ignoring the press foot can lead to broken needles or uneven tension. The tutorial suggests reducing each hoop’s overall dimension by 15mm—creating a safe buffer zone. For instance, the 150mm hoop becomes 135mm in setup; thus, your needle won’t collide with the foot’s metal frame.
This step acts as insurance for projects stitched on multi-needle systems such as those that would use magnetic embroidery hoops for brother pr1055x.
Initial Setup: Embrilliance Preferences

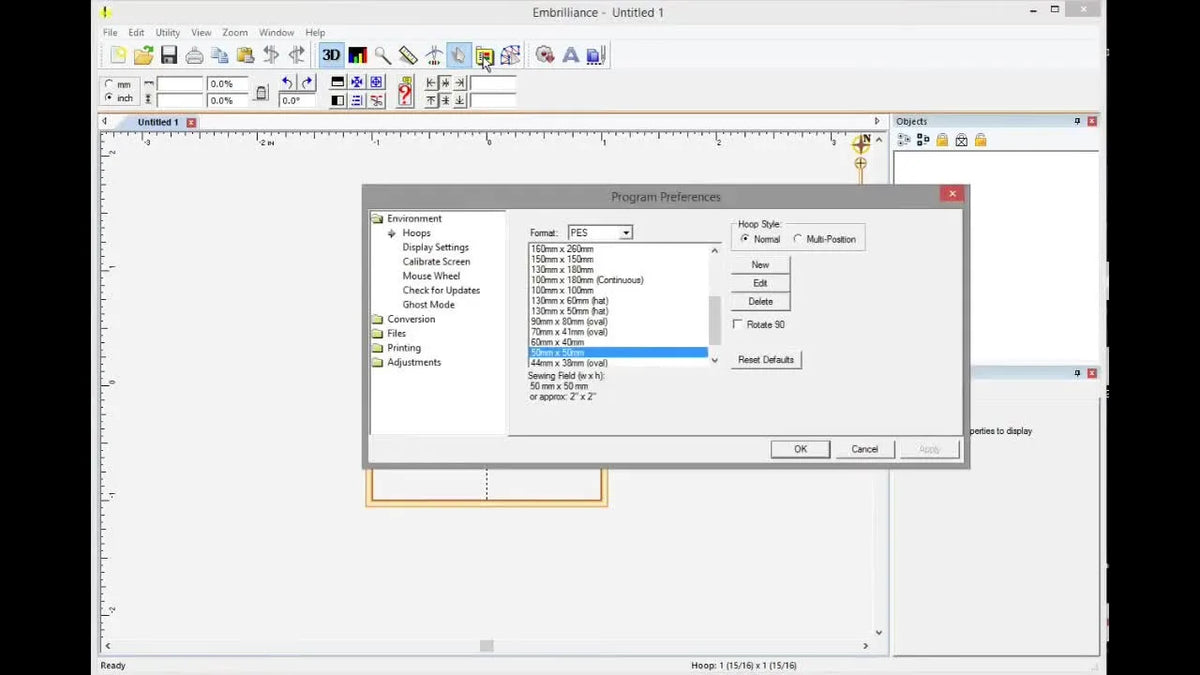

The process begins in the Program Preferences section. Once opened, users scroll to find the Hoops tab and locate the Format option. Selecting DST aligns the workspace to communicate effectively with the Redline hardware.
Accessing Program Preferences
Click the gear-shaped Preferences icon. Once open, explore tabs related to Hoops. Small adjustments here dictate how the software behaves across all projects.
Selecting the DST Format
The DST file type serves as the universal embroidery standard compatible with Redline. Choose DST within preferences before creating any new hoop. Doing so ensures your designs transfer cleanly to the machine later.
If you’ve previously utilized accessories like magnetic hoop for bernina, think of this DST setting as a similar compatibility assurance—but tailored for Redline hardware.
Adding Specific Redline Hoops
Each hoop must be manually added once the format is set. Start by pressing New, then enter the name and dimensions carefully. The video illustrates this clearly: “A Oval,” 535mm by 335mm, followed by a confirmation click.
Hoop A (Oval): Large Format
Begin with the largest—Hoop A. Enter values exactly as shown: Width 535mm, Height 335mm. Upon completion, confirm that the outline appears on the software’s preview grid.
Consistency here mirrors professional workshop standards familiar to users of magnetic embroidery hoop 10 x 10 for brother pr series designs.
Hoop B (30x30): Square Standard
For B 30x30, halve original centimeters into millimeters, then subtract 15mm margin per side. Thus, you’ll type 285 for both width and height. This simple change drastically improves long-term safety by avoiding press foot overlap.
Configuring Smaller Round & Oval Hoops
Smaller formats repeat similar logic. Hoops C through F all require naming and reduction.” C 19 Oval” becomes 175mm x 175mm; “F 9 Oval” translates to 75mm x 75mm.
Hoop C (19 Oval) to F (9 Oval)
Systematically adjusting these hoops ensures Embrilliance reflects true sewing space. Label them carefully to match your physical hoop letters.
Remember: even compact frames like 9cm styles benefit from the 15mm rule. This principle helps you achieve error-free results on everything from towels to caps.
As hobbyists migrate between hardware ecosystems—say from Redline to magnetic hoops for tajima embroidery machines—this sizing discipline continues to apply.
The Essential Cap Hoop
Finally, add the Cap hoop: 150mm wide and 50mm high. Because cap frames are more rigid than ovals, precision here impacts crown alignment directly.
Cap embroidery often involves tight curves; thus compensating for foot clearance here ensures the thread path remains smooth.
Testing Your New Hoop Configurations
Once saved, it’s time to verify. In the Preferences list, select one completed hoop—D 15 Oval, for example. Hit OK, and the hoop boundary will now appear around your design field on-screen.
Visualizing Designs within Hoops
Digitize a simple shape such as a filled circle and test boundaries. If the design fits without warnings, the press foot space has been correctly reserved.
This confirmation mimics what you’d observe using modern magnetic embroidery hoops for janome. Regardless of device, ensuring the layout remains inside valid limits avoids rehooping mid-project.
Ensuring Perfect Fit for Stitching
Click the “Expand to Limits of Hoop” button included in Embrilliance. Your design stretches safely to maximum boundaries, occupying all visible space yet staying clear of risk zones.
If you see no truncation or red boundary alerts, your setup is correct—and ready for advanced designs or multi-color runs.
Tips for Optimal Embroidery with Redline Hoops
Handy reminders from the tutorial and community feedback:
- Convert units carefully: Always work in millimeters for internal consistency.
- Apply the 15mm reduction: Maintain mechanical safety.
- Label logically: Match software hoop names exactly to your machine’s display letters.
- Test before production: Use small designs for calibration runs.
Pro Tip
Save your hoop profiles in a dedicated “Redline” folder, so switching machines or software re-installs won’t require re-entry. This digital backup mirrors best practice used by professionals customizing hoop sets like barudan embroidery machine hoops.
Watch Out
If you accidentally input centimeter values instead of millimeters, hoops will display at one-tenth intended size. Correcting units early saves hours of troubleshooting.
From the Comments
A viewer praised the clarity of this setup and particularly valued the reminder to shrink dimensions for the press foot. That single adjustment keeps projects in the safe stitch zone—proof that minor math pays major dividends.
Following these structured steps within Embrilliance makes hoop setup a one-time operation that streamlines every later project. Whether you digitize intricate appliqué or simple logos, having frames properly calibrated lets your creativity run free.
