Understanding Your Embroidery Machine's Catcher
Every embroidery technician knows that the catcher is a workhorse component. It ensures that jump stitches are cut cleanly and each needle change happens in perfect rhythm. When it's broken, the entire head grinds to a halt.
A well-maintained catcher prevents missed trims and thread nests. Regular inspection—ideally during scheduled servicing—keeps this precision assembly in peak condition. For home users upgrading their workflow, integrating a dependable setup with magnetic hoops for embroidery machines will help provide stability during intensive runs.
What is the catcher and why is it important?
In short, it’s the small but mighty mechanism that grabs thread tails for cutting. Inside an industrial embroidery head, the catcher interacts with several moving shafts, rods, and magnets. Its movement must be timed precisely with the main shaft position. Even a slight misalignment causes skipped trims and tangled threads.
Common signs of a broken catcher

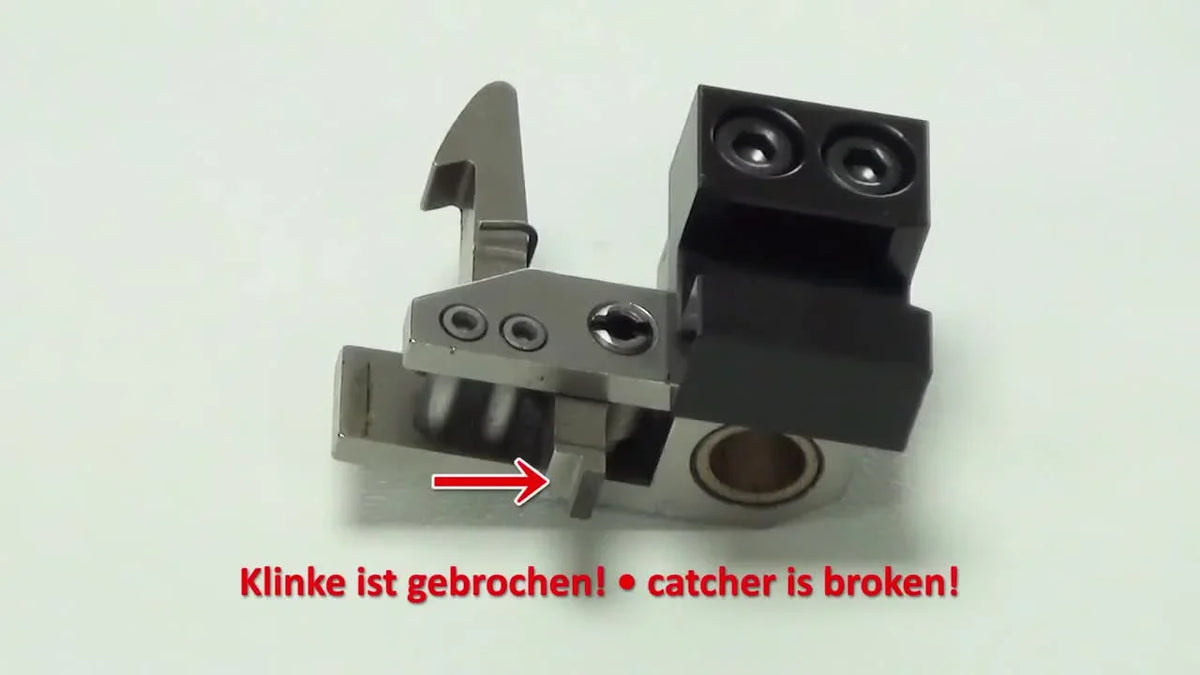

Look out for uneven cuts, dangling thread tails after trimming, or a faint grinding sound from the head. Once metal parts fatigue or small rings warp, it’s time for replacement.
Essential Tools and Safety First
Before reaching for the screwdriver, confirm that the machine is completely powered off. The tutorial reinforces this with the bright overlay “SWITCH OFF THE MACHINE!”. Never skip this precaution.
Gathering your toolkit
You’ll need a 4 mm T-head Allen key, a 3 mm butterfly Allen, 2.5 mm and 2 mm keys, a 3 mm L-type, and a Phillips screwdriver. Organize them neatly on a flat surface for efficiency.
Professional setups sometimes combine this workflow with machines like a bai embroidery machine or other multi-needle systems for high throughput, but the principles of careful preparation remain unchanged.
Machine shutdown procedures
Confirm all LEDs are off and that the power switch is flipped down. Use relief time to review the next steps—cover removal, thread tension unit handling, and cable management.
Step-by-Step Disassembly: Accessing the Catcher
Here the video shifts to the hands-on moment: removing exterior panels and the thread tension unit to expose the internal head components.
Start from the sides, then the back. The thread tension cover flips backward to reveal a tangle of plugs connected to the KSP board. Remember each cable’s route—take a phone photo for easy reassembly.
When all plugs are disconnected, the head’s front cover comes off with six screws.
You can now see the needle block and the top of the catcher assembly.
From here, remove the needle block itself by loosening its screws.
Aligning while removing prevents accidental bending of the guide shafts.
Some technicians enhance workspace stability with barudan embroidery machine hoops or fixture stands, which keep fabrics clear during machine maintenance sessions.
Catcher Removal and New Part Preparation
Navigating machine service modes for precise positioning
To remove mechanical assemblies safely, the shaft must be parked at its lowest position. That involves turning the power back on and entering the service program. The brief ‘Head PCB incompatible with machine type’ message may appear—per the video, it's acknowledged and ignored to continue toward Main shaft position.
Then, by rotating the hand bar manually, the technician lowers the needle to the bottom dead center before engaging the brake. Exact positioning avoids surprises when components drop free.
Extracting the old catcher and lubricating new components
Once positioned, loosen the shaft screw, press downward, and pull the catcher backward to release it. Disassemble the ring, holder, nylon washers, and rods carefully—everything gets a clean inspection.
Laid out flat, these parts show a mechanical story of wear.
Even a thin dent on the holder or stretched rubber can cause mis-timing.
When preparing new components, oil—or suitable industrial lubricant—is applied to moving surfaces before assembly.
This ensures a silent operation and reduces friction heat.
Many service pros at this stage upgrade their test rigs using magnetic embroidery hoops for brother pr1055x or similar strong holding frames to check needle path clearance while manually rotating the shaft.
Lubrication is revisited during installation.
It’s essential that every washer and VOLKOLAN® ring seats flush—no wobble, no drag.
Reassembly and Alignment: Bringing Your Machine Back to Life
Reverse the disassembly sequence with patience. Begin by reinstalling the catcher’s components: place the needle drive and con rod into position, followed by nylon and steel washers, and finish with the holder and rubber ring. Gently move the shaft to ensure smooth travel.
Next, secure the two front covers of the head. This step protects inner components and starts restoring the familiar machine silhouette.
Reinstalling the needle block is the highlight of the tutorial. Insert the block, press it downward and to the right, then tighten under steady pressure.
The alignment is tested by gentle manual movement of the needles before fastening completely.
For those maintaining multiple production machines, pairing consistent repairs with precision-built fixtures like snap hoop monster for babylock can elevate fabric stability tests, even if these hoops serve primarily for embroidery rather than repair.
After mechanical reassembly, the video details reconnecting all electrical plugs to the KSP board: data bus, power, and magnet connectors. The technician screws back each external cover until the head resumes its original profile.
Home users or small shops experimenting with upgrades can apply similar diligence when setting up accessories like baby lock magnetic hoops. The core value—precision and care—remains universal.
Final Checks and Troubleshooting
After the final cover screw tightens, the machine looks factory-fresh.
But professionals know the repair isn’t complete without movement verification. Rotate the hand wheel gently—listen for clean mechanical harmony.
Small resistance may signal misalignment, while silent rotation confirms success. When powered, the head should no longer report errors. If “Head PCB incompatible” reappears, double-check plug orientation on the KSP board.
Some technicians note improved stitch quality post-repair thanks to precise seating of members. Consider running a sample pattern—one color, low speed—to reassure timing accuracy.
For future maintenance, track working hours and lubrication intervals. Seasoned operators often pair such overhauls with accessory audits. If your workflow involves multiple brands, stable hooping accessories like magnetic hoop for bernina or magnetic embroidery hoop bai provide comparable grip control across models.
From the comments
While the reference video didn’t include viewer discussions, frequent inquiries in the community revolve around alignment tricks and safe handling of power circuits. The universal answer: patience and documentation. Photographs and labeled containers can transform an hour-long repair into a streamlined routine.
Final thought: The catcher might be small, but its precision defines your embroidery output. Treat each repair like fine calibration—the smoother your catcher rides, the crisper every cut thread will be.
