Discover how the Brother PE-DESIGN NEXT Design Database simplifies the process of organizing, converting, and transferring embroidery designs. This tutorial-based guide summarizes the official Brother video, detailing each step with visuals and pro tips for smooth workflows.
Table of Contents
Introduction to PE-DESIGN NEXT Design Database
Brother’s PE-DESIGN NEXT Design Database is a powerful built-in tool for viewing, organizing, and sending designs to your embroidery machine. It acts as a bridge between creative design and execution — essential for fast turnaround.
In essence, the Design Database works as your embroidery file manager. It lets you open libraries, examine stitch counts, and print design catalogs. Enthusiasts who pair it with brother embroidery machine setups often find it central to their digital workflow.
What is the Design Database?
Think of it as the heart of PE-DESIGN NEXT — where all your motifs live. You can access them, preview variations, and prepare conversions seamlessly.
Key Features Overview
From large thumbnails to detailed lists, every view mode caters to different work styles. Each file shows name, size, stitch count, and modification date.
Navigating and Viewing Embroidery Designs
Getting comfortable with navigation ensures efficiency. Start at the Windows Start menu, then locate “PE-DESIGN NEXT > Tools > Design Database”. The window opens, displaying directory trees.

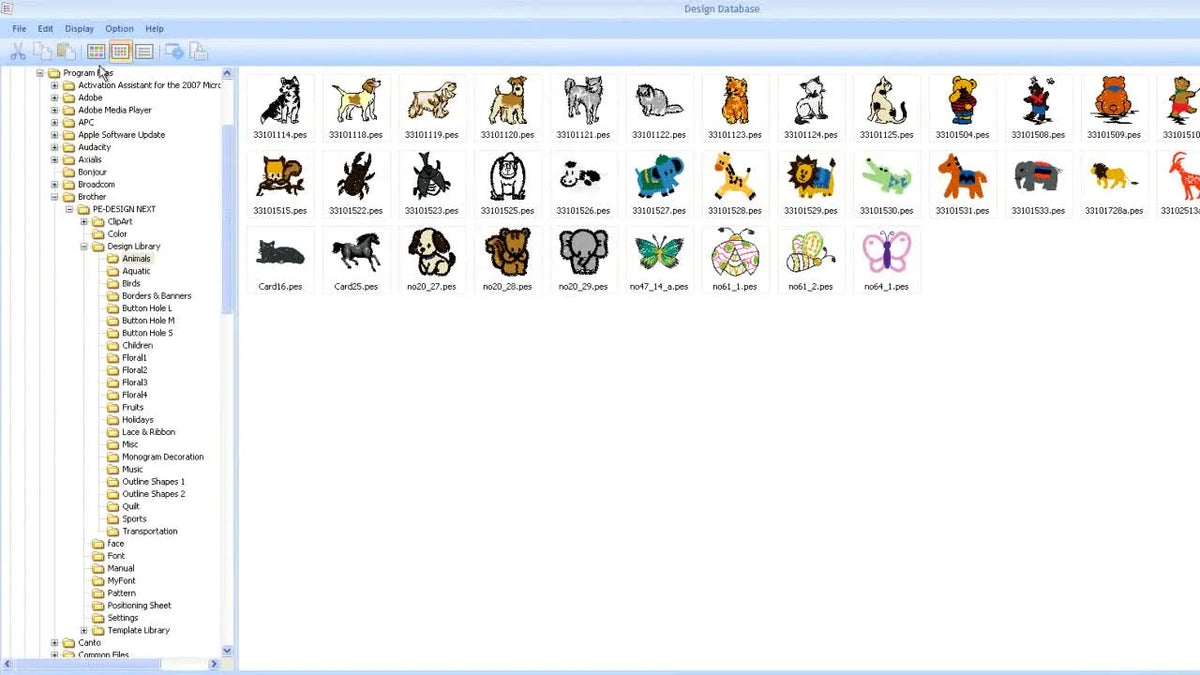

Once open, you’ll find most sample designs under the Program Files directory: Brother → PE-DESIGN NEXT → Design Library. Selecting a theme folder (like Animal) populates the main display with thumbnails.
You can toggle between small or large thumbnails and detailed metadata view. Designers upgrading from older interfaces, such as magnetic hoops for brother embroidery machines users, appreciate this flexibility.
In large-thumbnail view, you get a preview grid that lets you scan for motifs visually — perfect for matching aesthetics across projects.
For a technical peek, switch to Details view to inspect stitch counts and design dimensions.
Converting Embroidery Design Formats
One standout capability is converting designs for different machine formats. Start by selecting a design, click File → Convert Format, then pick your preferred output type. This is invaluable if you need to stitch on varying machines beyond Brother’s range.
When converting, possible outputs include DST, PES, EXP, JEF, HUS, and others. Conversion saves in the same folder, making file management intuitive.
With versatile tools like PE-DESIGN NEXT, you can prepare files for external equipment — from boutique setups to industrial-grade models like a tajima embroidery machine hoops compatible system.
Step-by-Step Conversion Process
- Choose the design.
- Select 'Convert Format'.
- Pick your output format.
- Confirm conversion; the new file appears alongside the original.
Supported Output Formats
The list includes DST, PES, EXP, JEF, HUS, VP3, SEW, and more — covering most home and commercial embroidery standards.
Transferring Designs to Your Embroidery Machine
Moving designs from your computer to a machine can be done in two ways: via rewritable card or USB disk.
Using a Rewritable Card
Insert a blank card into the reader-writer box, then choose Card/Writer in the Send-To section. Pick your machine type and hoop size.
Double-check hoop selections; selecting an oversize hoop may trigger errors when loading. The dropdown offers common sizes (e.g., 180 x 300 mm).
Add designs with the blue arrow, confirm the writing list, and start transfer.
A warning will remind you that all data on the card will be deleted. Confirm when ready.
To make your setup smoother, pairing compatible hoops such as magnetic embroidery hoops for brother ensures precise design alignment during testing.
Transferring via USB Disk
If your machine accepts USB, switch the Send-To option to USB Disk. Insert your drive, pick designs, and click the blue arrow to queue them. Once writing is complete, the message “Finished outputting data” confirms success.
Many creators leveraging USB workflows also match their machine with brother magnetic embroidery hoops to streamline frame setup and minimize re-hooping.
Tips for Efficient Design Management
Understanding Card Capacity and Overwriting
Whenever you transfer to a rewritable card, note the blue capacity bar. If it exceeds limits, remove some designs. Seasoned stitchers using brother magnetic hoop systems find this awareness critical when dealing with multiple motifs.
Safely Ejecting Media
Just like a memory card in a camera, proper ejection preserves data integrity. Avoid removing media before confirmation prompts appear.
Troubleshooting Common Transfer Issues
Design Not Appearing on Machine
If a design doesn’t appear post-transfer, check that it fits within the largest hoop size accepted by your embroidery machine. Oversized designs won’t display even though data is transferred.
For example, users of brother pe800 magnetic hoop systems should ensure the design dimensions respect the 5x7-inch area.
From the comments
Some embroiderers mentioned usability concerns, saying the interface feels dated. The video hints that persistence is key — once you know where your design library resides, everything else flows naturally. Beginners transitioning from simpler apps or from magnetic hoops for embroidery machines accessories should take their time exploring one feature set at a time.
Wrapping Up
PE-DESIGN NEXT’s Design Database is more than a storage browser — it’s an adaptable command hub for embroidery design conversion and transfer. Whether you rely on advanced capabilities or just need to move a few motifs, integrating it into your creative pipeline makes your workflow faster and neater.
With precise tools and compatible hooping accessories like brother embroidery hoops or premium magnetic options, your embroidery process stays organized and efficient.
