This detailed visual walkthrough simplifies threading and winding a bobbin on the Juki DDL-8700 industrial sewing machine. Based on expert instructions from Juki Junkies, it breaks down each motion and adjustment so you can achieve smooth stitches and consistent tension. Whether you're new to industrial machines or refreshing your technique, this friendly guide covers every detail — from preparing your thread to performing your first test stitch.
Table of Contents

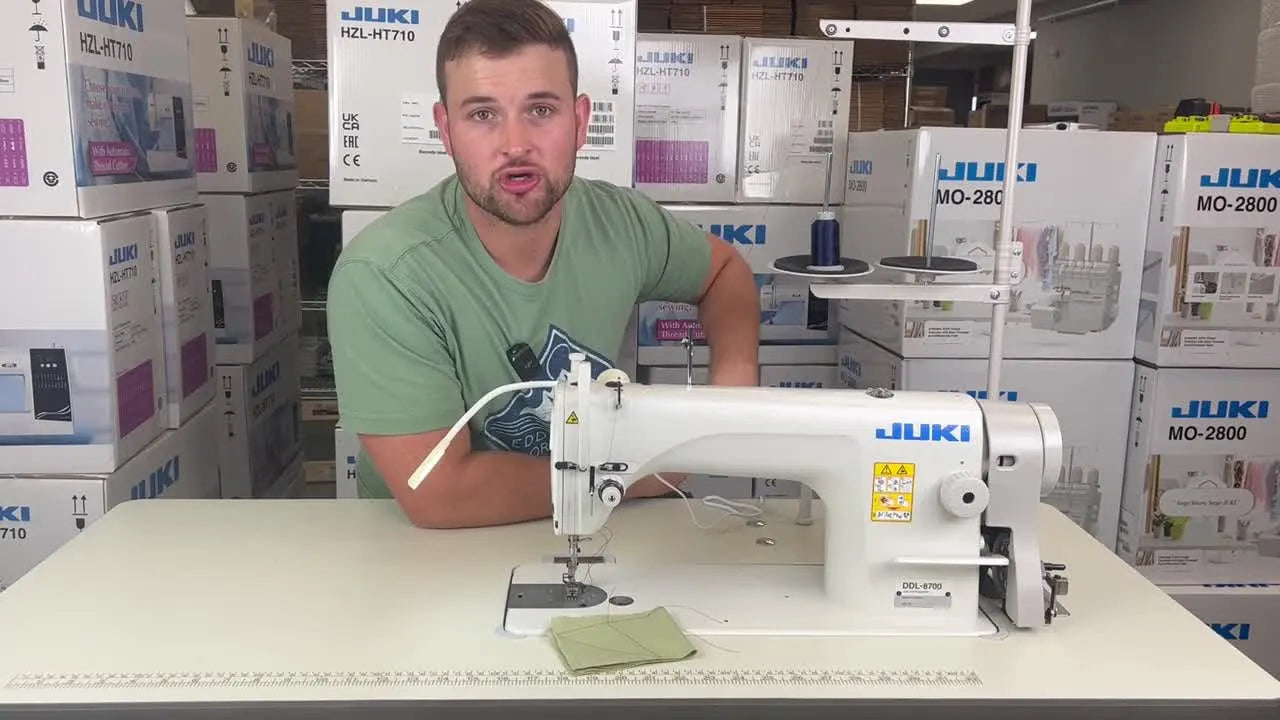

Introduction to the Juki DDL‑8700
Understanding your machine’s threading path makes all the difference. The 8700 is an industrial‑grade straight‑stitch workhorse trusted for apparel, upholstery, and craft sewing. It rewards precision — each guide, disk, and lever has a job.
Proper threading ensures even tension and prevents bird‑nesting underneath. As you follow along, notice how each path loops elegantly, mirroring the logic of professional machines like magnetic embroidery hoops that rely on alignment for perfect results.
Understanding Your Industrial Sewing Machine
The Juki 8700’s mechanical hum may sound intimidating, but threading it properly turns that tension into power.
Why Proper Threading Matters
Incorrect bobbin loading or missed thread guides are the main culprits of breakage. Investing a minute to double‑check your path saves hours later.
Preparing Your Thread and Winding the Bobbin
Start with a clean workspace and a steady touch. Glide 40 weight thread works beautifully — cut its end neatly with scissors so it glides through every guide.
Clean Cut for Smooth Threading
Cutting cleanly reduces snags. Uneven ends resist guides, much like how a loose hoop edge affects embroidery tension on systems such as mighty hoop starter kit.
Guiding Thread Through Tension Disks
Follow the exact path around the winder disk: under, then over, then back through the same guide. The even distribution here sets the tone for balanced bobbin tension.
Step‑by‑Step Bobbin Winding
Insert the thread tail through the bobbin’s hole, facing outward, push it snug on the spindle, and engage the winder. Hold that loose end until it breaks or trim it.
From the comments: Several viewers noted that uneven winding often traced back to skipping the re‑entry through the tension guide after wrapping it — the simple tweak that fixed their problem instantly.
Mastering Bobbin Insertion and Tension
When you drop the bobbin into its case, remember: thread on the right forming a “9.” Slide it through the side guide for a seamless flow.
Correct Bobbin Orientation in the Case
If loading feels awkward, pause and verify direction. Misplacement here mimics top tension errors later, similar to mis‑hooping an embroidery frame like a hoopmaster hooping station.
The Bobbin Drop Test for Perfect Tension
Hold the bobbin case by its thread. A gentle shake should let it drop a little — the golden equilibrium between loose and tight.
Adjusting Your Bobbin Case Tension
Micro‑adjust with the small recessed screw — clockwise for tighter, counter‑clockwise for looser. Slow, deliberate tweaks make the difference that veteran stitchers swear by.
Threading the Top of Your Juki DDL‑8700
Mount your thread on the left stand. Front‑to‑back through the top guide, under the next, around the tension disk, catching the spring, underneath the bar, up into the take‑up lever, and through the needle bar guide. Finally, thread the needle left‑to‑right.
Navigating Thread Guides and Take‑Up Lever
These guides maintain an even draw, preventing tension burrs. Think of them as balancing magnets inside the machine, aligning thread energy the way magnetic embroidery hoops for brother align fabric layers precisely.
The Final Step: Needle Threading
A good habit: once you’ve threaded, lift the presser foot to let the thread settle fully into tension disks — tiny but essential.
Bringing Up the Bobbin Thread
Hold the top thread and rotate the handwheel toward you — the needle dips and pulls up the bobbin loop. Draw both threads under the foot.
From the comments: Confusion around the guide location above the tension discs is common. The Juki Junkies instructor clarified that the routing demonstrated in the video is the correct and effective method.
Testing Your Stitch and Machine Settings
Slide fabric under the presser foot, lower, and sew slowly. The hum you hear is even feed and accurate tension.
Performing Your First Test Stitch
The fabric should reveal balanced top and bottom threads. If not, re‑check both your top thread path and bobbin seating.
Adjusting Stitch Length for Your Project
Use the side dial: turning right lengthens stitches, left shortens. Range from zero to five — perfect for tailoring hems or piecing quilts.
Utilizing the Reverse Stitch Function
While sewing forward, hold down the reverse lever for backstitching. It instantly secures seams at the start and finish — simple yet professional.
Conclusion: Ready to Sew!
You’ve successfully threaded and calibrated your Juki DDL‑8700. Every guide you passed, every tension you adjusted, brings commercial‑grade precision to your fingertips. Maintain this rhythm and you’ll enjoy years of reliable performance.
Troubleshooting Common Threading Issues:
- Uneven winding? Confirm the thread’s second pass through the winder guide.
- Skipping stitches? Re‑thread top and verify needle direction.
- Take‑up lever stuck? Stop sewing and check for jammed threads before moving the handwheel.
Maintaining Your Juki Industrial Machine: Keep dust away, oil periodically, and store in a dry area. For those expanding into embroidery, exploring alignment systems such as dime magnetic hoop or adaptable fixtures like mighty hoop for brother pr1055x can inspire cross‑skill confidence between sewing and embroidery platforms.
Happy stitching — your newly threaded 8700 is ready to perform flawlessly!
