How to Thread a Serger: A Step-by-Step Visual Guide

Getting Started: Preparing Your Serger for Threading

Begin by opening up your machine and meeting the parts that make up its inner landscape. The Janome 1110DX and Pro 4DX share a near-identical threading system—great news for anyone using similar domestic models.

To start, remove the thread compartment and drop open the lower looper door. Inside you’ll find a color-coded threading diagram. If this is your first time, adding four differently colored thread cones helps you visualize how each interacts.

(Skilled embroiderers may compare the satisfaction of a well-threaded serger with setting up a precise frame like those used with magnetic embroidery hoops for janome 500e—alignment is everything.)

Understanding the Serger Models: Janome 1110DX & Pro 4DX

Both machines feature four-thread capability, supporting differential feed and standard tension control dials. The tutorial demonstrates that the thread order is always right-to-left: lower looper, upper looper, right needle, then left needle.

Opening the Looper Covers to Access the Threading Paths

You’ll expose the threading chart printed inside the front panel.

These guides are color-coded—green for the lower looper, red (or pink) for the upper looper, blue for the right needle, and yellow for the left.

Why Four Different Thread Colors Are Your Best Friend

By assigning a distinct color to each path, you can instantly visualize tension balance later. It’s like marking off individual layers before hooping a multi-colored design on an embroidery frame.

The Foundation: Threading the Lower Looper (Green Thread)

This section covers the most intricate step—the lower looper threading.

Start with the far-right spool pin for your green cone. Feed it through the upper guide and then into the tension disc while the presser foot is down. Lifting the foot opens the tension discs; lowering it closes them, ensuring the thread slips between properly.

If the discs stay open, tension won’t be properly applied during sewing. Lower your presser foot and floss the thread gently until it seats with a reassuring click.

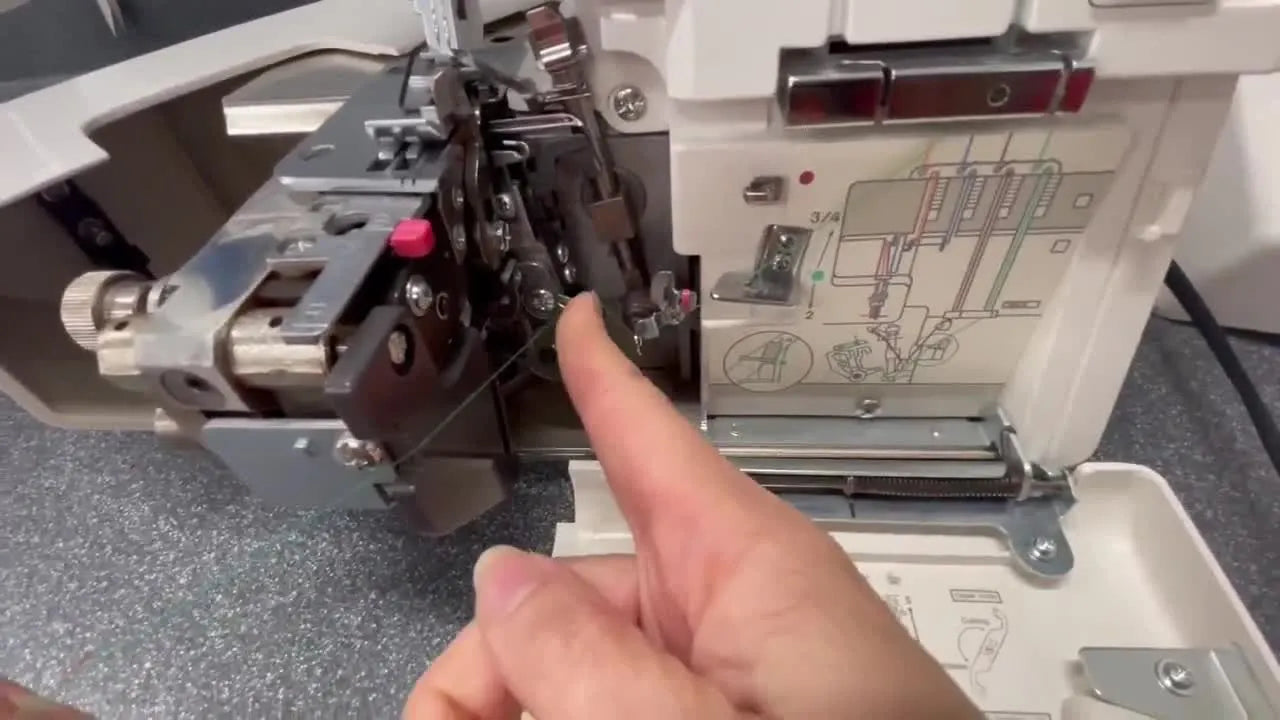

Once past the tension stage, trace every green dot inside the looper area. The pivotal step is raising the lower-looper threading lever, which swings a hook into view. This hook can’t be accessed otherwise, so don’t skip this move.

Use tweezers to guide the thread through the tiny eye.

When done correctly, the lower looper should move freely without pulling or resistance.

(Precision here compares to snapping fabric perfectly into place on a snap hoop monster for janome: a single missed alignment throws everything off.)

Next Up: Threading the Upper Looper (Red Thread)

With the lower looper set, the upper looper feels almost relaxing.

Mount the red cone on the third spool pin, route through top guides, and into its tension disc. Follow the pink-coded dots until you reach the upper looper’s eye, using tweezers to pull the tail through.

(These graceful thread paths mirror the mindful setup many creators feel using janome embroidery machine accessories—both reward easy precision.)

Almost There: Threading the Right and Left Needles

Reattach the lower cover. The right needle uses a blue thread; the left needle, yellow.

For the right needle, run the thread through the upper guides and blue tension disc. Loop around the take-up lever and pass through the guide bar before threading the needle front to back.

Repeat the same with your yellow thread for the left needle. Follow the mirrored path in yellow-coded guides.

Always double-check that each thread occupies separate guides—crossed paths disrupt tension later.

(If you’ve ever balanced multiple layers on an embroidery machine using magnetic hoops for embroidery machines, you already know the reward of even tension throughout.)

The Final Check: Testing Your Stitch for Balanced Tension

With all threads neatly tucked behind the presser foot, you’re ready to test.

Set all tension dials to “4,” stitch length to “3,” and differential feed to “1.” Place your fabric swatch under the foot, align the edge, and start sewing.

The serger trims the edge while stitching—avoid pushing too far left to prevent cutting into your seam allowance. Chain off at the end to secure your threads.

Inspect your swatch: the red and green threads should meet cleanly at the edge, while blue and yellow needle threads form straight parallel lines.

(Testing tension is as essential as confirming hoop stability in tools like mighty hoops for janome mb7—the foundation of consistent results.)

Quick Check

If one looper color pulls to the other side, its tension dial likely needs minor adjustment. Make small, symmetrical changes and re-test.

Pro Tip: The Quick Threading Method

At the end of the tutorial, Stefanie recommends watching her separate video on the “quick threading method.” It’s ideal once your machine is already correctly threaded and you simply want to change colors.

Using the tie-on technique—knotting new thread colors to the existing ones—means you only pull the thread through rather than rethread all loopers. Gently feed the knots through the guides until the new shades reach the needles.

(This time-saving approach echoes switching between hoop setups like baby lock magnetic hoops or barudan magnetic hoops—designed for seamless workflow.)

Watch Out

Remember the concealed cutting blade beneath the foot—it trims extra fabric as you serge. It’s covered for safety, but staying aware of its position prevents accidental over-trimmed seams.

Final Thoughts

Threading a serger is all about rhythm and repetition. Each pass builds confidence, and soon the process feels as automatic as changing needles. Now that you’ve conquered the threading maze, your projects can move from frayed edges to professional finishes—with smooth seams that rival factory stitching.

(Efficiency and precision—whether adjusting a serger or setting up magnetic embroidery hoops—transform crafting from chore to creative flow.)
