Introduction to Embroidery Machine Maintenance
Having a computer embroidery machine isn’t just about artistry—it’s also about upkeep. Dust collects invisibly in thread paths, oils evaporate, and vibration loosens screws. Regular maintenance ensures precision, speed, and longevity.
Why Regular Maintenance is Crucial
Skipping cleaning once may seem harmless, but a week of lint can gum sensors and bind the moving head. Consistency counts more than duration; two minutes daily can outperform an occasional overhaul.
Overview of Daily, Weekly, and Monthly Routines
The method is divided into three rhythms: daily surface care, weekly deep cleaning of the bobbin area, and monthly oiling of key motion paths. Many readers pair these with modern accessories like magnetic hoops for embroidery to make hoop-off cleaning even easier.
Daily Rituals for a Smooth Running Machine
Surface Cleaning and Dust Removal

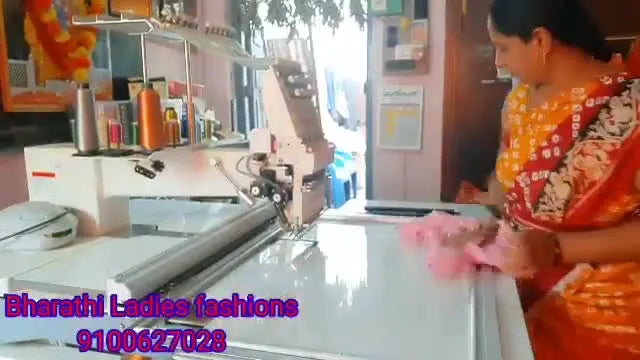

Bharathi’s ritual starts each morning before stitching begins: power off, clear the table, and give the entire surface a quick brush and wipe. A soft cloth removes thread fluff while a makeup brush teases lint from corners.
Key Daily Oiling Points
Once the surface is spotless, apply a single drop of machine oil into the side opening marked for lubrication, and another drop into each of the two small holes on the moving head mechanism. Never flood these points; one drop is sufficient.
By maintaining this brief routine, you secure smooth movement and minimize motor strain. Makers using machines with different frames—such as a baby lock magnetic hoops setup—can adapt the same approach.
Weekly Deep Dive: The Bobbin Area and Needle Plate
Weekly care is about going under the hood. Power off and prepare a screwdriver, small brush, and cloth.
Safe Removal of Machine Parts
Gently loosen all three needle plate screws before removing any one completely. This avoids the imbalance that can tighten the last screw too firmly.
Tackling Dust and Lint Accumulation
Once the plate lifts, the inside often reveals astonishing lint—tiny threads, fusing paper, zari fibers. Gather these with a small brush until sparkling clean.
Preventing Thread Breakage and Trimmer Issues
Finish by cleaning the backside of the removed plate with a cloth.
This spot often gathers fine burrs of dust that reduce thread precision. Clean weekly, and your trims will thank you. Stitchers using compact industrial models like bai embroidery machine units follow the same principle: clear the bobbin chamber, prevent downtime.
Monthly Overhaul: Needles, Tension, and Movement
The monthly session is your machine’s spa day—a chance to deep clean and oil every key joint.
Cleaning Needle Bars and Thread Guides
Swap the makeup brush for a bigger one. Brush along the vertical needle bars, sweeping behind and between them. Maintenance here avoids friction that can fray delicate threads.
For the thread-path discs, use a smaller brush and, if available, a hair dryer on cool mode to blow hidden dust outward.
Maintaining the Moving Head Mechanism and Sensors
Move to the side of the head and use a cloth to clear old oil film and stray lint. Be gentle—too much pressure could disturb wire connections.
A clean sensor keeps needles responding correctly, avoiding false thread-break warnings. Many industrial embroidery pros with barudan embroidery machine hoops report fewer sensor misreads after adopting this routine.
Strategic Oiling for Longevity
After the dust is banished, lightly oil the bobbin area and let it rest for two minutes before wiping excess. This oil-lift technique floats remaining debris away.
If you work in a high-humidity space, schedule mid-month spot oiling too.
Owners of wider-bed models—like those fitted with magnetic embroidery hoops for brother pr1055x—can follow the same timing but focus on accessible motion tracks below the frame.
Reassembly and Final Checks
Tips for Easy Needle Plate Reinstallation
Once monthly cleaning is complete, reassemble by pressing the plate slightly leftward as you seat it back—an easy trick Bharathi shares to align the screw holes perfectly.
Tighten screws evenly, wipe one last time, and ensure no oil sheen remains where fabric might pass. For fine work or compact hoops such as bernina magnetic hoops, even a trace of oil can mark textiles, so always double‑check.
Ensuring a Clean and Oiled Machine
Apply two drops of oil to each needle bar and manually rotate the side wheel to verify smooth movement.
Expert Advice for Independent Maintenance
Reducing Reliance on Technicians
Bharathi’s philosophy is self‑reliance. Routine cleaning cuts emergencies—less waiting for service calls, less expense. The same ethos applies whether you run a boutique or manage multi‑head setups using ricoma embroidery hoops.
> From the comments: While no public comments were recorded on the original post, the style of tutorial invites open discussion. Operators often appreciate seeing detailed brush‑and‑oil shots rather than only product pitches.
Extending Your Machine's Lifespan
To summarize: wipe daily, deep clean weekly, oil monthly, and note any unusual noise immediately. Conclude by covering the machine to block airborne dust. Embroiderers who maintain diligently—even across varied hoop types like tajima magnetic hoops—consistently report quieter operation and smoother stitches year after year.
Follow this balanced routine to transform maintenance from a chore into a mindful craft ritual. Clean machine, calm mind, flawless stitches.
