Understanding Your Sewing Machine's Bobbin Mechanism

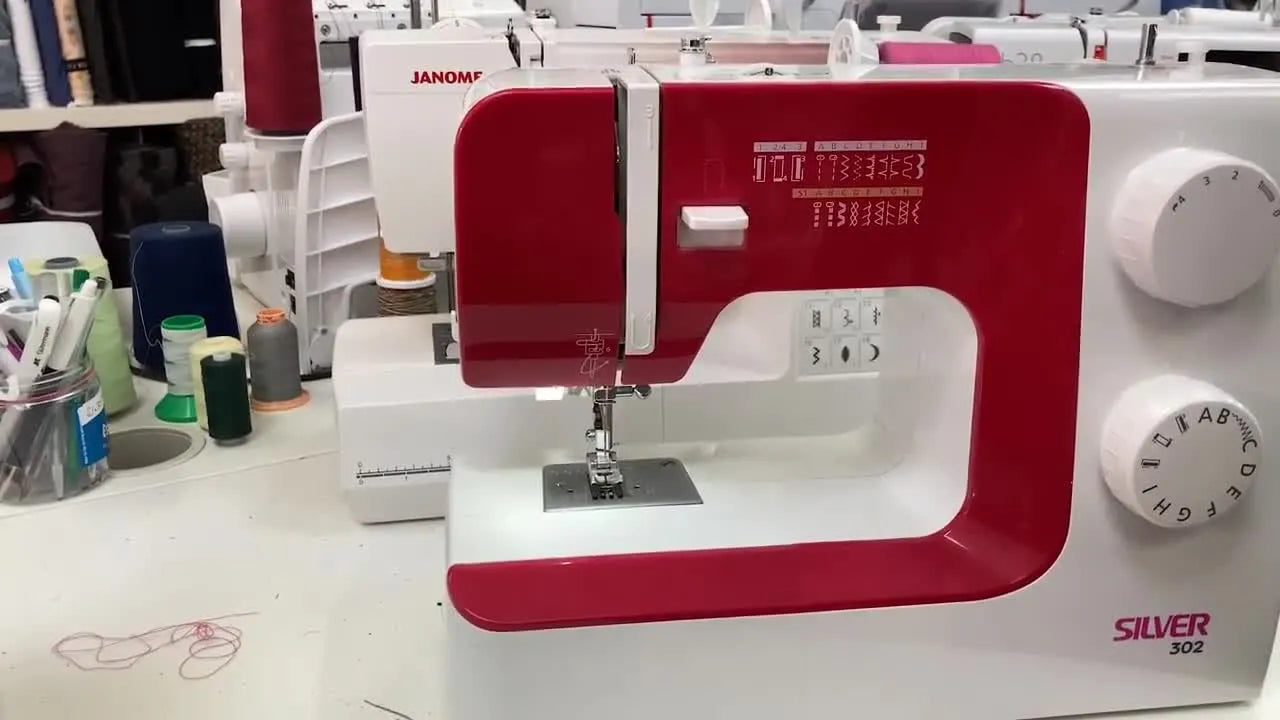

The video introduces the compact yet delicate world beneath your sewing surface—the bobbin compartment. Karen shows the Silver 302 model, a clear match for many domestic designs.
Identifying when your bobbin has fallen out or jammed
A bobbin jam is usually betrayed by stuck fabric or a frozen needle. Before you apply force, switch off the power and remove the accessory tray.
The critical role of the bobbin housing
Two tiny levers keep this quiet system together. If they slip, the housing pops loose and your bobbin spills out. Keep an eye on how each piece—bobbin, case, and oval ring—fits in sequence.
Step-by-Step Disassembly and Cleaning
Taking things apart can feel daunting—but clarity reigns once you see what belongs where.
Accessing the bobbin area and removing components
Gently pull down the accessory tray to expose the lower workspace. Push both small black levers outward; the internal mechanism will slide free. Place each component aside as Karen does.
Clearing jams and essential lubrication tips
After removing stray threads and lint, use a small brush for detail cleaning. Apply a minute dot of oil with your fingertip to keep the mechanism turning smoothly.
From the comments: one viewer reminded everyone to ensure no yarn remains wound around any rod before reassembly. Their warning underlines why cleaning first saves hours later.
Precise Reassembly of the Bobbin Housing
Now comes the satisfying rebuild. The motion of the flywheel—always turned toward you—sets the alignment.
Aligning the internal mechanism (the 'half-moon')
Inside, you’ll notice a metal semicircle. Turn the flywheel until it runs vertically from six to twelve o’clock, lined on the left-hand side.
Inserting the bobbin case and securing the oval ring
Hold the bobbin case by its pin, fork downward, and slide it straight into place. You’ll feel a smooth fit.
At this point Karen introduces the oval ring—bottom peg, top notch—and shows how it snaps into the machine frame with a click.
From the comments: a beginner mentioned discovering an extra red part. Karen replied, asking for a photo through her website to identify it—a perfect model of supportive teaching.
Tiny interlocks like these mimic how magnetic fittings connect in tools such as mighty hoop for brother pr1055x. It’s all about alignment and audible feedback.
Threading the Bobbin for Perfect Tension
After its mechanical core snaps together, it’s time to give the bobbin its lifeline of thread.
Correct bobbin winding direction (clockwise)
Hold the bobbin so thread runs off the right side while the pigtail guide faces upward. Slide it onto the internal peg, letting it unwind clockwise.
Guiding the thread through the tension clip
Lead the thread under the metal tension spring and into the clip. You’ll hear a delicate click.
The tension test is simple: hang the bobbin case by its thread. It should drop slowly—not plummet or hang stiff. Re-seat it, aligning the pigtail cutout, then press firmly until another click signals it’s seated.
Final Steps: Machine Threading and Testing
Thread the upper system as usual, then bring both threads to the same side for an initial stitch. Turning the flywheel toward you, watch the needle dive, loop, and pull up the bobbin thread.
When two threads lie neatly under the foot, you’re ready for a test sew.
Select the straight ‘A’ stitch and set length around 2.5 for cotton fabric. Place scrap fabric under the presser foot, lower it, and start sewing at a moderate pace.
Karen demonstrates forward and reverse stitching to close seams cleanly. No grinding or stuttering means the reassembly succeeded. If stitches are uneven, review that the bobbin turns clockwise and the ring clicked firmly.
For those moving into embroidery, knowing this core mechanism helps you troubleshoot more advanced frames like magnetic hoops for brother embroidery machines or snap hoop monster for babylock, where tension and alignment principles mirror this process.
Troubleshooting Common Bobbin Issues
Even with careful setup, small missteps can sneak in.
What to do if stitches are uneven
Uneven tension often comes from mis-threaded bobbin cases. Reseat the case, ensuring that gentle pull test gives slight resistance.
Preventing future bobbin problems
Keep your workspace free of lint, and oil lightly after every few projects. Fold a piece of spare cotton under the needle when storing to protect the feed dogs. Also, rotate practice: anytime you change thread weight or machine model—from a compact domestic to a magnetic embroidery hoops for janome unit—always double-check tension balance first.
From the comments: viewer stories prove the value of calm repair. Several thanked Karen for rescuing their “broken” machines; all it took was proper alignment.
Reassembling a bobbin housing might look mechanical, but it’s actually an exercise in mindfulness—matching shapes, feeling clicks, understanding flow. That precision prepares you for any future upgrade, whether restoring a trusty Silver 302 or dialing in a modern barudan magnetic embroidery frame or bai magnetic hoops rig. Different machines, same mechanical poetry.
Before you start your next project, glance once more at your bobbin window—it’s the little orchestra conductor that makes every stitch sing.
