Optimize Your Vinyl Sound: Complete Hudson Hi-Fi Turntable Alignment Guide
Learn how to perfectly align your turntable’s cartridge, adjust vertical tracking angle (VTA), and set accurate tracking force (VTF) with the Hudson Hi-Fi Deluxe Cartridge Alignment Kit. This hands-on walkthrough helps you unlock detailed, distortion-free sound from your vinyl collection.

Educational commentary only. This page is an educational study note and commentary on the original creator’s work. All rights remain with the original creator; no re-upload or redistribution.

Please watch the original video on the creator’s channel and subscribe to support more tutorials—your one click helps fund clearer step-by-step demos, better camera angles, and real-world tests. Tap the Subscribe button below to cheer them on.

If you are the creator and would like us to adjust, add sources, or remove any part of this summary, please reach out via the site’s contact form and we’ll respond promptly.

Table of Contents
  1. Understanding the Importance of Turntable Alignment
  2. Unboxing the Hudson Hi-Fi Deluxe Cartridge Alignment Kit
  3. Step-by-Step Cartridge Alignment with the Protractor
  4. Setting the Vertical Tracking Angle (VTA) Correctly
  5. Mastering Vertical Tracking Force (VTF) with the Digital Scale
  6. Fine-Tuning for the Ultimate Turntable Experience

Understanding the Importance of Turntable Alignment

Getting precise alignment isn’t just a ritual—it’s how your music breathes. Proper alignment keeps your stylus following grooves cleanly, avoiding distortion and record wear. The Hudson Hi-Fi system breaks complex geometry into logical checkpoints for easy calibration.

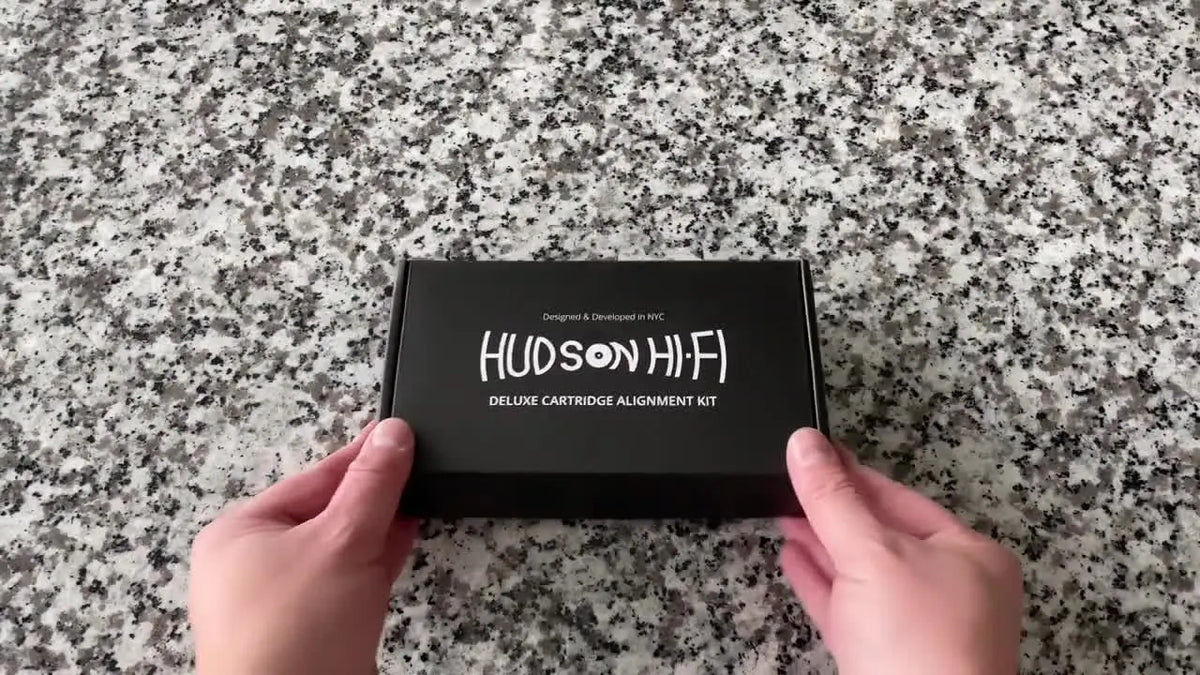

Hands holding the Hudson Hi-Fi Deluxe Cartridge Alignment Kit box.
The Hudson Hi-Fi Deluxe Cartridge Alignment Kit packaging sets the stage for precise analog calibration.

When the cantilever and grooves are perfectly tangent, the result is a silent background and distinctly layered soundstage—proof that analog purity lives in precision.

Back of Hudson Hi-Fi kit box listing contents.
Box back lists alignment tools included in the kit.
💡 Before diving in, ensure your turntable is on a level surface and free from vibration. Good lighting and a steady hand go further than pricey tools.

Unboxing the Hudson Hi-Fi Deluxe Cartridge Alignment Kit

Opening the kit reveals a thoughtful presentation: the vertical tracking angle alignment block, a digital scale, a protractor, and the EVA case that ensures these tools stay dust-free.

Kit opened showing user guide.
An instruction guide greets you first during unboxing.

Audiophiles in the comments loved the durable storage and clear markings—especially helpful for visual checks of tonearm levelness.

Hands holding EVA protective case.
The EVA case safely stores your precision tools.

Each component feels purpose-built. The protractor’s crisp crosshatch grid helps visualize accuracy, while the alignment block’s etched lines eliminate guessing during setup.

Close-up vertical alignment block.
The alignment block helps verify tonearm level for accurate VTA.

Don’t overlook the small accessories like the batteries and 5-ounce calibration weight; they’re essential for precise VTF tests.

Batteries and 5-ounce weight.
These included accessories power and calibrate your scale.

Many vinyl enthusiasts compare this organization to embroidery precision—they appreciate balance and repetition much like crafting with magnetic embroidery hoops for brother.

Hands holding high-contrast protractor.
The protractor enables precise cartridge alignment at two tracking points.

Step-by-Step Cartridge Alignment with the Protractor

Lay the protractor on your platter spindle, release the tonearm, and gently lower the stylus onto the outer crosshatch. Top-down viewing ensures the cartridge body aligns perfectly with the grid lines.

Turntable with protractor on spindle.
Place the protractor on the spindle before lowering the tonearm for alignment.

If misaligned, raise the tonearm, loosen the screws slightly, and make micro adjustments left or right until both outer and inner null points line up evenly.

Stylus lowered onto protractor crosshatch.
The stylus touches the crosshatch grid for top-down alignment checks.

The adjustment process mirrors the tactile feedback of aligning nested hardware such as magnetic embroidery hoops for embroidery—precision in the small margins brings the best result.

Loosening cartridge screws with Allen wrench.
Minor screw adjustments fine-tune the cartridge’s angle.

Once you’ve verified alignment at both points, re-tighten the screws carefully. From the YouTube comments, seasoned users stressed focusing on the cantilever’s straightness, not just the cartridge body. Light magnification helps confirm it’s truly square. Remember to respect torque; over-tightening risks thread damage.

✅ After securing the screws, gently cue the tonearm across a record to ensure smooth, centered motion. If it drifts inward or outward, revisit alignment.

Setting the Vertical Tracking Angle (VTA) Correctly

At this stage, balance visual and auditory cues. The goal is a tonearm parallel to your record’s surface. Place the VTA block on the platter and assess the arm’s angle side-on.

Tonearm resting on alignment block.
Check that the tonearm sits parallel to the gauge lines for correct vertical angle.

If your tonearm slopes up or down, adjust the base height until horizontal.

Adjusting tonearm height ring.
A quick ring adjustment fine-tunes the tonearm height.

For turntables without height adjustment, a simple workaround—suggested by viewers—is swapping to thinner or thicker mats to fine-tune elevation. Much like ensuring proper hoop height in textile crafts using embroidery hooping station embroidery tools, subtle differences yield professional-caliber balance.

⚠️ Avoid tapping or shifting your turntable during this step. Even a light jolt can throw off angle perception.

From the Comments: A few enthusiasts noted that beginners’ decks may lack fine-tune rings for VTA. In those cases, a minute platter-height change can often correct the geometry.

Mastering Vertical Tracking Force (VTF) with the Digital Scale

VTF defines how firmly your stylus sits in the groove. Too light and it skips; too heavy and it erodes the groove. Press the button to open the dynamometer, zero it on your empty platter, and lower the stylus onto its sensor dot.

Opening the digital dynamometer.
The digital scale is opened and powered on before measurement.

Observe the readout—start readings around 5.59 grams as demonstrated, then fine-tune by moving your counterweight until the measurement meets your cartridge specs.

Digital dynamometer showing 5.59 grams.
Tracking force readout displays initial downforce measurement.

Small motions make large differences, akin to carefully clamping material with magnetic hoop embroidery.

Once adjusted, remeasure; the display should show stability within tenths of a gram.

Scale reading 4.09 grams after adjustment.
After adjustment, the reading reflects an ideal force within cartridge specs.

For cartridges needing higher pressure, add the included 5-ounce weight, re-zero the scale, and measure again to include the offset.

Calibration weight on dynamometer.
The kit’s 5-ounce weight expands measurement range for higher-tracking setups.

From the Comments: Several viewers mentioned balancing the tonearm before using the scale ensures accurate readings. Others reminded to set bias correction to zero during calibration to prevent lateral force errors.

💡 Check with your cartridge manufacturer for the optimal VTF range. Deviating even by 0.5 grams can change tonal texture dramatically.

Analog balancing, when done right, can feel as exacting and rewarding as aligning magna hoops embroidery—both pursuits rely on control and iteration.

Fine-Tuning for the Ultimate Turntable Experience

Once VTA and VTF are locked in, take time to listen. You’ll hear crisper highs, deeper bass, and a cohesive midrange free from distortion. Like any precision craft—be it tonearm geometry or hoop framing—consistent verification maintains results.

Maintenance

💡 Recheck your settings after cartridge swaps or roughly every six months of heavy use. Keep your kit in its EVA case to prevent dust affecting instruments.

From the Comments: Users expressed gratitude for the kit’s simplicity but requested follow-ups covering azimuth and overhang adjustments—two aspects outside this video’s scope but worthwhile for advanced tuning.

Analog listening rewards patience. Just as artisans rely on embroidery hooping station kit for spotless embroidery alignment, audiophiles rely on dedicated calibration to sculpt sonic art. In mastering your own alignment, you transform playback from ordinary to transcendent.

Final Reflection Every detail—the grid viewed from above, the subtle lift of a ring, the decimal flicker on a digital scale—adds up to a ritual that bridges mechanics and music. Align with care, listen with intent, and your favorite records will thank you.
