Introduction to Cutwork Embroidery with a Boring Needle
If embroidery makes fabric dance, cutwork makes it breathe. This technique removes small parts of the fabric to create open areas surrounded by neat thread outlines.
What is Cutwork Embroidery?
Cutwork designs often appear as lace-like patterns. The boring needle doesn’t rely on thread—it pierces and removes fabric sections that the design dictates.
The Role of the Boring Needle
Unlike a regular embroidery needle, a boring needle features a hardened tip suited for puncturing fabric cleanly. It’s irreplaceable when producing open holes in motifs such as petals and geometric frames.
Preparing Your Embroidery Machine for Cutwork
Before turning on the machine, create a clutter-free workspace and gather tools like a small screwdriver, your embroidery machine, and the boring needle.
When setting up, consider accessories that help maintain stability. For instance, many embroiderers pair their setup with magnetic hoops for brother embroidery machines to secure fabric without excess pressure.
Tools You’ll Need
- Embroidery machine (the Swift model is shown)
- Boring needle
- Screwdriver for needle clamp
- Selected fabric sample
Initial Checks
Verify that the boring needle is clean and aligned straight. Also, make sure hoop tension is even, especially if you’re using modern grip systems such as babylock magnetic hoops.
Step-by-Step Needle Replacement
Learning to change needles is fundamental. Shubha demonstrates it methodically.
Removing the Standard Needle
First, loosen the small screw near the needle bar using a screwdriver. Hold the old needle while removing it to prevent it from falling inside the machine.
Installing the Boring Needle

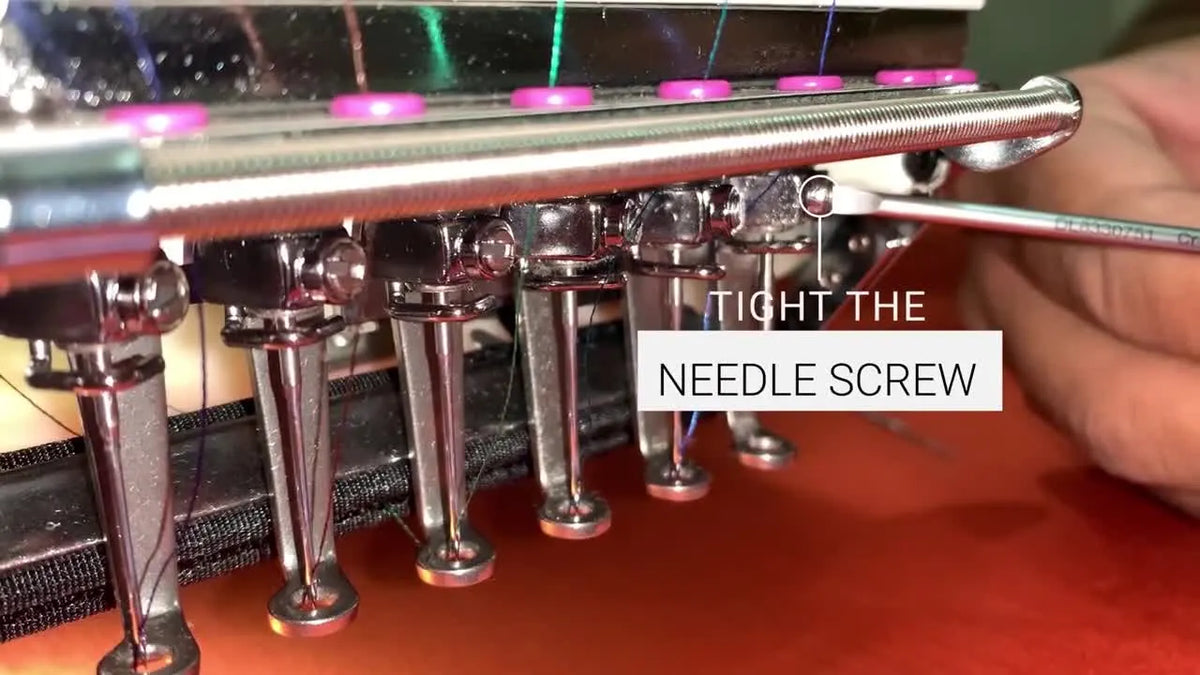

Insert the boring needle until it stops gently, then tighten the screw securely. Avoid overtightening—the threads can strip easily.
Once installed, the needle shaft should stay perfectly vertical when viewed head-on. Some crafters using industrial systems like tajima embroidery machine hoops find that small centering lasers help verify alignment quickly.
Configuring Machine Settings for Boring
With the boring needle secured, navigate to the embroidery machine’s touchscreen settings.
Locate the option marked ‘Needle of Boring’. Select the slot number where your needle is placed—here it’s 1—then save and exit.
Keeping track of these configurations prevents the design from mixing stitch and cut stages. Advanced users who employ magnetic embroidery hoops for brother appreciate that such fixtures align fabric consistently across runs, eliminating misreads in needle mapping.
> From the comments: Viewers noted some design conversions can cause lost stitch data. One pointed out that converting certain file formats like .dst may not retain fill stitch information, which confirms why checking compatibility before starting is crucial.
Selecting and Assigning Cutwork Designs
Now for creativity. Load your design file—the example demonstrates a floral cutwork pattern.
Use the design editor to assign which needle performs each section. The first color might cover outlines, while the boring needle handles all cutting sequences. Misassigning leads to skipped or torn sections.
Executing the Cutwork Embroidery Process
Once satisfied with the setup, gently press the green start button. The first passes carve out small holes—the moment when fabric begins transforming into ornate lace.
During operation, observe closely. The boring needle performs the cuts, followed by needles that outline and reinforce edges. Watch your embroidery evolve as layers of movement and light join together.
Monitoring Progress
Check every few minutes to ensure clean perforation. If holes seem fuzzy, pause—either your needle is dull, or hoop tension uneven. Embroidery stations equipped with magnetic embroidery hoop embroidery systems allow smoother re-hooping if adjustments are needed mid-design.
Finalizing Your Cutwork Design
When stitching stops, release the hoop and examine the result.
Look for firm edges where satin stitches encircle the openwork. Trim any stray threads. If needed, iron gently on the reverse side with a pressing cloth.
Tips for Clean Edges
Use new needles frequently; dull ones fray fibers instead of puncturing them. Consider backing the piece with water-soluble stabilizer before embroidering—it dissolves later, leaving perfectly clean windows.
For advanced setups seeking repeat production, systems like magnetic embroidery frames or baby lock magnetic hoop ensure fast fabric swaps without disturbing registration.
From the Comments
Community feedback praises the clarity of Shubha Sewing’s method, though several users wondered about sourcing the specialized boring needle or design files. While the video doesn’t specify suppliers, viewers recommend checking local machine dealerships or online embroidery specialty stores for compatible parts.
One thread also mentioned a common file-conversion issue—tatami stitches shifting to manual lines—which reminds creators to verify design formats before exporting.
Cutwork, once a delicate hand process, becomes approachable with this step-by-step method. By mastering the boring needle setup and respecting your machine’s configuration, you can transform basic fabric into timeless openwork art.
