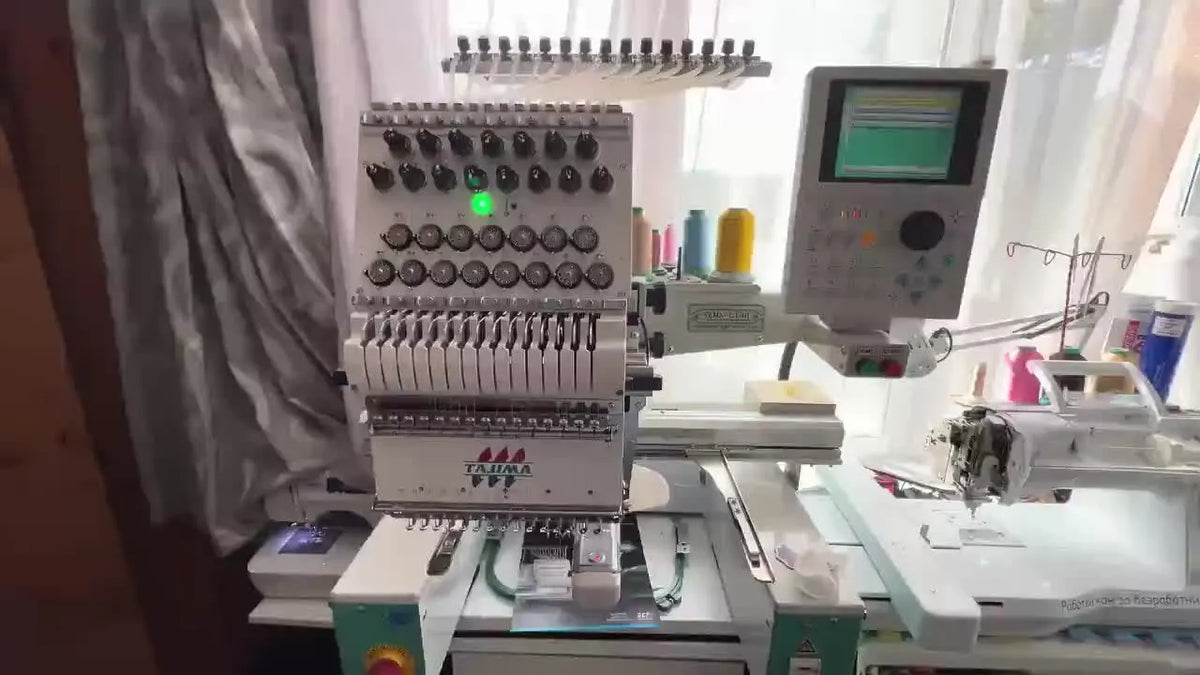

Understanding Your Embroidery Machine's Lubrication Needs
Every moving thread path in your multi-needle machine depends on clean, friction-free surfaces. Neglecting them leads to squeaks, sluggish motions, or—worse—breakdowns.
Why Regular Oiling & Greasing is Crucial
A lack of oil or grease quickly shows through poor stitch quality. The maker demonstrates stiff take‑up levers caused by dried joints—proof that lubrication is preventative medicine, not decoration.
Identifying Key Lubrication Points
From back‑mounted take‑up levers to the internal cams deep behind metal covers, each area has a purpose. Keeping them supplied with sewing machine oil ensures better precision stitches.
Essential Tools and Materials
Gather a flat‑head screwdriver, spray oil, lithium paste grease, and a small brush or applicator.
Step-by-Step Oiling Procedures
Lubricating Thread Take-Up Levers (Front & Back)
The video begins with the rear access points. A spray of oil across each lever gap loosens hardened residue. Rotate the head from needle 1 to needle 15 to complete coverage, then step around front for the corresponding screws and pivot bearings.
Oiling the Reciprocating Shaft and Side Openings
The reciprocating shaft, reached under the side cover, receives an oil spray through a precision opening. Adding lithium grease to the visible cam keeps downward motion stable.
Applying Oil to the Main Rail and Screws
Once the back and side are complete, shift focus to the front rail that guides needle movement. Two or three light sprays run the length of the bar, catching each screw point.
Greasing Critical Cam Mechanisms
Lubricating Hidden Side Cam Mechanisms
Removing a small rear cover exposes an internal cam that demands grease rather than oil. Apply moderately; excess quickly collects dust.
This technique also works for other brand setups such as those used in magnetic hoops for tajima embroidery machines, since internal cams behave similarly across multi‑needle formats.
Greasing Take-Up Lever Cam Rollers
Using a brush or fingertip, smear grease across every cam roller. Pivot from needle 1 to 15 to reach them all. Too much grease? Wipe away the shine.
Addressing Take-Up Lever Pivots
For final finesse, finger‑apply grease onto both the front and rear pivots of the take‑up assembly.
Rotary Hook and Needle Bar Maintenance
Cleaning and Oiling the Rotary Hook
Compressed air first, oil second—the only correct order. Blow away lint, then apply one or two sprays inside the hook cavity.
An excellent maintenance crossover item for this process would be magnetic embroidery hoops for tajima, which allow easier hoop removal when servicing near the rotary hook.
Lubricating the Needle Bar Opening
A brief oil pulse into the needle‑bar channel minimizes friction at high stitch speeds.
Advanced Lubrication Points and Best Practices
Identifying Frequently Missed Grease Points
The concluding frames of the video highlight a nearly invisible port on the machine’s flank—a critical greasing spot for long‑term use. A small dab here every two to three months prevents metallic grinding.
Lubrication strategies translate well for allied multi‑needle setups such as barudan embroidery machine hoops or even compact happy embroidery machine systems, where internal shafts mirror Tajima’s design logic.
Recommended Lubrication Schedule
- Every other week: Light oiling for take‑up levers, rails, and the hook.
- Every other month: Comprehensive greasing of cams and pivots.
- Every 2–3 months: Verify the hidden greasing port and replenish.
From the comments: Viewers expressed gratitude for this clarity, requesting future coverage on X/Y axis lubrication—proof that consistent explanation helps demystify complex machinery.
Ensuring Optimal Performance and Preventing Failures
Routine lubrication can avert costly shop downtime. When in doubt, inspect all mechanical junctions for dry residue—then revisit these steps as insurance. Common user issues like stitch misalignment or idle needle bars often trace back to simple dryness.
Maintaining your machine might even extend to companion tools such as magnetic hoops for brother embroidery machines or magnetic embroidery hoop, since hooping quality affects vibration and wear. Integrating upkeep across accessories ensures consistent embroidery results.
Finally, celebrate the rhythm of good maintenance: a quiet, smoothly humming Tajima—that’s the reward for every drop of oil applied with care.
