Master Your Handi Quilter Bobbin Winder: A Complete Guide

Our expert guide demystifies every step of using the Handi Quilter bobbin winder—from unboxing to fine-tuning. You'll learn how to assemble, thread, and calibrate your winder for firm, even bobbins that deliver consistent stitch quality every time. Perfect for both new and seasoned longarm quilters, this piece highlights essential checks and troubleshooting notes shared by fellow quilters in the comments.

Educational commentary only. This page is an educational study note and commentary on the original creator’s work. All rights remain with the original creator; no re-upload or redistribution.

Please watch the original video on the creator’s channel and subscribe to support more tutorials—your one click helps fund clearer step-by-step demos, better camera angles, and real-world tests. Tap the Subscribe button below to cheer them on.

If you are the creator and would like us to adjust, add sources, or remove any part of this summary, please reach out via the site’s contact form and we’ll respond promptly.

Table of Contents
  1. Unboxing and Assembling Your Handi Quilter Bobbin Winder
  2. Powering Up and Preparing for the First Wind
  3. A Step-by-Step Guide to Threading the Winder
  4. Operating the Winder: Speed and Control
  5. Achieving the Perfect Bobbin: Key Adjustments
  6. Quality Control: How to Check for a Perfectly Wound Bobbin
  7. Troubleshooting Common Bobbin Winding Issues
  8. From the Comments: Community Fixes and Insights

Unboxing and Assembling Your Handi Quilter Bobbin Winder

The winder arrives with all essential parts: thread post, mast, washers, nuts, and cords. Begin by preparing a flat, stable surface for assembly.

Screwing the metal thread post into the top of the bobbin winder.
Begin assembly by placing the washer and securing the thread post tightly.

Attaching the Thread Post and Mast

Place the washer on the first threaded hole, then secure the post tightly.

Attaching the long metal thread mast.
Screw in the mast and align the loop directly above the thread post.

Next, assemble the tall mast, orienting the swirl of the thread guide downward. Adjust the nut so the mast loop sits directly above the post—critical for proper thread flow.

Positioning the Pigtail Thread Guide

Slide on the pigtail guide and tighten it using a hex wrench.

Tightening the pigtail guide with a hex wrench.
Position the guide to the left of the tension assembly.

Keep it slightly to the left of the tension assembly so the thread travels in a gentle U-shape.

💡 Incorrect guide placement can cause uneven tension later—double-check before tightening.

Powering Up and Preparing for the First Wind

Plug the DC cord into the back of the winder, then connect the main power adapter to the wall.

Plugging the DC cord into the winder.
Ensure the DC power cord is fully connected before plugging in.

The winder powers on immediately when connected.

If you use very large cones of thread and notice them jumping or wobbling, try placing them on a separate stand next to the winder for stability.

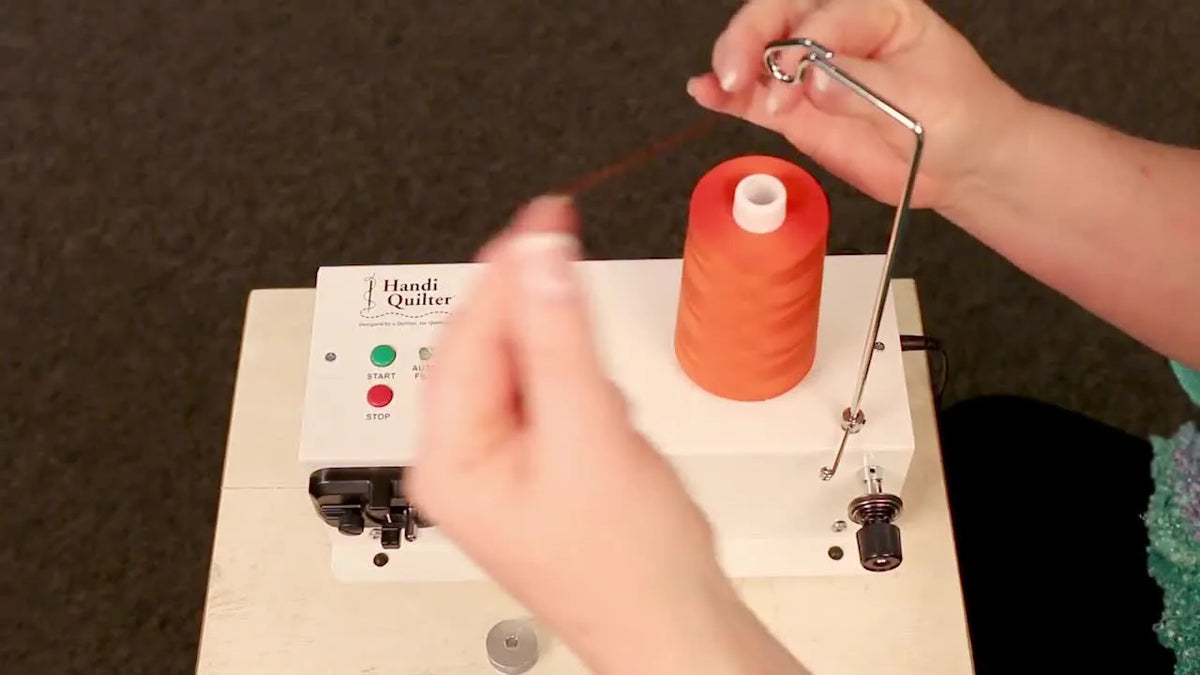

Cone of orange thread on the winder threaded through mast loop.
Guide thread from cone up through loop, down to the tension assembly.
✅ Make sure the unit is plugged in—it won’t start otherwise. Starting slow helps you confirm the setup before going full speed.

A Step-by-Step Guide to Threading the Winder

Place a cone of thread on the post and bring it through the mast loop. Pull the thread down through the pigtail guide, then snap it between the tension discs—listen for the click.

Thread snapped between tension discs.
Listen for a click as the thread seats securely.

Seating the Thread in the Tension Discs

That click matters: it means the thread is correctly seated. Without it, the bobbin will wind soft and uneven.

Thread tail through bobbin hole.
Feed thread tail through bobbin hole before placing on post.

Prepping the Easy Wind Bobbin

Feed the thread tail through a small hole from the bobbin’s center outward. Then place the bobbin on the post, ensuring it sits snugly.

⚠️ If thread constantly slips from the tension discs, an extra wrap around the disc or reversing the threading direction can help.

For quilters using specialty machines—like adding accessories from magnetic hoops for embroidery systems—the same precision in alignment matters here, too.

Operating the Winder: Speed and Control

Start at a low speed by turning the dial counterclockwise. Hold the thread tail loosely and press the green START button.

Pressing start button to begin winding.
Press 'START' at low speed for your first wind.

Once the thread tail breaks away, the bobbin will continue filling. Increase speed only once it’s spinning smoothly.

The aim is even thread travel across the bobbin’s surface, building layers that glide side-to-side like fine stitches on fabric.

Thread winding evenly across bobbin.
Check that thread traverses evenly side to side.
💡 With delicate thread, keep speed around “5.” Faster settings can stretch thread and warp bobbin sides.

Here, precision feels a lot like working under the steady grip of a magnetic embroidery hoop.

Achieving the Perfect Bobbin: Key Adjustments

You control how full your bobbin gets by loosening a small side screw and sliding the bobbin post assembly. Slide out for a fuller wind, in for less.

Adjusting fill level slider.
Slide assembly in or out to set auto-stop fill level.

The winder uses a laser sensor to detect fullness and stop automatically—a feature appreciated by every quilter who multitasks mid-session. When winding for intricate embroidery with tools like dime magnetic hoops, the same accuracy ensures thread tension remains steady across projects.

To continue winding after an auto-stop, press and hold START again to override the sensor.

Fine-Tuning Thread Tension

To increase firmness, turn the tension knob right; to ease it, turn left.

Turning black tension knob.
Fine-tune tension—right to tighten, left to loosen.

Adjust gradually, test small winds, and compare firmness.

It’s the same patient calibration embroidery enthusiasts practice when aligning a magnetic embroidery frame on their machines.

Quality Control: How to Check for a Perfectly Wound Bobbin

Remove the bobbin and press gently with a fingernail or scissor tip.

Testing firmness of wound bobbin with scissors tip.
Firm bobbins should resist finger pressure.

A perfect wind feels firm and resists indentation.

Soft, loose bobbin example.
A soft bobbin signals incorrect tension—rewind it.

Soft, spongy bobbins indicate loose tension—rewind after re-seating the thread in the discs.

✅ Firm bobbins produce balanced stitches. Loosely wound ones lead to tangling or skipped patterns.

This diligence pays off especially when transferring to brother embroidery machine setups requiring consistent lower tension.

Troubleshooting Common Bobbin Winding Issues

Even with correct setup, problems can occur. Two frequent fixes:

Fixing Uneven Winding

If thread lays thicker on one side, turn the rear adjustment knob slightly while winding to balance the travel.

Finger pointing to adjustment knob at back.
Turn knob slightly to fix uneven winding.

Adjusting Bobbin Fit on the Post

Check that bobbins slide on firmly without slipping. If it’s too tight, gently squeeze the post prongs together with pliers.

Squeezing bobbin post with pliers.
Tight fit? Use pliers to narrow the prongs slightly.

Too loose? Spread them slightly with a screwdriver.

Widening post prongs with screwdriver.
If bobbin slips, widen prongs just a touch.

Tiny adjustments have big impact.

⚠️ Apply light pressure—breaking the post prongs means replacements are needed.

Quilters have compared this delicate adjustment to aligning hoops like tajima embroidery machine hoops—precise yet rewarding once mastered.

From the Comments: Community Fixes and Insights

The quilting community shares wisdom worth bookmarking:

  • If the thread pops out, wrap it once more around the tension disc—it solves jumpy threads.
  • Large cones may need a separate thread stand beside your winder.
  • When a bobbin fails to spin while the spindle does, gently pry post prongs apart; many readers say this fix saved their projects.
  • Fine threads (like Glide) benefit from slower speeds and slightly looser tension. Pairing that mindfulness with strong holding systems such as barudan magnetic embroidery hoop setups helps maintain thread consistency in broader embroidery contexts.

One user summed it up: “Firm bobbins, happy stitches.”

Instructor standing by a Handi Quilter machine.
Perfect bobbins mean your quilting can begin!

By mastering Handi Quilter’s bobbin winder, you’re investing in smoother quilting sessions and fewer thread frustrations. And if you also explore embroidery, this same sense of precision will help whenever you switch to modular systems—from magnetic embroidery hoop for brother pr1055x alignments to magnetic embroidery hoops for janome adjustments.

Final Thought

Every even, firm bobbin is a quiet promise of flawless quilting ahead. Keep your setup consistent, tension balanced, and threads happy—your quilts will mirror that excellence.
