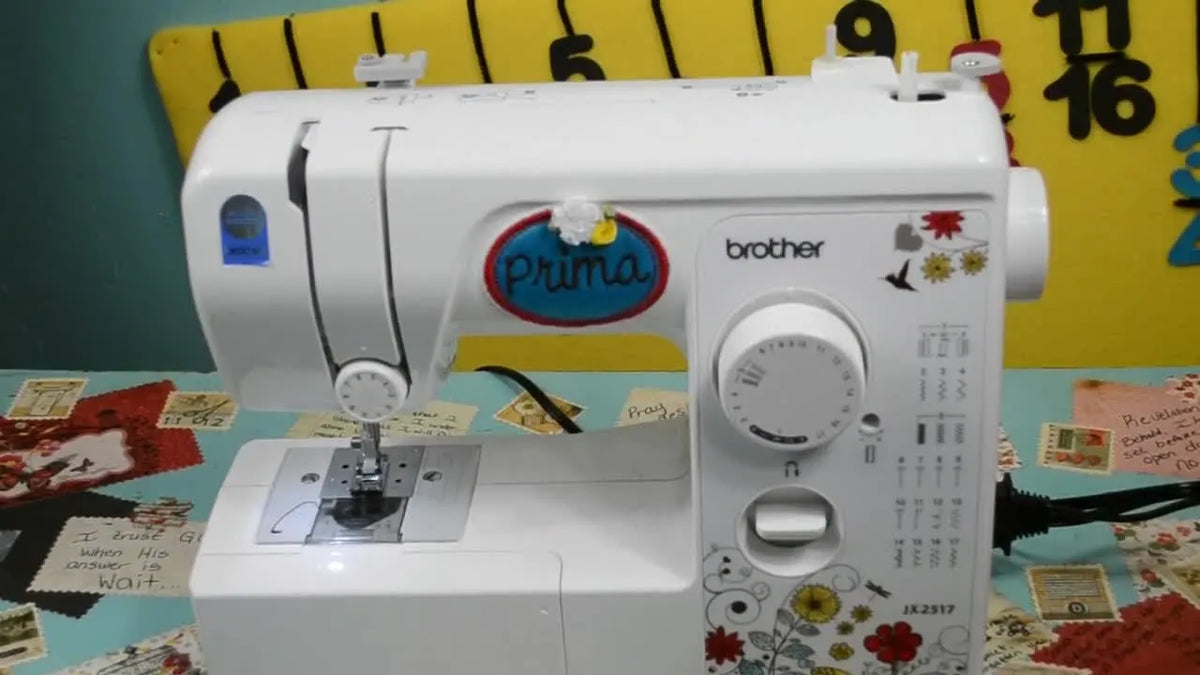

A practical, beginner-friendly breakdown of winding and loading a bobbin on the Brother JX2517 machine, drawn directly from the Sew It and Show It! workshop video. Includes visuals, key moments, and real viewer insights to help every beginner get sewing faster—and with confidence.
Table of Contents
What You'll Need
A few essentials and a well-lit workspace are all it takes: a spool of thread, an empty bobbin, the sewing machine plugged in, and a pair of scissors for trimming. These basics prep the foundation for reliable stitching.
Many viewers mentioned this tutorial was more helpful than the original manual—proof that sometimes a clear visual makes all the difference.
Part 1: Winding the Bobbin
Setting Up the Thread Spool
Pull up the spool pin on top of the machine and pop your thread spool into place. The thread should unwind smoothly from the side, not jerking from above. This motion prevents uneven tension while winding.
Following the Winding Guide
Now locate the bobbin-winding diagram printed on top of the Brother JX2517. This small map visually directs the thread through the correct tension discs and guides. As you thread through, loop the path exactly as drawn.
Winding with the Foot Pedal
Slip the thread end through one of the small holes in the bobbin, from inside to out. Drop the bobbin on the winding shaft and push the shaft to the right until it clicks. Power on the machine, and lightly tap the foot pedal to start winding a few wraps. Stop, trim the tail, then hold steady pressure until the bobbin fills evenly.
The JX2517 cleverly slows down as the bobbin fills, signaling that it’s full—time to ease off that pedal.
Some sewists mentioned that winding helps them appreciate the machine’s rhythm. Once you’ve mastered this step, your next projects—from simple repairs to decorative work with magnetic embroidery hoops—will run much smoother.
Trimming and Removing the Filled Bobbin
Cut the thread connecting the bobbin to the spool, slide the winder shaft back to its left position, and lift off the freshly wound bobbin. The surface should look level, not domed or lumpy.
> From the comments: Several beginners reported feeling relief after realizing that slight thread gaps near the flange edge aren’t a disaster—what matters is even tension across the middle.
Next, lift the presser foot lever (it’s found behind the needle assembly). This action releases tension, creating room to insert the bobbin later.
Part 2: Loading the Bobbin into the Machine
Opening the Bobbin Compartment
Slide the clear bobbin cover toward you. This reveals the drop-in bobbin system, which eliminates the need for a removable case—one less part to misplace!
> Viewer question: “Does this model use a separate case?” The instructor clarified that the JX2517 is a drop-in design. Neat and beginner-friendly.
If you’re using other machines—say, a brother embroidery machine—drop-in mechanics might differ slightly, so always refer to its on-body guide.
Placing the Bobbin Correctly
Hold the bobbin so that the thread unwinds counter-clockwise. This direction matters because it enables proper tension once fed through the notch. The machine’s plate diagram helps confirm this.
> Common error: Inverting the bobbin orientation can cause tangling or looping on the underside of fabric.
Routing and Cutting the Bobbin Thread
Follow the etched track forward, sliding the thread into the tension notch. Continue along the groove until you reach the small built-in blade—it trims the excess perfectly.
One commenter struggling with thread “not catching” eventually fixed it by pulling both threads (upper and bobbin) 6–8 inches out before sewing. This simple extension makes the stitch pickup reliable.
If you use top-loading designs beyond basic machines—like brother sewing and embroidery machine models—the same logic applies but with more advanced thread sensors that detect if the bobbin is misfed.
For enthusiasts combining sewing and embroidery, consistent winding supports hoop alignment. Whether you’re setting up standard stitching or experimenting with magnetic embroidery hoops for brother accessories, even thread tension remains the unsung hero.
Closing the Bobbin Cover
Slide the cover back until it clicks firmly into place.
Should your cover ever break, sewists recommended checking reputable parts suppliers like SewingPartsOnline.com or the official Brother support store.
Using brother magnetic hoop systems later in your journey? This tidy finishing habit—cover snapping securely—is the same precision mindset that improves embroidery placement accuracy.
> Quick note: One viewer wondered if it’s safe to sew without a bobbin. Short answer: No—without it, the machine can’t form an interlocking stitch.
Congratulations! You're Ready to Sew
Snap the cover closed, tuck the thread tails neatly, and exhale—you’ve done it! This simple sequence is the foundation for any stitch, decorative or utility. Every garment, quilt, or craft starts with a well-set bobbin.
> From the comments: Sewists shared heartfelt success stories—from fixing their grandchildren’s pants to finally dusting off a long-packed machine. Many found that learning to balance the bobbin built new creative confidence.
Before you race off to your next project, remember: consistent practice and gentle maintenance keep the Brother JX2517 humming smoothly. That confidence transfers beautifully when venturing into decorative work or using professional attachments like the brother embroidery hoops.
So plug in, thread up, and enjoy the satisfaction of the first perfect seam.
