This complete guide unpacks the Melco video Running Hats On SUMMIT, revealing every key move to embroider on structured and unstructured caps. You’ll learn how to install the cap gauge, hoop your hat like a pro, and fine-tune both hardware and software for crisp designs that line up perfectly on every bill.
Table of Contents
- Essential Prep: Setting Up Your Workspace
- The Art of Hooping: Securing Your Cap for Success
- Machine Conversion: Installing the Cap Driver
- Fine-Tuning: Adjusting the Cap Driver Height
- Software Setup: Configuring the Melco SUMMIT OS
- Perfect Placement: Centering Your Embroidery Design
- From the Comments: What Viewers Loved and Asked
Essential Prep: Setting Up Your Workspace
A sturdy table or bench ensures stability when clamping the cap gauge. Open the gauge clamp fully, position it flush against the tabletop edge, and tighten until snug. Stability here prevents vibration when hooping.
The Art of Hooping: Securing Your Cap for Success
Hooping sets the foundation for all hat embroidery. Place the cap hoop onto the gauge until it clicks. For structured caps, insert a single layer of backing; for soft ones, double it and use clips for stability.
Fold out the sweatband, slide the cap over the backing, and seat the bill flush with the hoop tab. Press the toothed strap into the crown‑bill seam—this anchors the cap neatly.
Now tension the strap evenly by tightening the two left‑hand wingnuts.
If the strap isn’t level, the embroidery will sew crookedly—unlatch, re‑seat, and retighten.
Soft, unstructured caps can sag under needle movement. Clip the fabric sides to the black posts for added support.
This keeps low‑profile caps smooth during stitching, similar to how magnetic hoops for embroidery machines hold fabric consistently in flat work.

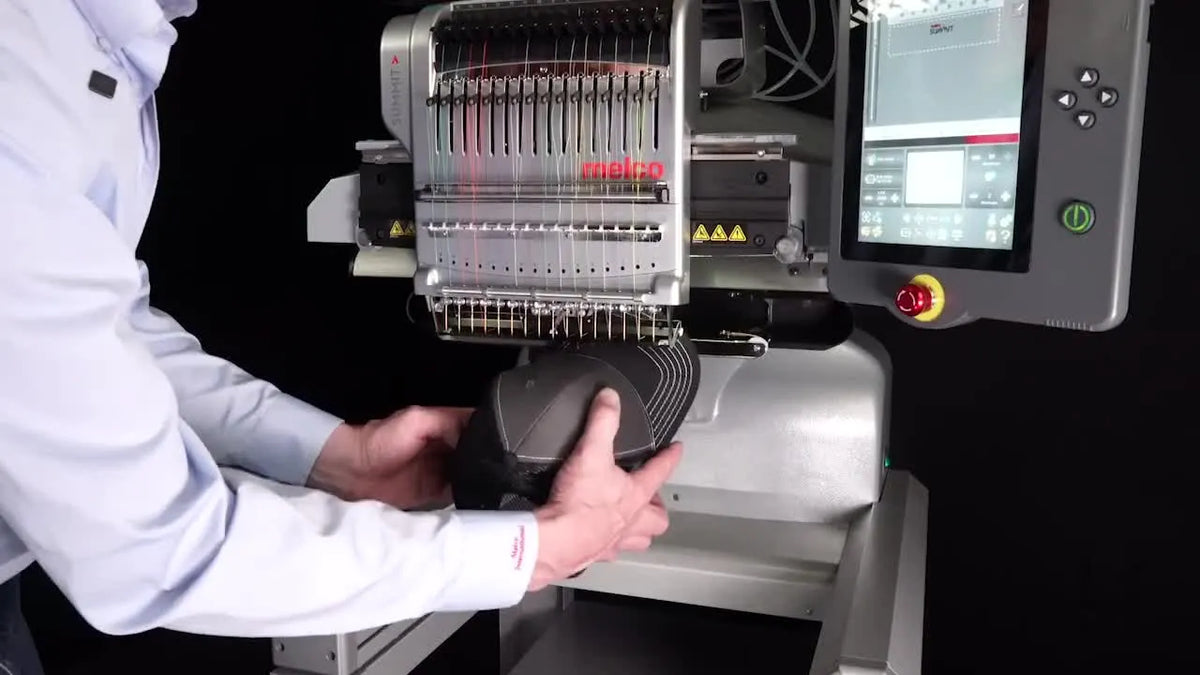

Machine Conversion: Installing the Cap Driver
Switching from flat to cap embroidery means swapping components on your SUMMIT. Remove both hoop arms, then the hook guard at the base of the cylinder arm. Slide the lower support arm into its slot until it stops; finger‑tighten the screws.
Next, reinstall the hook guard, apply a hint of machine oil to the support arm’s top, and mount the main cap driver. Align its holes with the pantograph slots and bolt it securely.
This setup primes your machine to handle the curvature of hats. Operators using systems like magnetic embroidery hoops for melco will recognize the similar snug‑fit principle—ensuring stability translates directly to quality stitches.
Fine-Tuning: Adjusting the Cap Driver Height
Height dictates how smoothly caps run through the stitch zone. Insert two business cards between the cap driver bottom and the needle plate. The cards should slide with slight friction—neither too tight nor too loose.
If the gap needs adjustment, lightly loosen the four screws using a 4 mm Allen driver, press down on the driver, and re‑tighten in a cross pattern.
Small improvements here prevent needle deflection and uneven tension.
Using measurement aids doesn’t have to be high‑tech; some professionals compare feel with magnetic embroidery frames to ensure consistent spacing.
From the comments: One viewer wondered if a special gauge is required or if credit cards suffice. The video demonstrates business cards as the recommended thickness guide—simple and effective.
Software Setup: Configuring the Melco SUMMIT OS
Once the hardware is ready, power up and head to the hoop selection screen. Tap the cap driver icon, clear filters, and choose the Wide Angle Cap Frame (WACF). Confirm the safety prompt reminding you to keep the area clear.
Key Sew Settings for Hats
Start at 900 stitches per minute for safe, steady motion. Flip the design 180° so it embroiders upright when the bill faces away.
Next, adjust Acti‑Feed: preset value 7 for average caps, 10–12 for thick ones, or 5–6 for thin materials.
Fine control ensures balanced thread feed similar to pressure balancing on magnetic hoop for brother embroidery machine units.
Lastly, set the presser foot about three or four clicks from the base.
Thicker fabrics call for higher clearance; thinner fabrics need it closer.
Perfect Placement: Centering Your Embroidery Design
Accurate alignment separates good from great work. Begin at the transform menu, select “Hoop Center,” and use arrow keys to nudge the design about half an inch toward the bill for ideal positioning.
Stand in front and ensure the active needle lines precisely with the cap seam.
Jog left or right until the laser or needle sits spot‑on.
Then perform a trace—the SUMMIT moves through the design area, outlining its boundaries.
If any part overlaps seams or runs too low, adjust and trace again. This simple step mirrors confirm checks used with barudan magnetic embroidery frame users to maintain placement thread‑wide.
From the Comments: What Viewers Loved and Asked
Viewers appreciated Melco’s concise delivery. One pointed out how approachable the explanation felt compared to lengthier training. Even operators of other models picked up confidence for trying hat embroidery. Another comment praised the clarity of the visuals—proof that short, well‑paced instruction wins.
The lingering question was about gauges for the driver height. As covered earlier, everyday business cards are perfect—no special tool purchase required.
For those comparing systems like brother cap hoop or tajima hat hoops, the alignment and clearance logic remain universal: stable mount, correct gap, centered needle.
Finishing Notes
Running hats successfully on the Melco SUMMIT means balancing mechanical setup with digital precision. Once your gauge, driver, and design settings sync, the results are crisp and repeatable across batches.
If this guide inspired you, explore more Melco resources online or cross‑train on compatible gear like magnetic hoops for melco—you’ll recognize these structure essentials across brand lines.
symbolizes the moment everything comes together: the hooped cap, the SUMMIT arm, and your creative imprint ready to sew true.
