Master Jacket Embroidery: A Guide to MaggieFrame & HoopTalent

· EmbroideryHoop
Master Jacket Embroidery: A Guide to MaggieFrame & HoopTalent
Discover how to perfectly hoop thick jackets using MaggieFrame’s magnetic hoop. This article breaks down both manual and station-assisted methods from the official MaggieFrame demonstration video. Whether you’re a single-project crafter or producing embroidery in bulk, you’ll learn the essentials of secure placement, repeatable results, and efficient mass production setup.

Educational commentary only. This page is an educational study note and commentary on the original creator’s work. All rights remain with the original creator; no re-upload or redistribution.

Please watch the original video on the creator’s channel and subscribe to support more tutorials—your one click helps fund clearer step-by-step demos, better camera angles, and real-world tests. Tap the Subscribe button below to cheer them on.

If you are the creator and would like us to adjust, add sources, or remove any part of this summary, please reach out via the site’s contact form and we’ll respond promptly.

Table of Contents
  1. Introduction: Hooping Thick Jackets with the MaggieFrame
  2. Method 1: The Quick & Easy Manual Hooping Process
  3. Method 2: Level Up with the HoopTalent Station for Mass Production
  4. Calibrating Your HoopTalent Station: A One-Time Setup
  5. The 20-Second Hoop: High-Speed Hooping in Action
  6. Why Combine MaggieFrame and HoopTalent?

Introduction: Hooping Thick Jackets with the MaggieFrame

The MaggieFrame magnetic hoop allows embroiderers to handle bulky materials without wrestling with traditional hoops. For the featured sample, Jason used the 7.7 x 12.5 inch MaggieFrame, perfectly sized for a jacket design smaller than 5.7 x 10.5 inches.

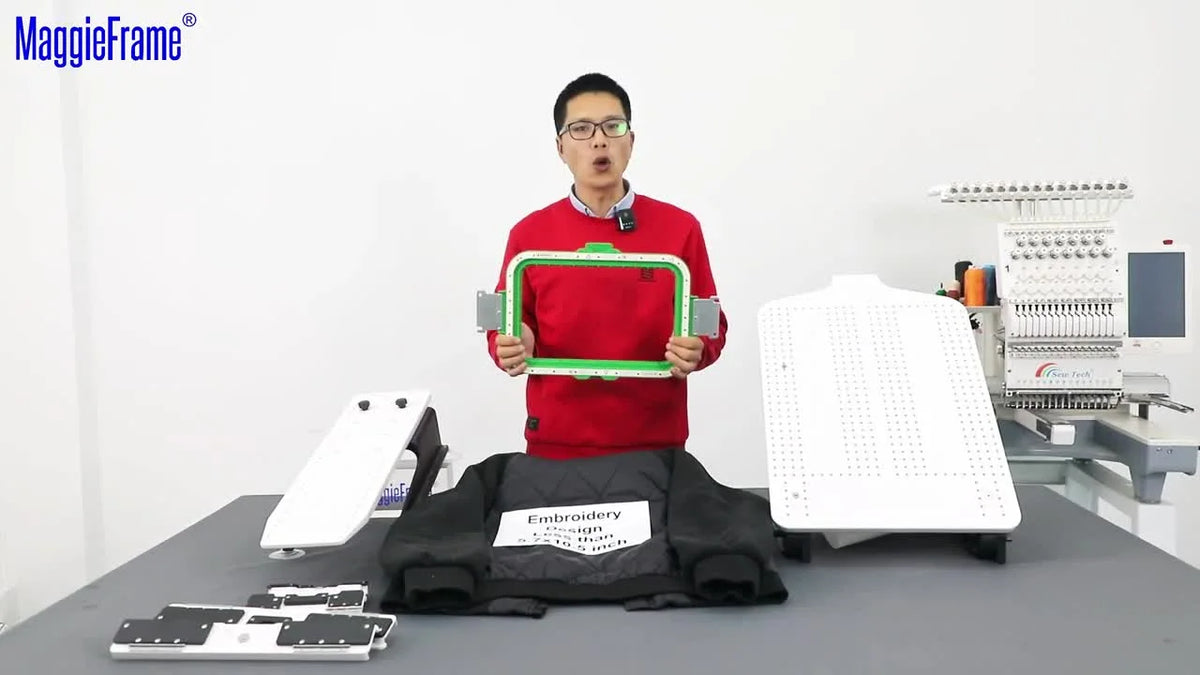

Presenter holding up a green and silver 7.7x12.5 inch MaggieFrame magnetic hoop in front of an embroidery setup.
The presenter introduces the 7.7 by 12.5 inch MaggieFrame, the tool used for hooping the thick jacket.

When evaluating your own setup, you might also compare options across brands. For example, baby lock magnetic embroidery hoops are in demand for hobbyists using different embroidery systems, although Jason’s video specifically focused only on MaggieFrame.

Method 1: The Quick & Easy Manual Hooping Process

Step-by-Step Guide to Hooping on a Tabletop The manual method requires only a flat table and your MaggieFrame. The bottom hoop is slipped inside the jacket, under the pre-marked embroidery design area, while the backing sits between fabric and frame. Trace with your fingers to confirm placement.

Placing the bottom section of the magnetic hoop inside a black jacket.
The hooping process begins by positioning the bottom frame inside the jacket, directly under the embroidery area.
Hands carefully feeling the outline of the hidden bottom hoop through the jacket fabric.
To ensure correct placement, the user traces the inner edge of the bottom frame to center it with the design template.

Next, the top frame is lowered onto the jacket. Strong magnets snap into place, locking fabric and stabilizer snugly together.

The top frame of the magnetic hoop snapping into place on the jacket.
The top frame, with its powerful magnets, is aligned and dropped onto the bottom frame, securely clamping the garment.
✅ After clamping, always inspect the backing—wrinkles compromise design smoothness.
Checking the tautness of the white backing material on the underside of the hooped jacket.
After hooping, the backing is inspected to confirm it is clamped tightly and smoothly.

From other systems, users note that alternatives like magnetic embroidery hoops for brother offer similar snapping convenience on their respective machines, but again, Jason’s demonstration is limited to MaggieFrame.

Method 2: Level Up with the HoopTalent Station for Mass Production

If hooping one jacket feels straightforward but fifty feel daunting, that’s where HoopTalent enters. This main station lets you calibrate once for the first garment, then repeat with speed and precision.

Overhead view of the hooped jacket next to the white, gridded HoopTalent main station.
The HoopTalent station is introduced as a tool for achieving consistent placement in mass production.
💡 Mark the design area with a paper template for easy visualization before starting.

Much like magnetic hoops for bai embroidery machine, HoopTalent’s universal fixture approach provides rigidity and repeatable placement on each hooping run.

Calibrating Your HoopTalent Station: A One-Time Setup

Positioning the First Jacket to Find Your Marks You’ll begin calibration by aligning the jacket on the main station with the template visible. The bottom MaggieFrame is then positioned under the design, and its edge relative to a grid marking (like the letter K) is noted.

Pointing to the letter 'K' on the HoopTalent grid, which aligns with the top edge of the bottom hoop.
Station calibration uses grid letters like 'K' to note the bottom frame position.

Setting the Upper and Lower Universal Fixtures Remove the jacket, then attach the lower fixture using positioning pins.

Attaching the lower universal fixture to the HoopTalent station.
The lower universal fixture is positioned using those reference points on the station.

Place the bottom frame back, and use it as a guide to mount the upper fixture.

Attaching the upper universal fixture to the HoopTalent station.
The upper universal fixture is installed based on the bottom frame alignment.

Once both fixtures are in place, the bottom frame sits perfectly aligned every time.

The HoopTalent station with all fixtures installed, holding the bottom MaggieFrame in place.
The fully configured HoopTalent station with fixtures holding the bottom MaggieFrame.

This calibration step is especially reminiscent of other fixture-based systems such as hooping station for brother embroidery machine, but here the demonstration showcases MaggieFrame and HoopTalent exclusively.

The 20-Second Hoop: High-Speed Hooping in Action

The Workflow for Subsequent Garments After calibration, hooping becomes lightning-fast. Place the bottom frame, lay the backing, and secure it with the fixture’s plates.

Using the black plates on the upper fixture to hold down the white embroidery backing.
The backing laid on the bottom frame is secured by the fixture's plates.
Aligning the shoulders of the black jacket on the HoopTalent station.
Jackets are aligned on the station using consistent reference points like collar edges.

Next, align the garment on the station’s references, snap down the top frame, and lift off the hooped piece ready for stitching.

Snapping the top magnetic frame onto the jacket positioned on the HoopTalent station.
Clamping the top frame secures both garment and backing in seconds.
Lifting the fully hooped jacket off the HoopTalent main station.
A completed hooped jacket ready for the embroidery machine.

From the comments: While the video comments provided no additional questions, viewers often ask in general: “How fast is it really?” From Jason’s demonstration, subsequent hoopings took about 20 seconds per jacket.

A demonstration of the mass production workflow using the HoopTalent station.
With HoopTalent, hooping subsequent jackets can be done in 20 seconds.

For mass production, Jason’s method delivers serious efficiency—on par with productivity-focused accessories some may know from other maker brands, like magnetic embroidery hoops for brother pr1055x.

⚠️ Always keep fingers clear when the magnets snap together. The video even shows a caution label for good reason.

Why Combine MaggieFrame and HoopTalent?

Pairing strong magnetic power with a structured station means less manual fiddling, less guesswork, and consistent embroidery placement jacket after jacket.

Final shot of a jacket being hooped on the HoopTalent station, emphasizing speed and simplicity.
The MaggieFrame and HoopTalent combination makes repeated hooping fast and simple.

This synergy echoes the balance embroidery shops seek when considering both bernina magnetic hoops and other fixture-based solutions. The MaggieFrame + HoopTalent combo simply demonstrates that when magnets meet measurement control, speed and accuracy co-exist.

Final thought: Whether you’re an embroidery hobbyist experimenting with one-off projects or a shop running dozens of jackets a day, mastering hooping techniques is essential. With MaggieFrame’s magnetic clamp strength and HoopTalent’s repeatable grid system, you’ll stitch confidently and scale effortlessly.
