Effortless Hooping: How to Embroider Thick Jackets with Magnetic Hoops

· EmbroideryHoop
Effortless Hooping: How to Embroider Thick Jackets with Magnetic Hoops

Thick quilted jackets can be intimidating to hoop, but with the right tools it becomes quick and repeatable. This guide, adapted from MaggieFrame’s tutorial, shows both a manual method and a HoopTalent station method to streamline jacket embroidery.

Educational commentary only. This page is an educational study note and commentary on the original creator’s work. All rights remain with the original creator; no re-upload or redistribution.

Please watch the original video on the creator’s channel and subscribe to support more tutorials—your one click helps fund clearer step-by-step demos, better camera angles, and real-world tests. Tap the Subscribe button below to cheer them on.

If you are the creator and would like us to adjust, add sources, or remove any part of this summary, please reach out via the site’s contact form and we’ll respond promptly.

Table of Contents
  1. Why Choose a Magnetic Hoop for Thick Garments?
  2. Method 1: The Simple Manual Hooping Technique
  3. Method 2: Scaling Up with the HoopTalent Hooping Station
  4. Step-by-Step: Setting Up Your HoopTalent for Repeatability
  5. The 20-Second Hoop: The Fast Production Process
  6. Ensuring a Perfect Result
  7. From the Comments: Choosing Your Hooping Station Wisely

Why Choose a Magnetic Hoop for Thick Garments?

Magnetic hoops make all the difference when working with bulky layers

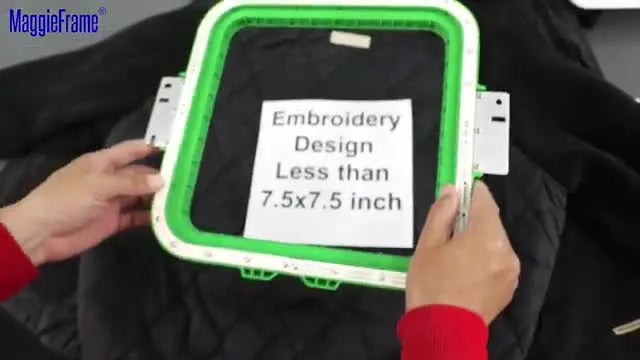

Presenter holding up a 9.5x9.5 inch green MaggieFrame magnetic hoop.
The presenter introduces the 9.5x9.5 inch MaggieFrame, selected because it's larger than the planned design.

. The 9.5x9.5 inch hoop was chosen because the design was smaller than 7.5x7.5 inches

A thick black quilted jacket with a white paper template on the back.
A paper template shows the embroidery design area and guides hoop placement.

. Using a hoop larger than the design area guarantees stability without squeezing too tightly.

In comparison to traditional screw hoops, these frames clamp down instantly and evenly. They prevent fabric drag, wrinkles, and preserve the jacket’s padded structure. For anyone looking into magnetic embroidery hoops for brother, the concept is similar: strong magnets reduce hoop burn and speed up setup.

Understanding Hoop Size vs. Design Size

Always allow at least an inch clearance around the design. If your embroidery pattern measures 7x7 inches, a 9.5x9.5 hoop ensures space for backing and consistent hold. This principle supports both MaggieFrame hoops and other systems like baby lock magnetic embroidery hoops.

The Power of Magnetic Clamping

The two-piece frame works because its magnets snap with force to secure the garment layers

Hands separating the green bottom frame from the main magnetic hoop assembly.
The bottom frame is removed to begin the manual hooping process.

. A painless click replaces tedious tightening. For multi-layer jackets, this strength maintains alignment through the whole stitch-out

Hands pressing on the jacket to feel the position of the bottom frame underneath.
Feeling the inner edge of the bottom frame helps confirm centering.

. It echoes what many users praise when using magnetic embroidery hoops for brother—quick clamp, solid grip, and less hand strain.

Method 1: The Simple Manual Hooping Technique

Working on a table, the presenter first separates the bottom frame

. Backing is inserted between fabric and hoop base. Feeling the edges of the frame guides proper centering

. Finally, magnets from the top frame snap into place

The top magnetic frame is lowered and snaps powerfully onto the jacket, connecting with the bottom frame.
Magnets snap the top and bottom frames together, clamping the jacket securely.

.

A glance at the back shows taut stabilizer—no wrinkles

The back of the hooped jacket, showing the white backing paper held tightly and smoothly by the frame.
The backing is held taut and smooth, preparing for embroidery.

. This ensures the embroidery won’t pucker during stitching.

✅ Always press along the backing to confirm it’s smooth.

For those comparing with different machine brands, the ease is similar to placing magnetic hoops for bai embroidery machine, where repeatability matters most.

Method 2: Scaling Up with the HoopTalent Hooping Station

When embroidering a single jacket, manual hooping suffices. But for 50 jackets, speed and precision matter. The HoopTalent main station introduces fixture placement for consistent setups

An overhead view of the white HoopTalent main station with its grid of holes.
The HoopTalent main station provides consistent garment alignment.

.

The presenter positions the first jacket and aligns its paper-marked design

A jacket is laid flat on the HoopTalent station for initial positioning.
The first jacket is positioned on the station for fixture setup.

. With grid coordinates like “upper of the J,” fixture positioning locks into place

A finger points to the grid on the HoopTalent station where the edge of the bottom frame sits.
Grid markings (like 'upper of the J') help lock fixture placement.

. Fixtures hold the hoop base exactly where needed [FIG-10, FIG-11].

Embroidery professionals who know embroidery hooping station will recognize the logic: one careful setup enables dozens of replicas at industrial pace.

Step-by-Step: Setting Up Your HoopTalent for Repeatability

- Position the first jacket: Use a paper guide to align perfectly

. - Use the grid: Note the bottom frame’s edge mark and align fixtures

.

  • Install the universal fixtures: Lower and upper fixtures secure the hoop base [FIG-10, FIG-11].

With setup done, every jacket following lands in the same place. Precision is locked.

💡 Jot down grid notes so future runs repeat without recalibration.

The 20-Second Hoop: The Fast Production Process

Once fixtures are locked, production flows predictably:

1. Place stabilizer backing, secured by fixture clamps

A sheet of white backing paper is laid across the station, held by the fixtures.
Backing paper is positioned and held for consistent hooping.

. 2. Lay the jacket, aligned to prior reference points

A jacket being carefully placed onto the HoopTalent station in a consistent position.
Each jacket must be aligned to the same reference points.

. 3. Snap the top frame onto bottom

The green top frame is pressed onto the jacket, clamping it to the bottom frame held by the station.
The clamping action ensures repeatable, fast hooping.

. 4. Lift a finished, hooped jacket ready for embroidery

A completely hooped jacket is lifted off the HoopTalent station.
A perfectly hooped jacket is lifted and ready for embroidery.

.

Time taken? About 20 seconds each after setup. Comparable to methods seen with magnetic embroidery hoop for janome mb4—fast, confident clamping.

Ensuring a Perfect Result

Each jacket’s back shows a smooth, taut backing paper—no puckers

. Smooth setup equals smooth stitch-outs. The final check is essential before loading onto the embroidery machine.

Remember, whether you’re using MaggieFrame or exploring magnetic embroidery hoops for bernina, the key is consistent pressure and alignment.

From the Comments: Choosing Your Hooping Station Wisely

One viewer asked which station fits a 9.5x9.5 MaggieFrame. MaggieFrame clarified: the HoopTalent Master Hooping Station kit (for Ricoma) matches this size. They also offer kits sized for 5.1x5.1 and 6.9x6.9 frames.

⚠️ Always confirm station-to-hoop compatibility before purchase to avoid misfits.

Those researching other ecosystems—like magnetic hoops for tajima embroidery machines—face the same necessity: verify size matches between hoop, fixture, and machine.

Conclusion

Magnetic hoops ease hooping thick jackets. The HoopTalent station makes production lines viable, reducing hooping from minutes to seconds. Whether outfitting a team’s uniforms or fulfilling custom orders, consistency translates into professionalism.

The lesson: Set once, hoop fast, embroider beautifully.

Presenter stands behind the table with the hooped jacket and the hooping station, giving a summary.
The presenter summarizes the efficiency of the HoopTalent system.
